ASTM DIN Stainless Steel Welded Tube Oil And Gas Plants Boiler Steel Pipe
Price:
Negotiation
MOQ:
100kgs
Delivery Time:
3-10days
Brand:
YH
Product Description
ASTM DIN Stainless Steel Welded Tube for Oil and Gas Plants
Product Specifications
| Attribute | Value |
|---|---|
| Material | Stainless Steel 304, 304L, 310S, 316L |
| OD | 3mm-3000mm |
| WT | 0.5mm-50mm |
| Length | 5800mm, 6000mm, 12000mm or as requested |
| Surface | Polished 180G/240G/320G/600G |
| Price Terms | EXW, FOB, CIF and so on |
| Package | Packed in sea-worth bundles or Plywood cases |
| Standard | ASTM, DIN, JIS, ISO |
| Applications | Chemical, Petroleum, Power, Gas, Metallurgy, Shipbuilding, Construction |
| Surface Finish | Bright Annealed, Pickled, Polished, Sand Blasted |
| Corrosion Resistance | Acid Resistance, Alkali Resistance, Oxidation Resistance, Seawater Corrosion Resistance |
Product Description
Stainless steel welded tubes are durable, corrosion-resistant pipes manufactured by welding stainless steel strips or coils. These tubes are widely used in industries such as construction, automotive, chemical processing, and food production due to their strength, versatility, and affordability.
Available in various grades like 304 and 316, they offer excellent resistance to rust, heat, and chemicals, ensuring long-term performance in demanding environments. The welding process ensures consistent quality and precise dimensions, making them suitable for structural, mechanical, and fluid transportation applications.
With a smooth surface finish and customizable sizes, stainless steel welded tubes are a cost-effective solution for both industrial and decorative purposes, combining functionality with reliability.
ASTM A312/A778(B36.19) Pipe Sizes
| NPS | INCH | O.D | 5S | 10S | 40S |
|---|---|---|---|---|---|
| 8 | 1/4'' | 13.72 | 1.24 | 1.65 | 2.24 |
| 10 | 3/8'' | 17.15 | 1.24 | 1.65 | 2.31 |
| 15 | 1/2'' | 21.34 | 1.65 | 2.11 | 2.77 |
| 20 | 3/4'' | 26.67 | 1.65 | 2.11 | 2.87 |
| 25 | 1'' | 33.4 | 1.65 | 2.77 | 3.38 |
| 32 | 1-1/4'' | 42.16 | 1.65 | 2.77 | 3.56 |
| 40 | 1-1/2'' | 48.26 | 1.65 | 2.77 | 3.68 |
| 50 | 2'' | 60.33 | 1.65 | 2.77 | 3.91 |
| 65 | 2-1/2'' | 73.03 | 2.11 | 3.05 | 5.16 |
| 80 | 3'' | 88.9 | 2.11 | 3.05 | 5.49 |
| 90 | 3-1/2'' | 101.6 | 2.11 | 3.05 | 5.74 |
| 100 | 4'' | 114.3 | 2.11 | 3.05 | 6.02 |
| 125 | 5'' | 141.3 | 2.77 | 3.4 | 6.55 |
| 150 | 6'' | 168.28 | 2.77 | 3.4 | 7.11 |
| 200 | 8'' | 219.08 | 2.77 | 3.76 | 8.18 |
| 250 | 10'' | 273.05 | 3.4 | 4.19 | 9.27 |
| 300 | 12'' | 323.85 | 3.96 | 4.57 | 9.53 |
JIS G3459 Pipe Sizes
极 <极td>2.8| NPS | INCH | O.D | 5S | 10S | 20S | 40S |
|---|---|---|---|---|---|---|
| 8 | 1/4'' | 13.8 | 1.2 | 1.65 | 2.0 | 2.2 |
| 10 | 3/8'' | 17.3 | 1.2 | 1.65 | 2.0 | 2.3 |
| 15 | 1/2'' | 21.7 | 1.65 | 2.1 | 2.5 | 2.8 |
| 20 | 3/4'' | 27.2 | 1.65 | 2.1 | 2.5 | 2.9 |
| 25 | 1'' | 34 | 1.65 | 2.8 | 3.0 | 3.4 |
| 32 | 1-1/4'' | 42.7 | 1.65 | 2.8 | 3.0 | 3.6 |
| 40 | 1-1/2'' | 48.6 | 1.65 | 2.8 | 3.0 | 3.7 |
| 50 | 2'' | 60.5 | 1.65 | 2.8 | 3.5 | 3.9 |
| 65 | 2-1/2'' | 76.3 | 2.1 | 3.0 | 3.5 | 5.2 |
| 80 | 3'' | 89.1 | 2.1 | 3.0 | 4.0 | 5.5 |
| 90 | 3-1/2'' | 101.6 | 2.1 | 3.0 | 4.0 | 5.7 |
| 100 | 4'' | 114.3 | 2.1 | 3.0 | 4.0 | 6.0 |
| 125 | 5'' | 139.8 | 3.4 | 5.0 | 6.6 | |
| 150 | 6'' | 165.2 | 2.8 | 3.4 | 5.0 | 7.1 |
| 200 | 8'' | 216.3 | 2.8 | 4.0 | 6.5 | 8.2 |
| 250 | 10'' | 267.4 | 3.4 | 4.0 | 6.5 | 9.3 |
| 300 | 12'' | 318.5 | 3.4 | 4.5 | 6.5 | 10.3 |

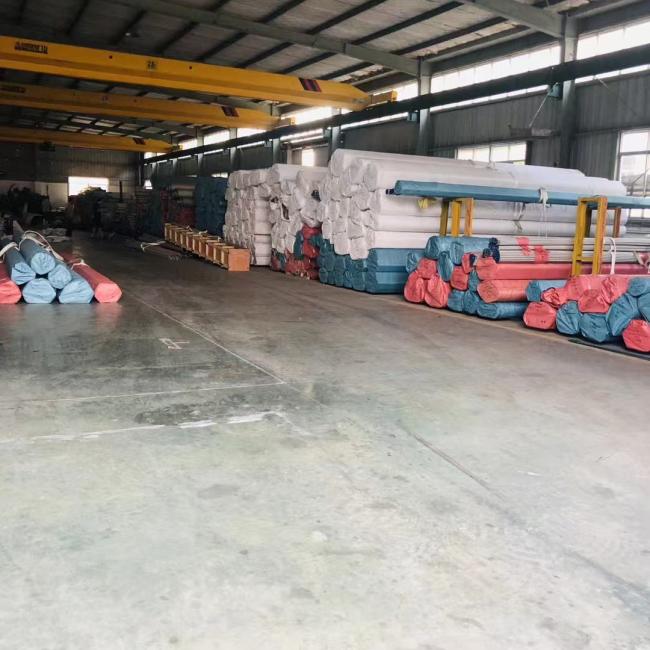

Product Images
Frequently Asked Questions
Q1: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, depending on quantity.
Q2: How is the quality about the products?
A: Quality is our priority. We pay close attention to quality checks. Every product is fully assembled and carefully tested before packing for shipment.
Q3: What is your minimum order quantity?
A: The MOQ varies by product. Please refer to the product detail page or contact us with the product link for specific information.
Q4: Can I customize products?
A: Yes. Please provide your specific customization requirements and we will respond promptly.
Q5: How is the quality?
A: Quality is our top priority. We implement strict quality control measures, with each product fully assembled and tested before shipment.
