312 ASTM Stainless Steel Pipe TP316 Stainless Steel Seamless Pipe
| Attribute | Value |
|---|---|
| Material | 304,304L,316,316L,321,310S |
| OD | 3mm-3000mm |
| WT | 0.5mm-50mm |
| Length | 5800mm,6000mm,12000mm or as requested |
| Surface | Polished 180G/240G/320G/600G |
| Price Terms | EXW,FOB,CIF and so on |

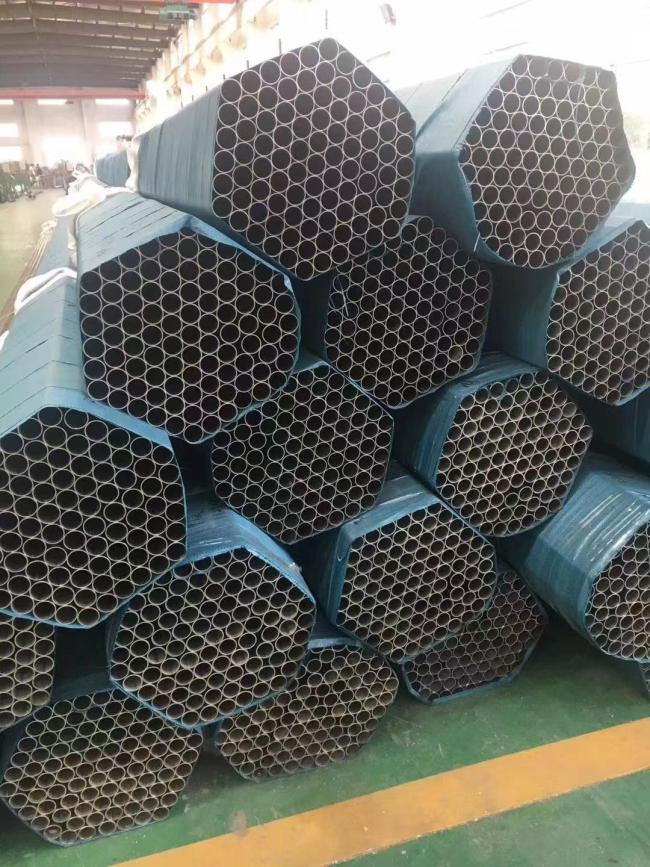

| Package | Packed in sea-worth bundles or Plywood cases |
| Standard | ASTM, DIN, JIS, ISO |
| Applications | Industrial Piping, Construction Structures, Food Processing Equipment |
| Brand Name | Yuhao |
| Corrosion Resistance | Acid Resistance, Alkali Resistance, Oxidation Resistance, Seawater Corrosion Resistance |
ASTM 312 TP316, TP316L DIN, JIS, ISO Stainless Steel Seamless Pipe Tube For Power Generation
Stainless steel welded tubes are versatile and cost-effective pipes manufactured by welding rolled stainless steel strips or plates. They are available in various grades, such as 304 and 316, offering excellent corrosion resistance, strength, and durability. These tubes are widely used in industries like construction, automotive, chemical processing, and food production due to their adaptability and affordability. The welding process ensures precise dimensions and smooth surfaces, making them suitable for structural, mechanical, and decorative applications. They meet international standards like ASTM A312 and ASME, ensuring quality and reliability. Stainless steel welded tubes are easy to fabricate, maintain, and install, providing a practical solution for diverse industrial and commercial needs.
| NPS | INCH | O.D | 5S | 10S | 40S |
|---|---|---|---|---|---|
| 8 | 1/4'' | 13.72 | 1.24 | 1.65 | 2.24 |
| 10 | 3/8'' | 17.15 | 1.24 | 1.65 | 2.31 |
| 15 | 1/2'' | 21.34 | 1.65 | 2.11 | 2.77 |
| 20 | 3/4'' | 26.67 | 1.65 | 2.11 | 2.87 |
| 25 | 1'' | 33.4 | 1.65 | 2.77 | 3.38 |
| 32 | 1-1/4'' | 42.16 | 1.65 | 2.77 | 3.56 |
| 40 | 1-1/2'' | 48.26 | 1.65 | 2.77 | 3.68 |
| 50 | 2'' | 60.33 | 1.65 | 2.77 | 3.91 |
| 65 | 2-1/2'' | 73.03 | 2.11 | 3.05 | 5.16 |
| 80 | 3'' | 88.9 | 2.11 | 3.05 | 5.49 |
| 90 | 3-1/2'' | 101.6 | 2.11 | 3.05 | 5.74 |
| 100 | 4'' | 114.3 | 2.11 | 3.05 | 6.02 |
| 125 | 5'' | 141.3 | 2.77 | 3.4 | 6.55 |
| 150 | 6'' | 168.28 | 2.77 | 3.4 | 7.11 |
| 200 | 8'' | 219.08 | 2.77 | 3.76 | 8.18 |
| 250 | 10'' | 273.05 | 3.4 | 4.19 | 9.27 |
| 300 | 12'' | 323.85 | 3.96 | 4.57 | 9.53 |
| NPS | INCH | O.D | 5S | 10S | 20S | 40S |
|---|---|---|---|---|---|---|
| 8 | 1/4'' | 13.8 | 1.2 | 1.65 | 2.0 | 2.2 |
| 10 | 3/8'' | 17.3 | 1.2 | 1.65 | 2.0 | 2.3 |
| 15 | 1/2'' | 21.7 | 1.65 | 2.1 | 2.5 | 2.8 |
| 20 | 3/4'' | 27.2 | 1.65 | 2.1 | 2.5 | 2.9 |
| 25 | 1'' | 34 | 1.65 | 2.8 | 3.0 | 3.4 |
| 32 | 1-1/4'' | 42.7 | 1.65 | 2.8 | 3.0 | 3.6 |
| 40 | 1-1/2'' | 48.6 | 1.65 | 2.8 | 3.0 | 3.7 |
| 50 | 2'' | 60.5 | 1.65 | 2.8 | 3.5 | 3.9 |
| 65 | 2-1/2'' | 76.3 | 2.1 | 3.0 | 3.5 | 5.2 |
| 80 | 3'' | 89.1 | 2.1 | 3.0 | 4.0 | 5.5 |
| 90 | 3-1/2'' | 101.6 | 2.1 | 3.0 | 4.0 | 5.7 |
| 100 | 4'' | 114.3 | 2.1 | 3.0 | 4.0 | 6.0 |
| 125 | 5'' | 139.8 | 2.8 | 3.4 | 5.0 | 6.6 |
| 150 | 6'' | 165.2 | 2.8 | 3.4 | 5.0 | 7.1 |
| 200 | 8'' | 216.3 | 2.8 | 4.0 | 6.5 | 8.2 |
| 250 | 10'' | 267.4 | 3.4 | 4.0 | 6.5 | 9.3 |
| 300 | 12'' | 318.5 | 3.4 | 4.5 | 6.5 | 10.3 |
A: We can supply the kinds of metal raw materials and products, such as pipes, pipe fittings, flanges, coil, sheet, round bar and so on.
A: We are not only manufacturer but also a trading company, we have more than 12 years export experience.
A: Our factory is located in Wenzhou City, Zhejiang Province, China.
A: Contact us with your detailed inquiry, you will be replied within 6 hours.
A: 1-7 days for small order. 10-20 days for big order.
