Industrial Stainless Steel Mini Ball Valve Double Female Thread BSPP NPT
Price:
Negotiation
MOQ:
100kgs
Delivery Time:
3-10days
Brand:
YUHAO
Product Description
Stainless Steel Mini Ball Valve Double Female Thread BSPP NPT
Product Specifications
| Attribute | Value |
|---|---|
| Standard | ASTM, JIS, GB, AISI, DIN, BS, EN |
| Bonnet Style | Threaded or Welded |
| Applications | Industrial, Chemical, Oil & Gas, Water Treatment, etc. |
| Thread | BSPT, BSPP, NPT, PS, DIN |
| Port size | 1/8"-46" |
| Pressure | High/Medium/Low Pressure |
| Color | Silver, chrome, white, Customer's Request, Grey |
| Temperature of media | Medium Temperature, Normal Temperature, High Temperature |
| Certificate | CE ISO9001 ISO14001 ISO45001 |
Customizable Durable Stainless Steel Valve
Yuhao introduces our high-performance stainless steel mini double female thread ball valves, designed for space-constrained installations without compromising flow control reliability. These compact yet robust valves are ideal for instrumentation, laboratory equipment, compact piping systems, and OEM applications where small footprint and precise shutoff are critical.
Key Features & Benefits
- Ultra-Compact Design - 30% smaller than standard valves, perfect for tight installations
- Double Female Threads (BSPP/NPT) - Enables direct inline connection without additional fittings
- Precision-Machined 316L Stainless Steel - Corrosion-resistant for harsh chemical and high-purity applications
- Full-Port or Reduced-Port Options - Maintains optimal flow or saves space as needed
- Low-Torque Operation - Smooth 90° quarter-turn handle for easy manual control
- Bubble-Tight Shutoff - PTFE seats ensure zero leakage (tested to 10^-6 mbar*L/s)
Why Choose Yuhao?
- Swiss CNC Precision Machining - Ensures ±0.01mm tolerance for perfect sealing
- Electropolished & Passivated - Ultra-smooth surfaces (Ra ≤ 0.4μm) for cleanability and corrosion resistance
- Extensive Size Range - 1/8" to 1/2" (DN6 to DN15) with custom threading options
- Rapid Prototyping & Customization - Modify port sizes, handles, or materials in 72 hours
- 100% Pressure & Leak Testing - Every valve undergoes helium leak testing before shipment
- OEM & Bulk Order Support - Private labeling and custom packaging available
Yuhao's mini double female thread ball valves combine German engineering precision with cost-effective manufacturing, making them the go-to choice for compact flow control.
Product Information
| Place of Origin | Zhejiang, China |
| Thread | BSPT, BSPP, NPT, PS, DIN |
| Material | 316, 316L, 304, 304L, Carbon |
| Application | Oil, Water, Industrial, Chemical |
| Brand | Yuhao |
| Size | Customized Size |
| Certificate | CE ISO9001 ISO14001 ISO45001 |
| Package | Standard sea worth bundles, Standard Plywood cases |
Technical Specifications
PN1.6MPa Main Connection Dimensions and Weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 280 | 320 | 360 | 400 |
| H | 59 | 63 | 75 | 85 | 95 | 107 | 142 | 152 | 178 | 252 | 272 | 342 |
| W | 130 | 130 | 160 | 180 | 230 | 230 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
| Wt(Kg) | 2.5 | 3 | 5 | 6 | 7 | 10 | 15 | 19 | 33 | 58 | 93 | 160 |
PN2.5MPa Main Connection Dimensions and Weight
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 320 | 400 | 400 | 550 |
| H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 |
| W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
| Wt(Kg) | 2.5 | 3 | 5 | 6 | 7.5 | 10 | 15 | 20 | 33 | 60 | 93 | 175 |

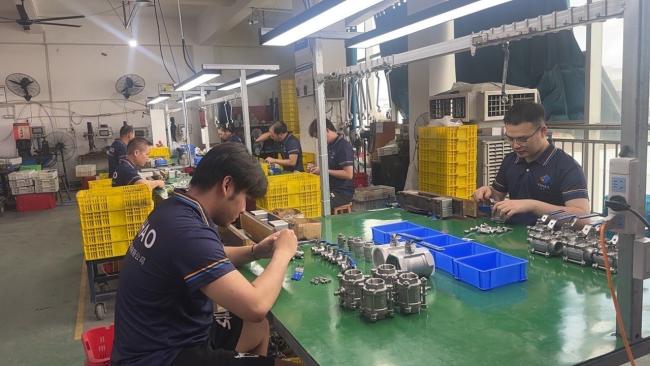

Factory Images
Frequently Asked Questions
Q1: Which payment terms you can accept?
A: We can accept TT, LC, DP, DA, Western Union or Negotiation.
Q2: How do you ensure product quality?
A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.
Q3: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q5: How is the quality about the products?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
