192*192mm
Full Color P3 P3.076 P3.91 LED Module Indoor Stage LED Screen Advertising Display
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Brighter
Product Description

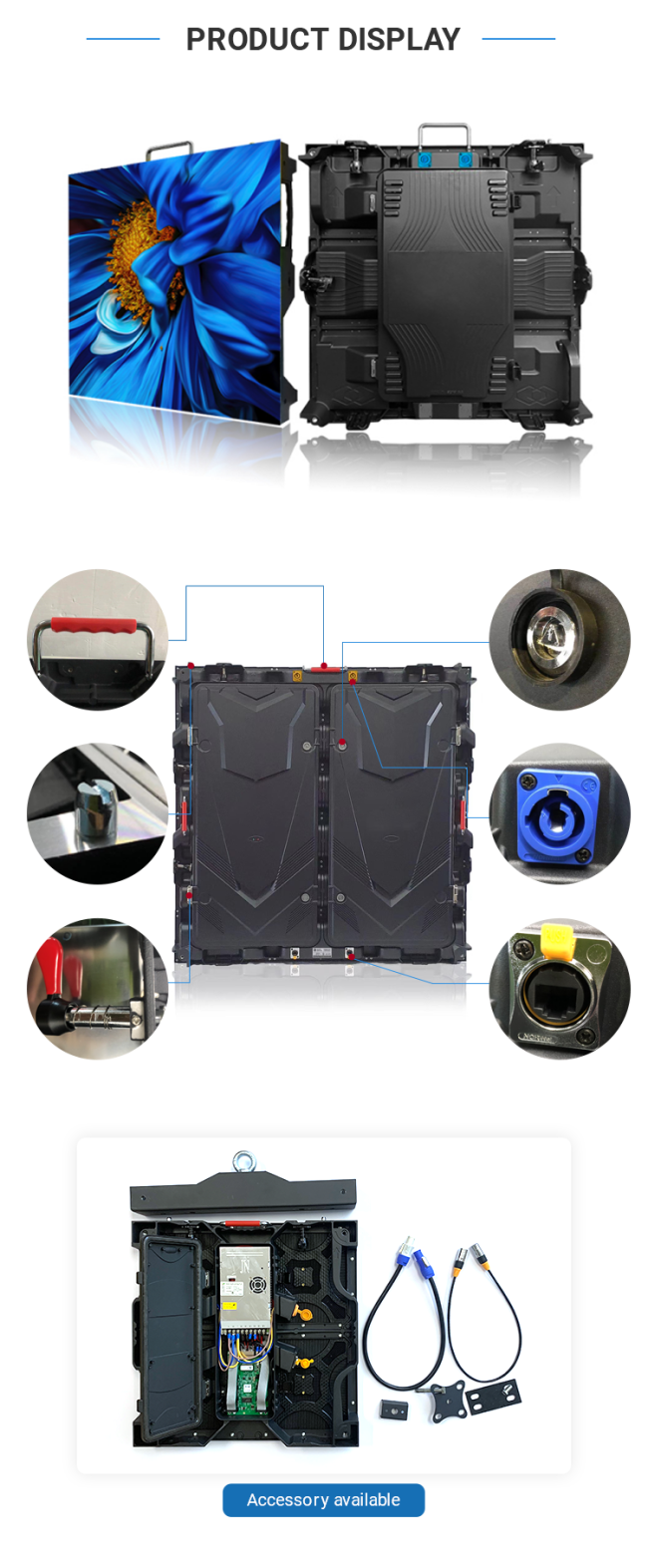

Product Display

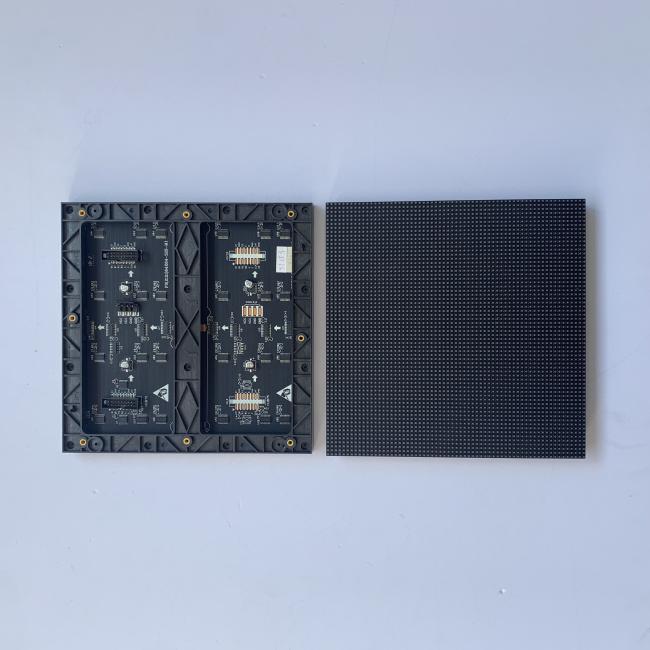

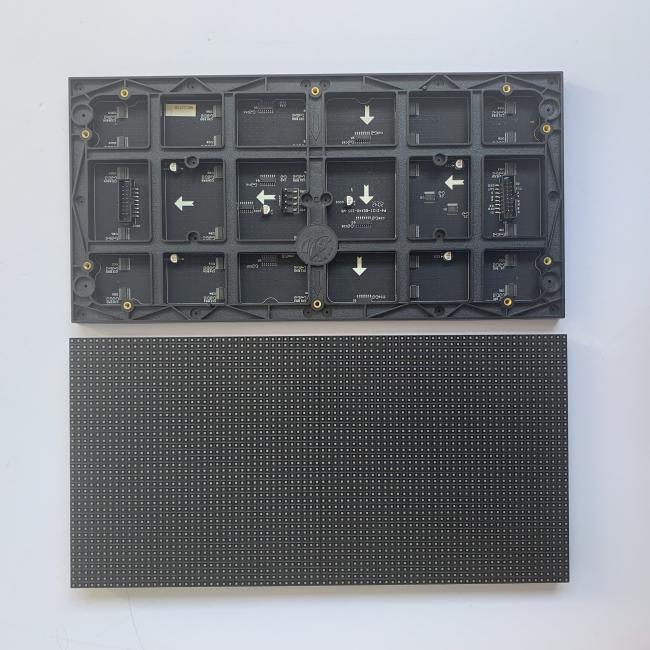

Module Details
P3
P3.076
320*160mm
P3.91
250*250mm

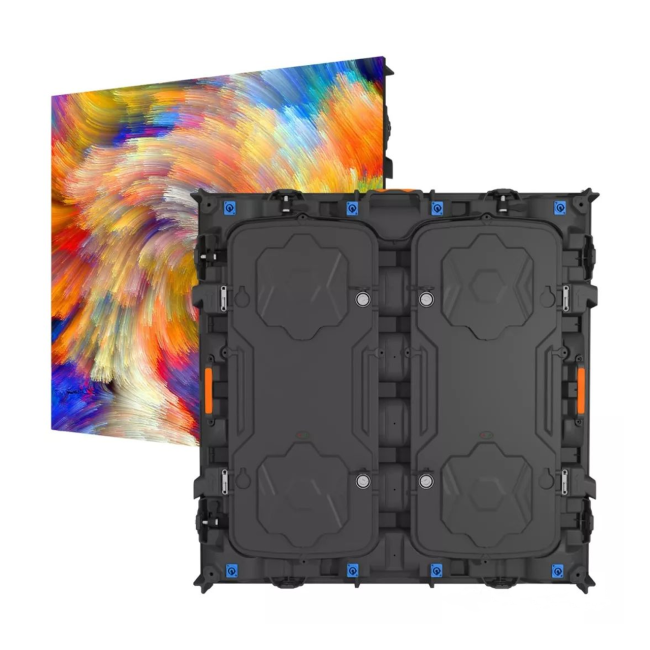

Cabinet Detail
576*576mm
(P3)
960*960mm
(P3.076)
500*500mm
(P3.91)
Product Parameter
Item | P3 | P3.076 | P3.91 | ||
Module | Module Dimension | 192*192mm | 320*160mm | 250*250mm | |
Pixel Pitch | 3mm | 3.076mm | 3.91mm | ||
Pixel density | 111111dots/m² | 105688dots/m² | 65410dots/m² | ||
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | ||
Pixel resolution | 64*64dots | 104*52dots | 64*64dots | ||
Average power | 19W | 36W | 33W | ||
Panel weight | 0.3KG | 0.6KG | 0.5KG | ||
Cabinet | Cabinet dimension | 576*576mm | 960*960mm | 500*500mm | |
Quantity of module | 9PCS | 18PCS | 4PCS | ||
Best viewing angle | 140/120 | Horizontal>140Vertical>120 | Horizontal>170Vertical>120 | ||
Best viewing distance | 5-28M | 3-30M | 4-20M | ||
Technical signal index | Refresh frequency | 1920HZ/S | 1920HZ/S | 1920HZ/S | |
Brightness | 700-900mcd/m² | 600-800mcd/m² | 700-900mcd/m² | ||
Life span | 100000Hours | 50000Hours | 100000Hours | ||
Communication distance | <100M | <100M | <100M | ||
Packaging & Delivery
Company Profile
19 Years Factory Outlet of SMD LED Modules: Indoor P0.9—P10 & Outdoor P2.5—P10
Quality stability: Use the most advanced imported YAMAHA 40R high-speed SMT machine to make SMT into LED modules
Capacity stability: 40KK Patch Count Daily Output, SMT Machine*50, Solder Paste Printing*15, Reflow Welding Machine*10
Full quality inspection: 2000+㎡ Aging Area. 72h SMD Lamp Aging Test → 8h Led Module Aging Test → Pre-Installed Led Screen 72h Aging Test. Waterproof test & Vibration test
Capacity stability: 40KK Patch Count Daily Output, SMT Machine*50, Solder Paste Printing*15, Reflow Welding Machine*10
Full quality inspection: 2000+㎡ Aging Area. 72h SMD Lamp Aging Test → 8h Led Module Aging Test → Pre-Installed Led Screen 72h Aging Test. Waterproof test & Vibration test
FAQ
Q1:Are you a manufacturer or trading company?
Q2:How does your factory do regarding quality control?
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. We can send an engineer team to the country of the customer to instruct the installation.
Q6:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc. ONE-STOP Supply of Ground Support and Truss.
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 19 years. Welcome to visit our factory.
Q2:How does your factory do regarding quality control?
A2:Quality is priority. Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication
.
Q3:What is your MOQ?
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the size and quantities of your order.
A4:We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. We can send an engineer team to the country of the customer to instruct the installation.
Q6:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc. ONE-STOP Supply of Ground Support and Truss.
