Product Description
110 kV MICROFOCUS X-RAY SOURCEL9631
APPLICATIONS
Non-destructive Inspection
In-line X-ray Inspection
X-ray CT
[Applicable Objects]
Electronic component
Printed circuit board
Plastic component
Metal component
Food
Beverage
Medicine
Bioproduct
FEATURES
High Output:800μA(50 W)
It allows continuous maximum output.
High Stability
Serial Port Control(RS-232C)
One package of a sealed type X-ray tube,a high-voltage powersupply and a control function.
Easy Handling
Fully operable from an external PC.
GENERAL
| Parameter | Description/Value | Unit | |
| Input Voltage (AC) | 100 to 240(100V/200V Automatic Selection), 50 Hz/60 Hz |
V | |
| Power Consumption(Max.) | 240 | W | |
| Operating Ambient Temperature | +10 to+40 | ℃ | |
| Storage Temperature | 0 to +50 | ℃ | |
| Operating and Storage Humidity | Below 85(No Condensation) | % | |
| Weight | Approx.10 | kg | |
| Conformance Standards | CE | EMC:IEC61326-1,Group1,Class A] Safety:IEC61010-1 |
一 |
| Operation | Continuous | 一 | |
| High Voltage Power Supply | Built-in | 一 | |
X-RAY TUBE
| Parameter | Description/Value | Unit | |
| X-ray Tube | Sealed Type | 一 | |
| X-ray Tube Cooling Method | Convection Cooling | 一 | |
| X-ray Tube Window Material/Thickness | Beryllium/200 | μm | |
| Target Material | Tungsten | 一 | |
| Tube Voltage Operational Range | 40 to 110 | kV | |

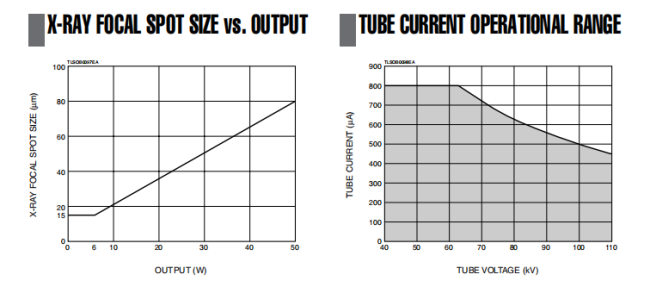

| Tube Current Operational Range① | 10 to 800 (50 W Max.) | μA | |
| Maximum Output | 50 | W | |
| X-ray Focal Spot Size | 15 to 80 | μm | |
| X-ray Beam Angle(Max.) | 62 | degrees | |
| Focus to Object Distance(FOD) | 16.8 | mm | |
X-RAY CONTROL PART
| Parameter | Description | Unit | |
| Function | Tube Voltage and Tube Current Preset/Auto Warm-up | 一 | |
| Protection | Interlock | 一 | |
| External Control | RS-232C | 一 | |
| Applicable OS | Windows⑧2000 Professional,XP Professional | 一 | |
| Computer Operating Conditions | CPU:Intel Pentium or Higher,Memory:64 MB or More | 一 | |
