Reliable Intelligent High-Magnification Microfocus X-Ray Inspection System

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 7 work days

Brand: WELLMAN

Product Description

Intelligent Microfocus X-Ray 3D/CT Inspection System

Product Advantages

Japan Hamamatsu closed X-ray tube (10,000+ hrs maintenance-free) + 5” HD FPD (±45° tilt/360° rotation)
Auto navigation window + speed-adjustable 5-axis linkage for automated batch inspection
400*400mm worktable with 10KG load capacity
2-hour quick training, easy operation & fast defect detection
≤1μSv/h radiation leakage + multiple safety interlocks (compliant with international standards)

Hardware Specifications

X-ray Source

Flat Panel Detector

Table Specifications

Equipment Specifications

Safety Features

Radiation Leakage	No leakage, international standard: ≤1μSv/h
Lead Glass Observation Window	Transparent lead glass window shields radiation to observe internal status
Window and Back Door Safety Interlock	X-ray tube powers off immediately when window or door is opened
Electromagnetic Safety Switch	Locks when X-ray is on, preventing window access
Emergency Stop	Located next to operation position for immediate power cutoff
Tube Protection	Software prevents leaving without closing X-ray tube

Software Capabilities

Core Functions

Operation Method	Keyboard and mouse complete all operations
X-ray Tube Control	Mouse-click activation with real-time voltage/current display and adjustment
Status Bar	Displays interlock, pre-heat, and X-ray status with red/green indicators
Image Effect Adjustment	Brightness, contrast and gain adjustable for optimal results
Product List	Save and recall inspection parameters for efficiency
Navigation Window	Click-to-move table positioning with camera guidance
Motion Axis Status	Real-time coordinate display
Inspection Results	Display measurement results including voids rate, distance, area with NG/OK indicators
Speed Control	Adjustable movement speed for each axis (slow, normal, fast)

Voids Rate Measurement

Automatic Calculation	Rectangle-based solder ball edge detection with voids measurement
Parameters Adjustment	Adjust grayscale threshold, pixel, contrast, and size filtering parameters
Manual Void Addition	Draw polygons or free figures to calculate as voids
Parameter Saving	Save and recall measurement parameters for consistent product inspection

Additional Measurement Functions

Distance	Measure vertical distance from point to baseline
Distance Rate	Calculate percentage ratio for through-hole soldering rate measurement
Angle	Measure angle between rays
Radius	Three-point circle determination for round component measurement
Perimeter	Square component measurement for length, width and area

Automatic Inspection Modes

Manual Setting	Set custom inspection points with automatic inspection and image saving
Array	Automatic inspection of regular grid patterns with row/column specification
Automatic Identification	Feature-based automatic position identification and measurement

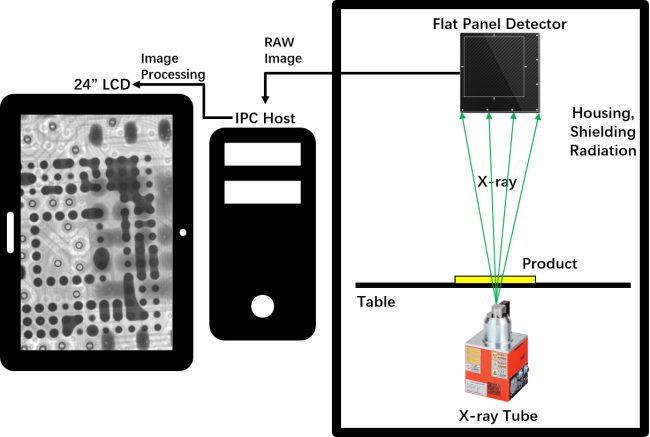

Working Principle
