X-ray Component Counter with Automatic Scanning and Label Printing
Price:
Negotiable
MOQ:
1
Delivery Time:
7 work days
Brand:
WELLMAN
Product Description
X-ray Component Counter XC01
Advanced automated counting system with scanning, label printing, and management system integration capabilities.
Working Principle
Advantages
- 80kV Closed X-Ray Tube & 17" Super HD FPD (Long-life & Maintenance-free)
- Ultrafast Counting (4×7"/1×15" Reel in <10s), Supports Max 17" Reel/Tray
- Free Permanent AI Deep Learning Algorithm Update, MES/ERP/WMS Integration
- Auto Code Scanning & Counting with Label Printing, Auto Reel Mode Detection
- Work Order Management with Count Record Query & Statistics
Equipment Specifications
| X-ray Source | ||
|---|---|---|
| Type | Integrated, microfocus | |
| Max Tube Voltage | 80kV | |
| Max Tube Current | 700μA | |
| Focal Spot Size | 30μm | |
| Flat Panel Detector | ||
| Type | Super definition digital FPD | |
| Effective Area | 430mm * 430mm | |
| Pixel Size | 139μm | |
| Resolution | 3072 * 3072 | |
| Reel/Tray Counting | ||
| Max Size | 17" (430mm) | |
| Max Thickness | 88mm | |
| Min Parts Size | 01005 | |
| Speed | 7-10 seconds | |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% | |
| Equipment | ||
| Dimensions | 1000mm (L) * 1300mm (W) * 1820mm (H) | |
| Weight | 580kg | |
| Power Supply | AC110-220V 50/60HZ | |
| Max Power | 800W | |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD | |
| Displayer | 24" HDMI LCD | |
| Additional Functions | ||
| Auto Code Scanning | Barcode and QR code | |
| Label Printing | Automatic label printing when reel is removed | |
| Counting Record | Inquiry by time range and work order number | |
| Management System Connection | MES, ERP, WMS, etc. | |
| Mode Switching | Automatic single/multi reel detection | |
| Work Order No. | Work order number recording supported | |
| Safety Features | ||
| Radiation Leakage | No leakage, international standard: ≤1μSv/h | |
| Back Door Safety Interlock | Automatic X-ray power off when door opens | |
| Anti-pinch | Safety light curtain with immediate stop function | |
| Emergency Stop | Front-mounted emergency stop button | |
AI Deep Learning Algorithm
Our counting software uses advanced AI deep learning algorithms for automatic component identification (no manual binding) and continuously learns from component data including:
- Aspect ratio analysis
- Component corner angle detection
- Component image deformation analysis
- Slope analysis between components from inside to outside
Speed and Accuracy Performance
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
Cloud Database Integration
All Wellman X-ray counters connect to cloud database, auto upload data/images and download latest updates. Engineering team optimizes algorithms via collected data & updates database for all customers regularly.

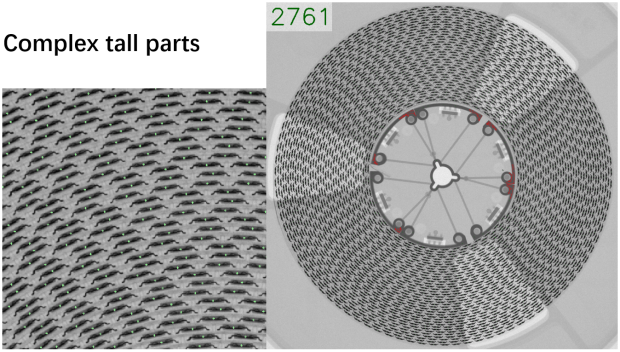

Sample Images
