professional X Ray Counter for auto counting of SMD electronic components with various packages

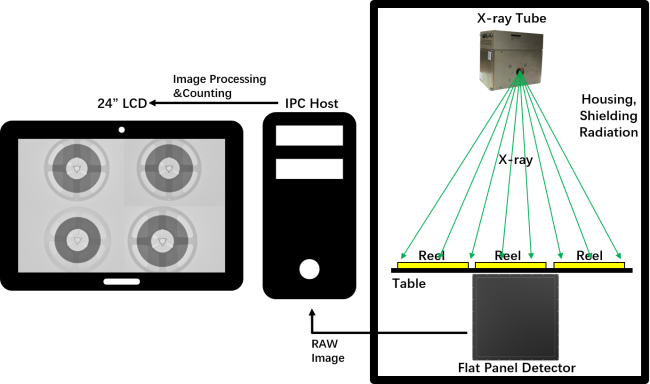

- Closed type X-ray tube for the longest lifetime and maintenance-free operation
- Integration with MES, ERP, WMS, and other management systems
- Simultaneous automatic code scanning and label printing
- 17" Super definition digital flat panel detector (FPD)
- Counting four 7" reels or one 15" reel in 7-10 seconds
- No need to switch single/multi reel counting mode
Equipment Parameters
|
X-ray source |
Type |
Integrated, microfocus |
|
Max tube voltage |
80kV |
|
|
Max tube current |
700μA |
|
|
Focal spot size |
30μm |
|
|
Flat panel detector |
Type |
Super definition digital FPD |
|
Effective area |
430mm*430mm |
|
|
Pixel size |
139μm |
|
|
Resolution |
3072*3072 |
|
|
Reel/tray counting |
Max size |
17” (430mm) |
|
Max thickness |
88mm |
|
|
Min parts size |
01005 |
|
|
Speed |
7-10s |
|
|
Accuracy |
01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
|
|
Equipment |
Dimensions |
1000mm (L) * 1300mm (W) * 1820mm (H) |
|
Weight |
580kg |
|
|
Power supply |
AC110-220V 50/60HZ |
|
|
Max power |
800W |
|
|
Industrial PC |
I7 CPU, 16G RAM, 256G SSD+4T HDD |
|
|
Displayer |
24” HDMI LCD |
|
|
Other functions |
Auto code scanning |
Barcode and QR code. |
|
Label printing |
print the corresponding label when user takes out a reel. |
|
|
Counting record |
Inquiry by time range, work order number. |
|
|
Management system connection |
MES, ERP, WMS etc. |
|
|
Mode switching |
No need to switch single/multi reel mode |
|
|
Work order no. |
Support work order number recording |
|
|
Safety |
Radiation leakage |
No leakage, international standard: ≤1μSv/h. |
|
Back door safety interlock |
Once users open the back door, X-ray tube will power off immediately. When the back door is open, users can’t turn on the X-ray. |
|
|
Anti-pinch |
Safety light curtain covers the whole drawer, the drawer will stop immediately when something enters. |
|
|
Emergency stop |
In front of the operation position, press to power off. |
| Reel Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
FAQ :
Q: Can your X-ray counter finish counting all reels within 7–10 seconds? Does the counting speed depend on the component quantity?
A: Yes, the counting speed is related to the quantity of components.
