L3AL-1201 450mm Automotive Stamping Die Stage Die For Air Cooler
Price:
$10000-$50000
MOQ:
1 set
Delivery Time:
45days
Brand:
IDO
Product Description

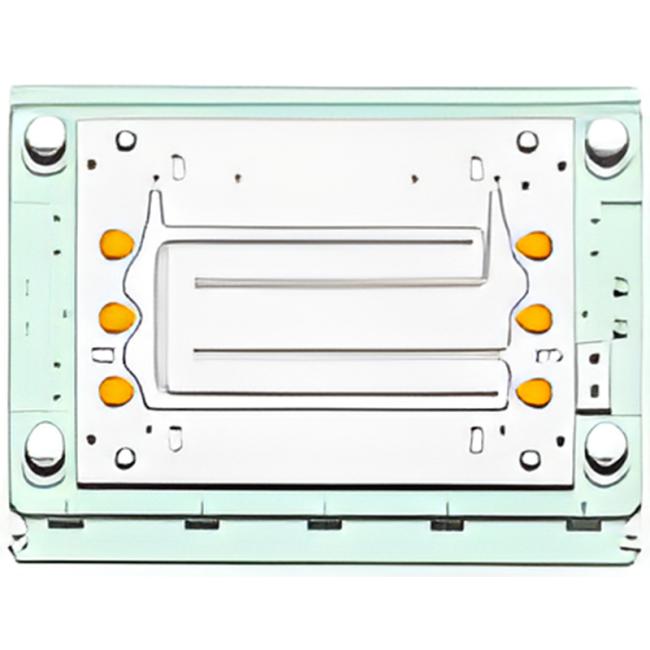

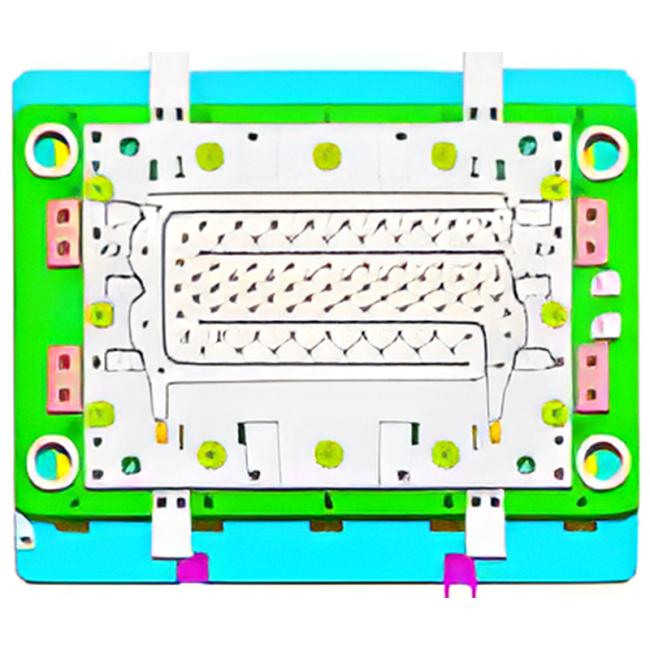

Automotive Stamping Die L3AL-1201 Stage Die for Air Cooler
Description:
Meet our Advanced Metal Stamping Stage Die, designed for fast, precise automotive air cooler fabrication. Built for durability and accuracy, it delivers consistent, high-quality components every time. Streamline your production, reduce waste, and boost efficiency with a die that combines speed, reliability, and precision.
Quick Detail:
- Cycle: 6 to 14 seconds, product-dependent.
- Quick repair within 30 minutes, rapid tool change within 15 minutes.
- Punch edges need sharpening every 300k–500k strokes.
- Software manages die movements.
- Cabinets require only one press table and set of tools, reducing equipment costs.
- Only sub-dies need dismantling during maintenance.
- Single tool set produces several models; changeovers are program-controlled.
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
