Refrigerator Door Panel Stamping Tooling Design 1500 X 1100 X 550mm Stamping Press Tool
Price:
$10000-$50000
MOQ:
1 set
Delivery Time:
45days
Brand:
IDO
Product Description

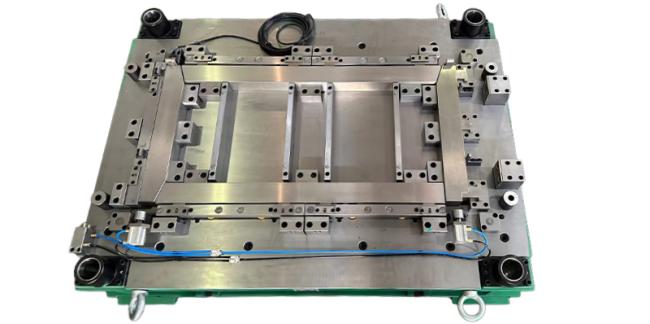

Steel Stamping Dies Stage Die for Refrigerator Door Panel Mould Size 1500×1100×550mm
Description:
The Steel Stamping Dies Stage Die for Refrigerator Door Panel with mould size 1500×1100×550mm is engineered for precise and efficient sheet metal forming. Made from high-quality steel, this stage die ensures consistent shaping of refrigerator door panel components, maintaining tight tolerances and reliable performance. Its robust design and ample mould size make it an ideal solution for appliance manufacturers seeking durable, high-precision, and high-efficiency stamping tooling.
Quick Detail:
- Cycle: 6–14 seconds, depending on product type.
- Repairs can be completed in 30 minutes; tools swapped in 15 minutes.
- Punch edges sharpened after 300,000–500,000 cycles.
- Die movement software-controlled.
- One press table and tool set sufficient for cabinet production, lowering costs.
- Only sub-dies removed for maintenance.
- Single tool set produces multiple models; program-controlled changeover.
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
