SUS430 Stage Tooling For Household Dishwasher Inner Door Metal Stamping Tooling

Price Negotiable

Price: $10000-$50000

MOQ: 1 set

Delivery Time: 45days

Brand: IDO

Product Description

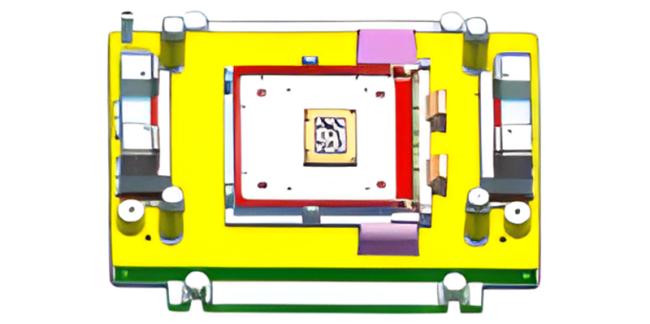

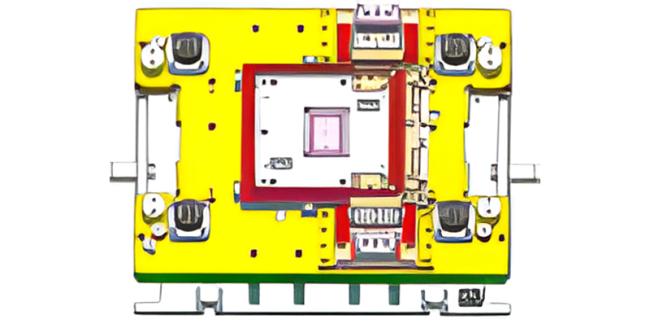

SUS430 Stage Tooling For Household Dishwasher Inner Door Metal Stamping Tooling

Description:

Crafted for precision and durability, our SUS430 Stage Tooling is the ideal solution for producing high-quality household dishwasher inner doors. This metal stamping tooling system is specifically engineered for SUS430 stainless steel, ensuring a perfect fit and finish for every part. It provides a reliable and efficient way to meet the demanding standards of modern appliance manufacturing.

Quick Detail:

Cycle: 6~14s (determined by product characteristics)
Punch edge sharpening: after 200,000~300,000 shots
Clearance: 10% of material thickness. The gap between the punch and die, impacting cut quality and burr.
Die Stiffness: Minimal deflection <0.01 mm. The die's resistance to bending or deformation under load.

Metal Stamping Tooling Released Commercial Components Brands:

Item		Option 1	Option 2	Option 3
1	Standard piercing punches (with or without ejectors)	MISUMI	DAYTON	FIBRO
2	Standard piercing matrix	MISUMI	DAYTON	FIBRO
3	Guide elements columns, bushes, die sets (precision plates)	MISUMI	FIBRO	DANLY
4	Sliding wear plates (bronze plus graphite)	MISUMI	FIBRO	DAYTON
5	Cam mechanisms	MISUMI	FIBRO	OMCR
6	Coil steel springs	MISUMI	FIBRO	SPECIAL SPRINGS
7	Nitrogen gas springs	MISUMI	KALLER	SPECIAL SPRINGS
8	Screws,fastener, pins, stripper bolts,	MISUMI	FIBRO	DAYTON
9	Spring guide pins, pilots, ejectors ,stock lifters, pad retainer, pilot shedders	MISUMI	FIBRO	DAYTON
10	Rotary bending mechanisms	MISUMI	DAYTON
11	Lifting elements / rotary eyebolts	MISUMI	FIBRO	DAYTON
12	Pneumatic valves and electrovalves	MISUMI	FESTO	SCHMALZ
13	Scraps pneumatic evacuator/shakers	MISUMI	FIBRO
14	Electrical connectors	HARTING	HARTING	ILME
15	Tool Steel	ASSAB	ASSAB	GROEDITZ
16	PVD Coating	OERLIKON	OERLIKON
17	Tool Bronze	AMPCO	AMPCO
