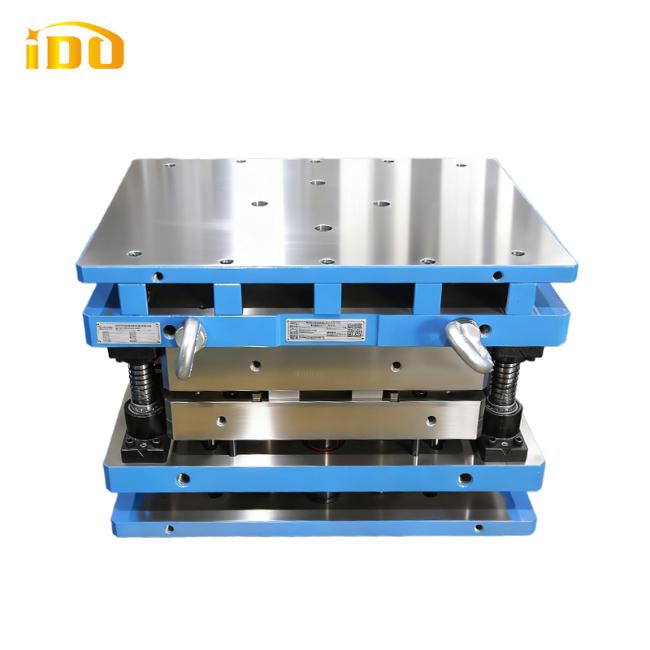

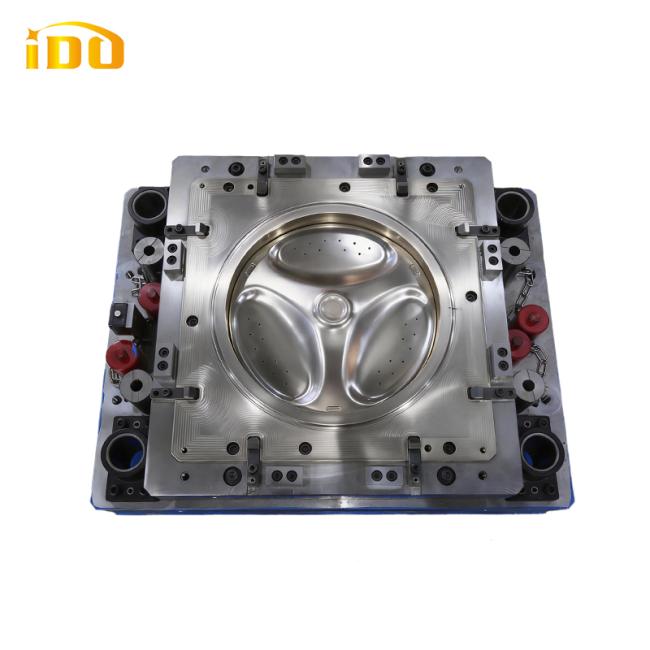

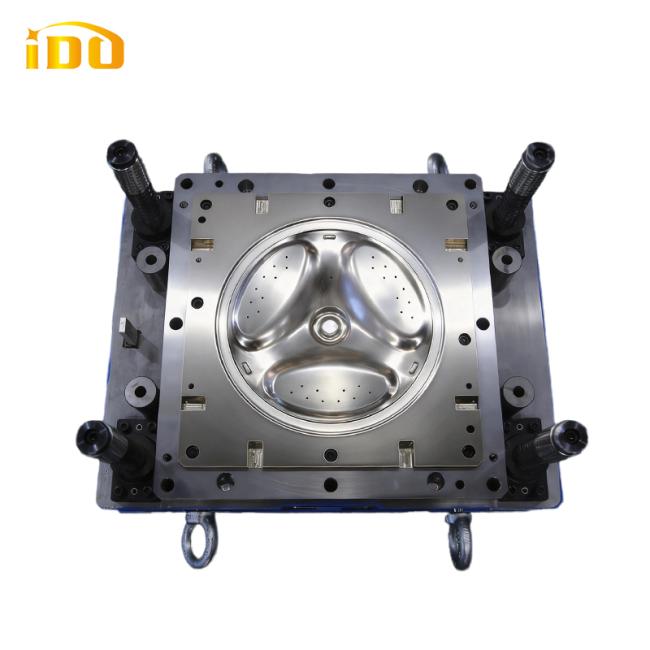

1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
1kg Wall Mounted Dryer Inner Drum Rear Cover Condenser Tray Stamping Mold
Description:
This stamping mold is specially designed for producing the rear cover condenser tray of a 1kg wall-mounted dryer inner drum. The mold is engineered to meet the requirements of high precision, stable forming quality, and long service life, making it suitable for mass production of household appliance components.
The mold structure is optimized based on the material characteristics and forming complexity of the condenser tray. It ensures accurate dimensional control, smooth surface quality, and consistent product performance throughout long-term operation. High-strength mold steel and precision machining processes are applied to enhance wear resistance and overall durability.
This stamping mold supports efficient production with reliable repeatability, helping manufacturers improve productivity, reduce scrap rates, and maintain stable product quality. It is widely used in the manufacturing of wall-mounted dryers and related household appliance components, and can be customized according to different product drawings, materials, and production requirements.
Quick Detail:
- Product Type: Stamping Mold
- Application: Wall Mounted Dryer Inner Drum Rear Cover
- Product Name: Condenser Tray
- Capacity Specification: 1kg
- Mold Structure: Progressive
- Mold Material: High Quality Tool Steel
- Processing Method: Precision CNC Machining
- Customization: Available According to Drawings
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
