Stainless Steel Drum Stamping Die For Household Washing Machines
Stainless Steel Drum Stamping Die for Household Washing Machines
Description

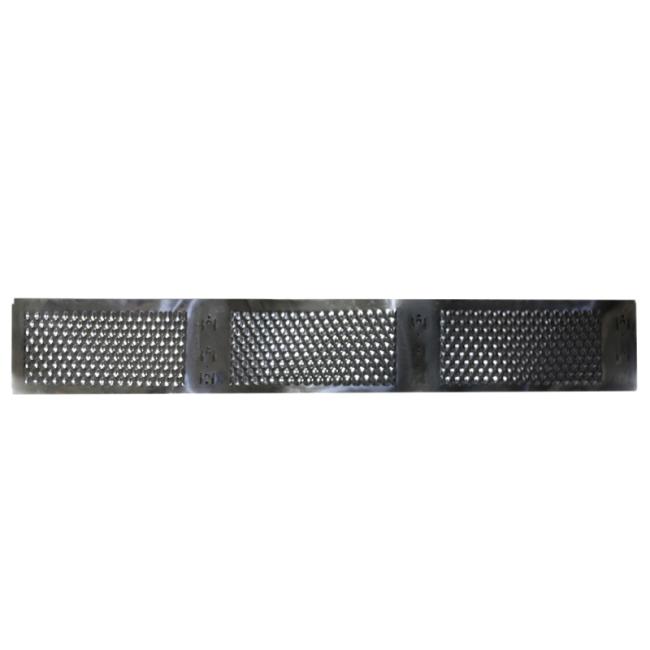

The Washing Machine Inner Drum Stamping Die is designed for high-precision stamping and forming of inner drums used in household washing machines.
With a robust die structure and strict dimensional control, the die ensures uniform hole distribution, accurate drum geometry, and smooth surface quality, meeting both performance and durability requirements of washing machine inner drums.
Manufactured from high-grade die steel and processed with advanced machining technology, this stamping die delivers stable operation, high efficiency, and long service life. It is suitable for continuous and mass production, and can be customized according to different drum sizes, capacities, hole patterns, and material specifications, making it a reliable solution for washing machine manufacturers and appliance OEMs.
Quick Detail
- Product Name: Washing Machine Inner Drum Stamping Die
- Die Type: Stamping Die
- Application: Washing Machine Inner Drum Production
- Suitable Materials: Stainless Steel (e.g. SUS430 / SUS304)
- Process: Stamping, Forming
- Feature: High precision, uniform hole distribution, long die life
- Production Mode: Continuous / Mass Production
- Customization: Supported (drum size, capacity, hole pattern)
- OEM & ODM: Available
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
