Custom Sheet Metal Stamping Mould For Household Washing Machine Drums
Custom Sheet Metal Stamping Mould for Household Washing Machine Drums
Description

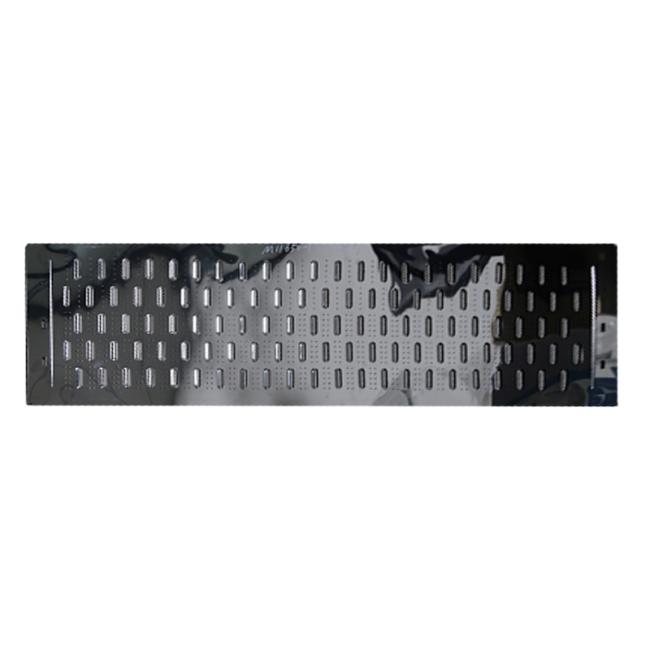

The Washing Machine Inner Drum Sheet Metal Stamping Mould is engineered for precision stamping and forming of inner drums used in household washing machines.
With a reinforced mould structure and optimized stamping design, the mould ensures uniform hole distribution, accurate cylindrical geometry, and stable forming quality, which are critical for washing performance and long-term durability.
Manufactured using high-grade mould steel and advanced machining processes, this stamping mould offers reliable operation, high production efficiency, and extended service life. It is suitable for continuous and large-volume production, and can be customized according to different drum diameters, capacities, hole patterns, and material specifications, making it a dependable solution for appliance manufacturers and OEM customers.
Quick Detail
- Product Name: Washing Machine Inner Drum Sheet Metal Stamping Mould
- Mould Category: Stamping Mould
- Application Area: Washing Machine Inner Drum Fabrication
- Process Method: Sheet Metal Stamping & Forming
- Compatible Materials: Stainless Steel Sheet (e.g. SUS430 / SUS304)
- Key Advantages: High precision forming, consistent hole layout, long mould service life
- Production Type: Continuous / High-volume Production
- Customization Service: Available
Specifications:
|
Mould/Tool Type
|
Stage tool/mould/die
|
|
Production Application
|
White Household Appliances (washing machine, refrigerator, dryer, dishwasher…), Automobile (heat shield, radiator...)
|
|
Metal Sheet Material
|
Stainless Steel (304, 430...), PCM, VCM, SGCC, Aluminum (6061, 6063,7075...), Copper
|
|
Mould Material
|
V8, ASP60, P20, ASSAB88, XW-42, SKD11, DC53, CR12MOV, AMPCO25
|
|
Mould Base
|
SD, LKM Standard, HASCO Standard, Self-made, etc.
|
|
Tolerance
|
±0.003mm
|
|
Hardness
|
Upon request
|
|
Surface Treatment
|
TiCN/ Polishing/ mirror polishing/ plating/ heat treatment / Deep Cooling or according to your parts
|
|
Precision Machining
|
CNC/ surface grinding machine/ wire cutting/ EDM
|
|
Measuring Instruments
|
CMM/ Profile projector/ electronic height gauge/ spectrum analyzer / caliper/ microscope/ micrometer, etc.
|
|
Drawing Format
|
DWG, STP, STEP, X_T, IGES, PDF
|
|
Design Software
|
Auto CAD, UG, Solidworks
|
|
Trade terms
|
FOB (Shanghai)
|
|
Mould Lead time
|
Generally 6~8 weeks (as per actual situation)
|
