High Precision Stamping Die for Automotive IGBT Sheet Metal Components

Description

This high precision stamping die is specially designed for sheet metal components used in automotive IGBT (Insulated Gate Bipolar Transistor) modules.
The die ensures accurate stamping quality, stable dimensional control and consistent part performance, meeting the strict reliability and precision requirements of automotive power electronics.

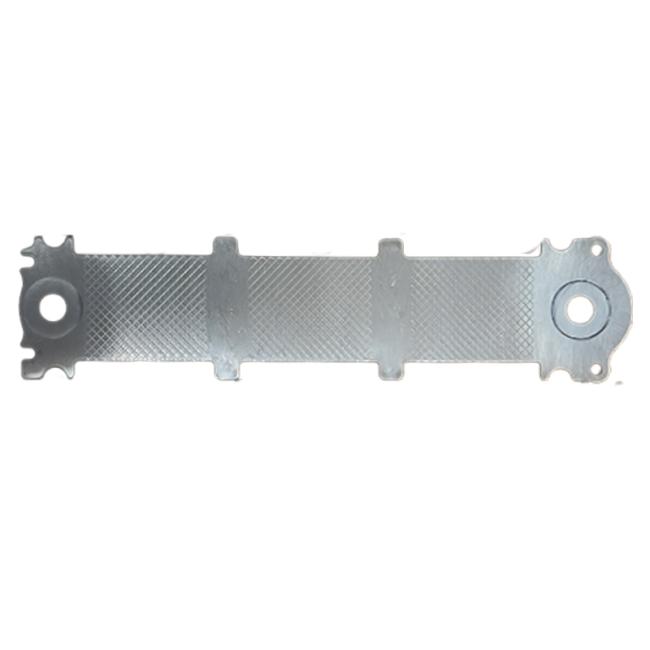

It is suitable for mass production of IGBT metal housings, brackets and structural parts used in electric vehicles and automotive power systems.

Key Features

• Automotive-Grade Precision Stamping
  The stamping die provides high dimensional accuracy and repeatability, ensuring stable assembly and performance of IGBT modules.
• Robust Die Structure
  Manufactured from high-quality tool steel, the die maintains excellent strength and wear resistance under continuous stamping operations.
• Optimized for IGBT Metal Components
  Designed for thin and medium thickness sheet metal parts commonly used in IGBT housings and support structures.
• Long Service Life
  Engineered for high-cycle stamping production with stable performance and reduced maintenance frequency.
• Custom Design Capability
  The die can be customized according to part drawings, material specifications and automotive production standards.

Competitive Advantages

• Dedicated die design for automotive IGBT applications

• High stamping accuracy suitable for power electronics assembly

• Stable quality for automotive mass production lines

• Reduced burrs and deformation of stamped parts

• Compliance with automotive manufacturing requirements

Specifications:
