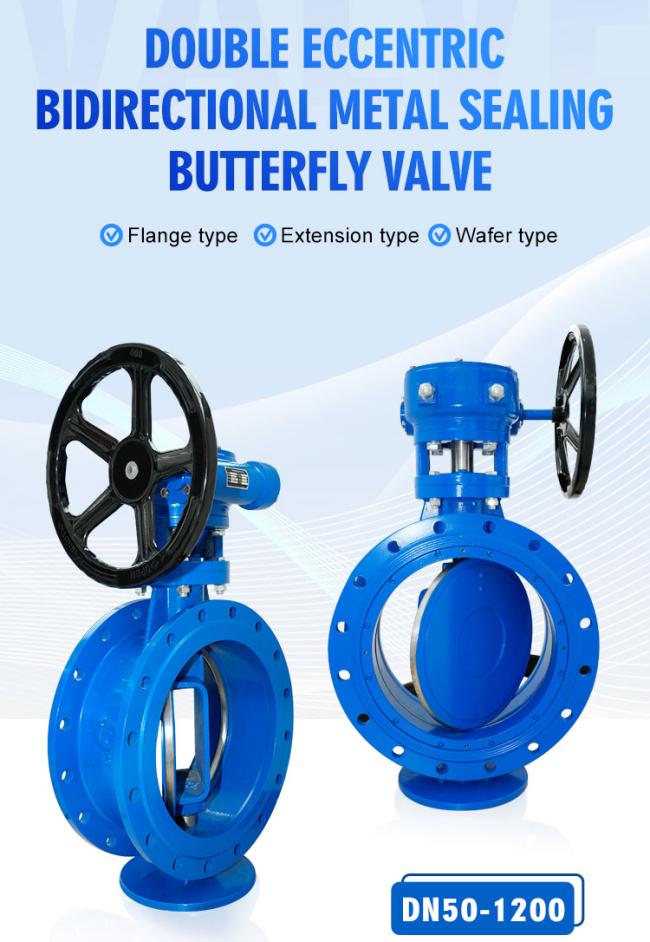

Double Ecentric Bi-directional Metal sealed Cast Iron Electric Actuator butterfly Valve
Double ecentric Bi-directional metal sealed cast iron electric actuator butterfly valve
Double ecentric Bi-directional metal sealed cast iron electric actuator butterfly valve

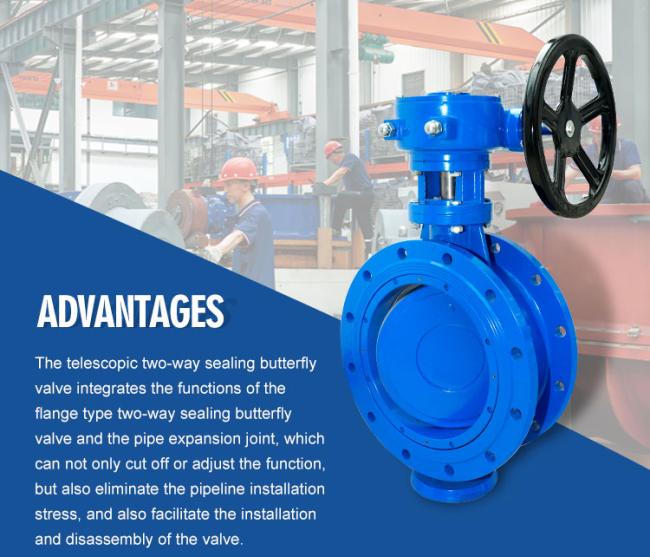

The two- way metal sealing butterfly valve is an upgraded new technology product developed on the basis of two- -way soft seal. The sealing surfaces of the valve body and the valve plate are sealed by stainless steel. After machining by CNC lathe and precision tool, the two- -way sealing of the butterfly valve according to the national standard is guaranteed. This extends the life of the valve. The telescopic two- -way sealing butterfly valve integrates the functions of the flange type two- -way sealing butterfly valve and the pipe expansion joint, which can not only cut off or adjust the function, but also eliminate the pipeline installation stress, and also facilitate the installation and disassembly of the valve.

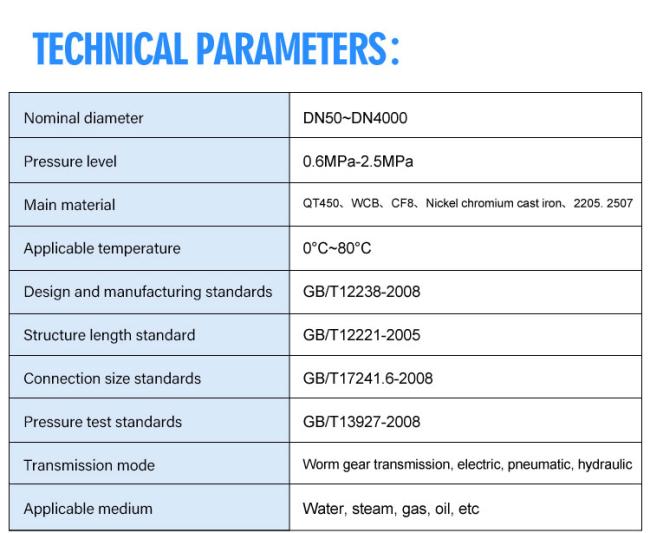

Technical parameters:
| Nominal Diameter | DN50~DN4000 |
| Pressure level | 0.6~2.5MPa |
| Applicable temperature | 0℃ to 80℃; |
| Drive mode | Turbo/electric/pneumatic/hydraulic |
| Medium | Water, steam, gas, oil, etc. |
Ordering Notice1. Price: Due to different product configurations, materials, and models, the product prices may vary. Please confirm the price with the sales manager before placing the order. The prices on the website are for reference only, and the final interpretation is up to the seller.
2 Samples: Our company can provide samples, and if there are inventory samples, we can provide them to customers (if you ask for this). Special requirements or configurations require a certain fee (the fee will be charged based on the actual situation).
3. After sales: If the buyer finds that the quality, color, and quantity of the product are incorrect, please contact customer service in a timely manner to communicate and resolve the issue.
Double ecentric Bi-directional metal sealed cast iron electric actuator butterfly valve
Our products have become products of 3-High: high technology, high standard, high quality.
Porfessional selection guidance;
Remote technical support;
Professional presale and aftersales service;
Sample order is acceptable.
Double ecentric Bi-directional metal sealed cast iron electric actuator butterfly valve
Double ecentric Bi-directional metal sealed cast iron electric actuator butterfly valve
