Flange End Fire Fighting Swing Check Valve
Flange End Fire Fighting Swing Check Valve
Main technical parameters
| Nominal pressure | PN10/PN16/PN25/PN40/PN64, 125LB/150LB/300LB, 5K/10K/16K |
| Face to face standard: | GB/T12221-2005, BS5153, ASME B16.10DIN F6, EN558-1.JIS B2002 |
| Flange connection standard |
GB/T17241.6, GB/T9113-2010, EN1092-2 JIS B2212 |
| Test standard | GB/T13927-2008, API598 |
| Applicable media | Water, oil, gas, etc. |
Maximum pressure conditions
| Size | Max pressure (bar) | Min/Max Temp (℃) | Test Pressure (bar) | |
| Shell | Seat | |||
| DN40-DN600 | 10.0/16.0/25.0 | -10℃ +100℃ | 15.0/24.0/37.5 | 11.0/17.6/27.5 |

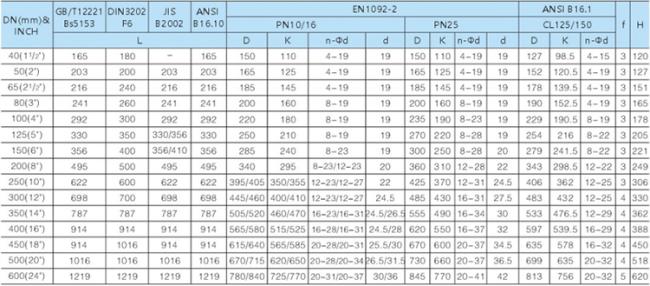

Dimensions
FAQ:
Q. Can I have my own Logo on the product?
A: Yes, OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
