Haoyuan Flange End Double Sphere Air Release Valve
Haoyuan Flange end Double Sphere Air Release Valve
Haoyuan Flange end Double Sphere Air Release Valve
The purpose of the dual hole exhaust valve:
Double hole exhaust valve is suitable for pipelines with water as the working medium. As a device for removing gas from the pipeline, it improves the efficiency of water conveying equipment and protects the pipeline from deformation and rupture. It is an essential equipment for pipelines.
Performance characteristics of dual hole exhaust valves
1. Able to remove air from the pipeline, reduce resistance, and save energy.
2. When the pipeline is under negative pressure, this product can automatically suck in air to prevent pipeline rupture. The float ball is made of stainless steel, with a long service life and safety and reliability.
Technical parameters:
| Nominal pressure | PN10/PN16/PN25, 125LB/150LB |
| Flange connection standard | GB/T17241.6, GB/T9113-2010, EN1092-2, ANSI B16.5 |
| Test standard | GB/T13927-2008, API598 |
| Applicable media | Water, oil, gas, etc |

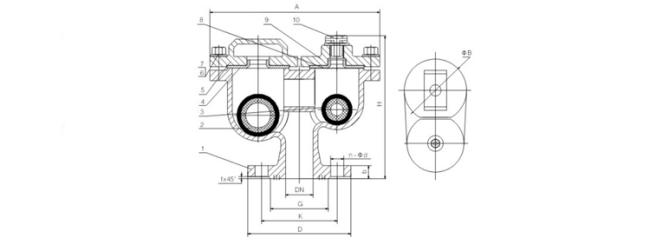

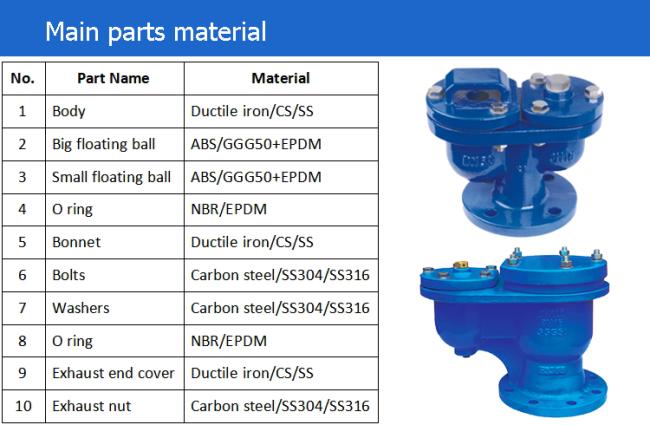

Product structure diagram:
Maximum pressure conditions:
| Size | Max pressure (bar) | Min/Max Temp (℃) | Test Pressure (bar) | |
| Shell | Seat | |||
| DN50-DN200 | 10.0/16.0/25.0 | -10℃ +100℃ | 15.0/24.0/37.5 | 11.0/17.6/27.5 |

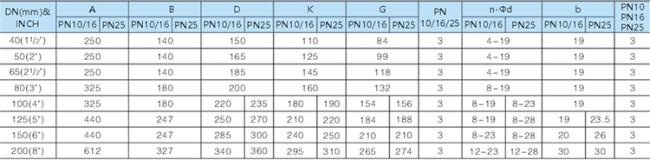

Size:
Haoyuan Flange end Double Sphere Air Release Valve
Our products have become products of 3-High: high technology, high standard, high quality.
Porfessional selection guidance;
Remote technical support;
Professional presale and aftersales service;
Sample order is acceptable.
Haoyuan Flange end Double Sphere Air Release Valve
Haoyuan Flange end Double Sphere Air Release Valve
Q. Can I have my own Logo on the product?
A: Yes, OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
