VS130 cNC vertical machining centerWith HT300 High Grade Castings 1310mm X Axis Travel

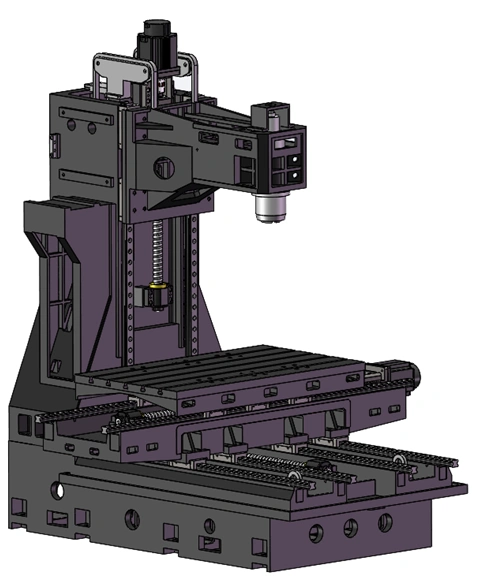

The VS series is a heavy-duty vertical machining center designed for industrial applications. All models feature 6 sliders on the X-axis, 4 roller linear guides with 8 sliders on the Y-axis, and a Z-axis column with an increased installation foot span for enhanced stability and processing performance.
The VS130 is a robust vertical machining center engineered for heavy-duty applications. Its low center of gravity, anti-distortion structure, and high material removal rate ensure precision and durability, making it ideal for manufacturers seeking efficient and reliable machining solutions.
The VS series is professionally designed with principles of low center of gravity, anti-distortion, anti-creep, heavy cutting capability, and high material removal rate.
- Finite element analysis (FEM) optimizes casting reinforcement ribs for maximum bed strength
- Special reinforcement structures on Y-axis base and Z-axis column enhance heavy cutting capability and tool life
- HT300 high-grade castings provide superior strength, deformation resistance, and shock absorption
- Vibration aging and secondary tempering processes eliminate stress for long-term dimensional stability

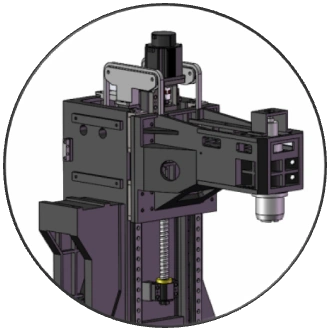

Standard spindle counterweight system reduces Z-axis lead screw load, minimizing thermal elongation impact on machining accuracy.
Large span Z-axis column with HT300 material components for superior vibration damping and stability.
| Machine Type | VS130 |
|---|---|
| Workbench size | 1300x700 mm |
| Workbench T-slot (number - size * pitch) | 5-18x130 mm |
| Max. load capacity of the workbench | 1200KG |
| X-axis travel distance | 1310mm |
| Y-axis travel distance | 710mm |
| Z-axis travel distance | 630mm |
| Distance from spindle center to column guide rail | 770mm |
| Distance from spindle face to worktable surface | 130-760 mm |
| Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed | 30m/min |
| Max. torque of motor (X,Y,Z axes) | 69N.m |
| Max. spindle speed | 8000/12000 rpm |
| Spindle taper hole | BT40 (BT50 Optional) |
| Spindle motor power | 11/15 KW (※15/18 KW) |
| Tool magazine capacity | Disc-Type 24Tools |
| Max. weight of cutting tools | 8KG(BT40) / 15KG(BT50) |
| Air source pressure | 0.5-0.8 MPa |
| Machine size (L x W x H) | 2600x2150x2650mm |
FANUC, Siemens, SYNTEC, KND, Mitsubishi
Imported bearings
THK, PMI, HIWIN, HTPM 45,55 Precision Grade P roller-type
THK, PMI, HIWIN C3 grade Ø50 precision ground
- Quality system certified manufacturer
- Independent design and R&D capabilities
- Equipped with large gantry and five-axis machining centers
- Dedicated after-sales service team
- HT300 high-grade castings with ergonomic design
- Imported functional components for long-term stability
- Complete in-house processes from casting to fabrication
- Strict quality control throughout production
Ideal for mechanical processing in automotive manufacturing, aerospace, and shipbuilding industries.
A: We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
A: We have been engaged in the auto parts industry for 10 years.
A: Contact our business manager for the product catalog via email.
A: We confirm trading methods (FOB, CIF, CNF) during quotation. Typical payment is 30% advance with balance upon shipment, via T/T or L/C.
A: We offer a one-year warranty and 24-hour lifetime technical support.
