Mining Ball Mill 900×1800 1200×4500 Ball Mill In Cement Industry
Price:
Negotiable
MOQ:
1
Delivery Time:
30-50 days
Brand:
Zoomline
Product Description
2100 X 3000MM Industrial Ball Mill 2400 X 4500MM High Energy Ball Milling
A ball mill is a key piece of equipment in many industrial fields for grinding and pulverizing materials. Our high-performance ball mills are available in multiple sizes including 900×1800, 1200×4500, 2100×3000, and 2400×4500 models.
Working Principle
- The horizontally rotating cylinder contains grinding media (steel balls, bars, or pebbles) that crush materials through impact and attrition
- Materials flow from feeding end to discharging end due to height difference and continuous forced feeding
- Grinding action occurs through media movement, including rotation, free fall, sliding, and rolling

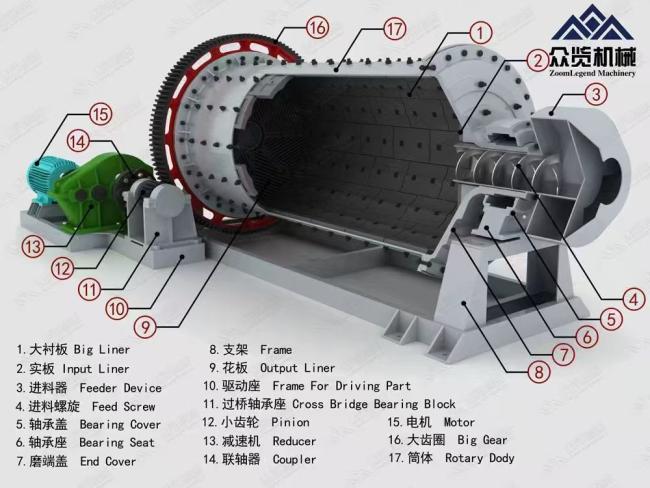

Mechanical Structure
- Feeding Part: Includes feed inlet, hopper, and speed control devices for uniform material input
- Discharging Part: Comprises discharge port, hopper, and optional screening devices
- Rotating Part: Core components including steel cylinder, wear-resistant lining plates, and grinding media
- Driving Part: Consists of reduction gear, motor, and electric control system for reliable operation
Classification Methods
- By Cylinder Shape: Short cylinder (L/D ratio 1-2), tube mill (L/D ratio 2-7), or conical mill (L/D ratio 0.25-1.0)
- By Operation Mode: Batch processing or continuous operation (open-circuit, closed-circuit, or air-swept)
- By Discharging Mode: Central (overflow/grate), peripheral, or intermediate discharge configurations
Characteristics and Advantages
- Handles diverse materials including ores, cement, and construction waste with both dry and wet grinding capability
- Precision grinding to required fineness with adjustable parameters for different particle size requirements
- High production capacity with stable operation and automatic control systems
- Durable construction with easily replaceable wear parts for low maintenance costs
Application Fields
- Cement Industry: Grinding clinker and raw materials for quality cement production
- Mineral Processing: Preparing metal/non-metal ores for beneficiation and smelting
- Building Materials: Processing limestone, clay, and quartz sand for various construction products
- Chemical Industry: Grinding pigments, coatings, and catalysts for chemical production
- Metallurgy: Preparing iron ore, manganese ore, and metal powders for metallurgical processes
Technical Specifications
| Model | Rotary speed (r/min) | Balls load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor Power (kw) | Weight (t) |
|---|---|---|---|---|---|---|---|
| φ900×1800 | 36 - 38 | 1.5 | ≤20 | 0.075 - 0.89 | 0.65 - 2 | 18.5 | 4.6 |
| φ900×3000 | 36 | 2.7 | ≤20 | 0.075 - 0.89 | 1.1 - 3.5 | 22 | 5.6 |
| φ1200×2400 | 36 | 3 | ≤25 | 0.075 - 0.6 | 1.5 - 4.8 | 30 | 12 |
| φ1200×3000 | 36 | 3.5 | ≤25 | 0.074 - 0.4 | 1.6 - 5 | 37 | 12.8 |
| φ1200×4500 | 32.4 | 5 | ≤25 | 0.074 - 0.4 | 1.6 - 5.8 | 55 | 13.8 |
| φ1500×3000 | 29.7 | 7.5 | ≤25 | 0.074 - 0.4 | 2 - 5 | 75 | 15.6 |
| φ1500×4500 | 27 | 11 | ≤25 | 0.074 - 0.4 | 3 - 6 | 90 | 21 |
| φ1500×5700 | 28 | 12 | ≤25 | 0.074 - 0.4 | 3.5 - 6 | 130 | 24.7 |
| φ1830×3000 | 25.4 | 11 | ≤25 | 0.074 - 0.4 | 4 - 10 | 130 | 28 |
| φ1830×4500 | 25.4 | 15 | ≤25 | 0.074 - 0.4 | 4.5 - 12 | 155 | 32 |
| φ1830×6400 | 24.1 | 15 | ≤25 | 0.074 - 0.4 | 6.5 - 15 | 180 | 34 |
| φ1830×7000 | 24.1 | 21 | ≤25 | 0.074 - 0.4 | 7.5 - 17 | 210 | 36 |
| φ2100×3000 | 23.7 | 15 | ≤25 | 0.074 - 0.4 | 6.5 - 15 | 210 | 34 |
