Small Industrial High Temperature Box Furnace Heat Treatment For Electronic Products
Price:
Negotiable
MOQ:
1
Delivery Time:
Customized
Brand:
Chitherm
Product Description
Small Industrial High Temperature Box Furnace Heat Treatment for Electronic Products
Product Specifications
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Effective Chamber Dimensions | 400*400*400mm(W*H*D) |
| Atmosphere | Nitrogen/Hydrogen |
| Transport Package | Wooden Package |
| Specification | 1200*1950*1250mm (W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |
Product Overview

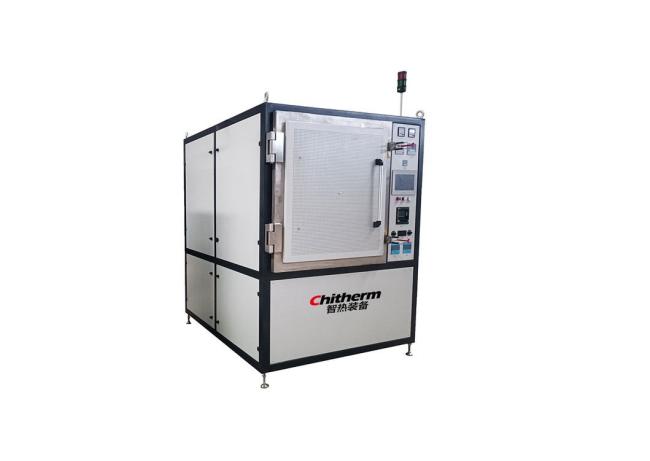

The SXL64 - 17NH high-temperature atmosphere box furnace is designed for medium-temperature heat treatment of electronic products, including nitrogen/air atmosphere heat treatment of electronic ceramics, dielectrics, and conductors. The system features pre-vacuuming capability with nitrogen replacement for furnace atmosphere purification, making it suitable for various high-temperature heat treatment applications.
Key Technical Specifications
Rated Temperature: 1600ºC
Maximum Temperature: 1650ºC
Furnace Chamber Dimensions: 400×400×500 mm (W×H×D)
Heating Element: Molybdenum wire
Processing Atmosphere: Nitrogen/Hydrogen
Temperature Control Stability: ±1°C
Temperature Uniformity: Better than ±5°C
Control System: Touch screen + PLC centralized control
Maximum Heating Power: 25 kW
Power Requirements: 34 kVA, three-phase five-wire, 220/380 VAC, 50 Hz
Standard Delivery Contents
| Item | Note | Quantity |
|---|---|---|
| Basic Components | ||
| Furnace | 1 PC | |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents | 1 Set |
| Key Parts | ||
| Molybdenum wire | 1 Set | |
| Dew point meter | 1 PC | |
| Temperature Controller | 1 Set | |
| Touch screen | 1 Set | |
| Vacuum system | 1 Set | |
| Oxygen Analyzer | 1 Set | |
| Hydrogen alarm instrument | 1 Set | |
| Water chiller | 1 Set | |
| Spare Parts | ||
| Heating Elements | Molybdenum Coil | 4 PC |
Facility Requirements
- Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
- Process air conditions: Nitrogen purity 99.999%, pressure 0.2 - 0.4Mpa; Hydrogen purity 99.99%, pressure ≥0.1Mpa
- Power air source: Clean, dry, oil-free compressed air, pressure 0.4 - 0.8Mpa
- Water inlet: 0.1 - 0.3Mpa pressure, clean water supply at 2 - 5L/min
- Ventilation system: Pumping capacity > 1.5m³/h
- Ground requirements: Level surface, bearing capacity > 200Kg/m², minimal vibration
- Power supply: ≥34kVA capacity, 3-phase 5-wire, 220/380V, 50Hz
- Installation space: Minimum 2500×3000×2500mm (W×H×D), area >5m²
