Industrial Rapid Thermal High Temperature Box Furnace Annealing RTA Furnace 1000 Ordm C
Price:
Negotiable
MOQ:
1
Delivery Time:
Customized
Brand:
Chitherm
Product Description
Industrial Rapid Thermal Annealing RTA Furnace 1000°C Electric Holding Melting
Product Attributes
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Air/O2 |
| Effective Chamber Dimensions | 450*450*500mm (W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 990*1680*1095mm |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |
Product Description
Electric Holding Furnace 1000°C Mnf100-10 Cleanliness Box Melting Industrial Furnace for Electric Industrial Processes
Equipment Name and Model

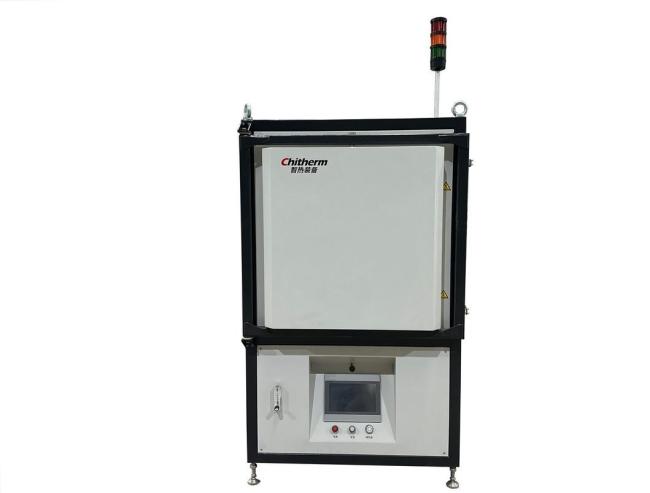

MBF100-10 Type Medium-Temperature Clean Box Furnace
Application Fields
Mainly used for high-temperature heat treatment processes of similar products such as electronic devices and electronic ceramics.
Technical Specifications and Basic Configuration
- Rated Temperature: 900°C
- Maximum Temperature: 1000°C
- Inner Lining Material: Fused Quartz
- Effective Dimensions: 450 × 450 × 500mm (W × H × D)
- Heating Rate: ≤10°C/min
- Heating Elements: FEC ceramic fiber heating plates, heating from all four sides
- Temperature Stability: ±1°C, with PID parameter self-tuning function
- Temperature Uniformity: ±5°C (tested with an empty furnace at constant temperature of 900°C)
- Thermocouple Type: K-type
- Number of Temperature Control Points: 1 point
- Number of Temperature Control Segments: 9 segments
- Exhaust Chimney: Equipped with an exhaust port at the rear, which can be manually adjusted
- Inlet Design: Allows the introduction of dry, clean, oil-free compressed air or oxygen into the furnace chamber
- Alarm Protection: Over-temperature, open circuit, etc., with audible and visual alarm protection
- Maximum Heating Power: 16 kW
- Typical Insulation Power for an Empty Furnace: ≤8 kW
- Surface Temperature Rise: <35°C
- Equipment Weight: Approximately 450 Kg
- Equipment Exterior Color: Light Grey
- Reference External Dimensions: 990 × 1680 × 1095mm (W × H × D)
Delivery List
| Item | Note | QTY |
|---|---|---|
| Basic Compositions | Furnace | 1 unit |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components, etc | 1 Set |
| Key Parts | Touch screen | 1 PC |
| Temperature Controller | 1 Set | |
| FEC Heater | 1 Set | |
| Quartz Liner | 1 Set | |
| Spares | SSR | 1 PC |
Facility Requirements
- Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
- Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m²
- Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local situation)
- Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m²
