Alarm System Industrial Sintering Furnace Electronic Components Controlled Atmosphere Furnace
Model: HBF52-17NO High-Temperature Box Furnace
Application Fields: Suitable for high-temperature sintering processes of ITO targets, microwave ferrites, magnetic materials, electronic components, ceramic filters, etc. Supports air/oxygen atmosphere environments.
| Parameter | Specification |
|---|---|
| Rated/Max Temperature | 1650°C (rated) / 1700°C (peak) |
| Effective Chamber Size | 350×300×500mm (W×H×D) |
| Heating Element | U-shaped silicon molybdenum rods |
| Temperature Control Performance |
|
| Temperature Sensor | Type B thermocouple (single-point control at side center) |
| Temperature Control Program | 4×16 programmable segments |
| Atmosphere System | Supports air/oxygen, top automatic chimney (with cover) |
| Safety Protection | Over-temperature and thermocouple failure alarms with sound/light, over-temperature power cutoff |
| Power Parameters |
|
| Surface Temperature Rise | ≤40°C |
| Equipment Weight | ≈950kg |
| Dimensions | 1620×1960×1220mm (W×H×D) |
| Color | Light gray |
Environmental Conditions:
- Temperature: 0～40°C
- Humidity: ≤80%RH
- No corrosive gases or strong airflow disturbances
Gas Supply Requirements:
- Clean, dry compressed air: 0.2～0.4MPa, consumption 2～6m³/h
- High-purity oxygen: same pressure range, consumption 2～6m³/h
Ventilation System: Must connect to user exhaust system with extraction capacity >10m³/h (non-contact connection)
Floor Requirements: Level, vibration-free, load-bearing ≥300kg/m²
Electrical Conditions: 3-phase 5-wire system, capacity ≥34KVA, voltage 220/380V, frequency 50Hz
Installation Space: Minimum area: 2000×3000×1500mm (W×H×D), recommended space >3m²
- Heating rates must strictly follow parameter settings to avoid thermal shock affecting equipment lifespan
- Atmosphere Control: Ensure clean pipelines when switching between oxygen/air to avoid chamber contamination
- Maintenance Advice: Regularly inspect thermocouples, heating elements, and exhaust systems to ensure safe operation
| Item | Note | QTY |
|---|---|---|
| Basic Compositions | Furnace | 1 PC |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components, etc | 1 Set |
| Key Parts | Heating Elements (MoSi2) | 1 Set |
| Thermocouple | THERMOWAY, B Type | 1 PC |
| Temperature Controller | CHINO | 1 Set |
| Monitor | Proface 10" touch screen | 1 Set |
| Spares | Heating Elements (MoSi2) | 1 PC |
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.

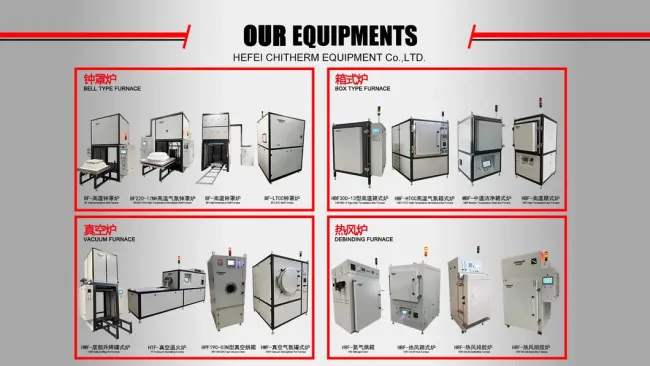

Our product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.
