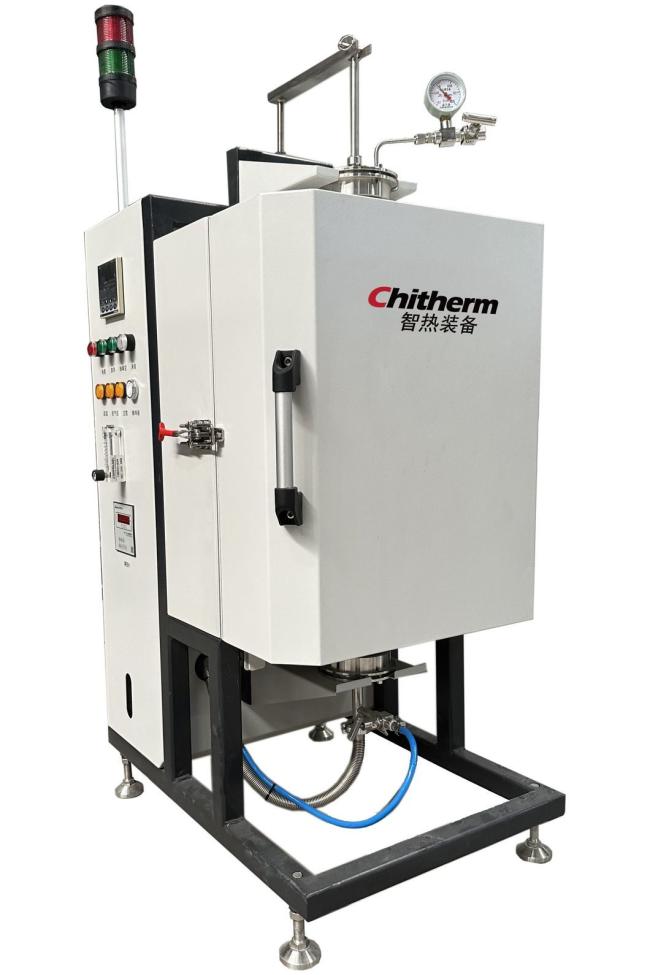

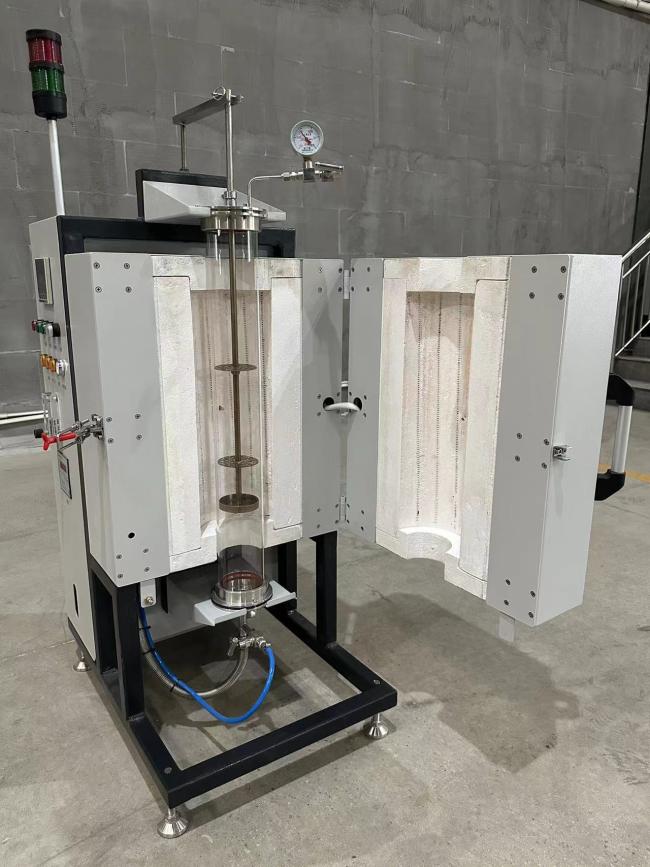

500C Vertical Vacuum Tube Furnace For Firing Electronic
The VTF1050-05 vertical vacuum tube furnace is suitable for firing electronic products at 500°C or below.
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Fuel | Electric |
| Tube Dimensions | Φ100(Od)*Φ94(ID)*800mm |
| Tube Material | Quartz |
| Atmosphere | Vacuum |
| Transport Package | Wooden Packaging |
| Specification | 450*1100*840mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Production Capacity | 50 Sets/Year |
The VTF1050-05 vertical tube furnace is primarily used for heat treatment processes of related products or materials under a protective atmosphere. This equipment is specially designed and manufactured by integrating advanced design concepts from similar international sintering equipment and our company's extensive experience in kiln design and manufacturing, achieving product quality on par with international counterparts.
This product employs advanced infrared technology and high-quality furnace materials to enhance thermal efficiency; utilizes cutting-edge temperature control technology to ensure precise temperature regulation; leverages mature furnace design techniques to guarantee uniform heat distribution; and features a quartz glass tube furnace structure to maintain cleanliness and achieve optimal sintering results under controlled atmospheres.
The VTF1050-05 vertical vacuum tube furnace is suitable for firing electronic products at 500°C and below, as well as for heat treatment in controlled atmospheres in fields such as electronics, chemical engineering, machinery, and scientific research.
- Flat ground, indoor environment with minimal air disturbance, no corrosive gases, and low vibration.
- Electrical control room ambient temperature: 0～40°C, humidity: 10%～85%RH.
- Furnace body environment with good ventilation, ambient temperature ≤50°C, humidity: 10%～85%RH.
| Name | Main Contents | Quantity |
|---|---|---|
| Basic Components | Furnace Main Unit | 1 unit |
| Inspection Certificates | Certificates for key purchased components | 1 set |
| Technical Documents | User manual, technical documents for key purchased components, etc. | 1 set |
| Key Components | FEC Heater | 1 set |
| Temperature Controller | 1 set | |
| Vacuum Gauge + Pirani Gauge | 1 set | |
| Vacuum Pump | 1 set | |
| Spare Parts | Solid-State Relay (SSR) | 1 piece |
- Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, no corrosive gases, no strong airflow disturbance
- Gas Supply Requirements: 0.1-0.3 MPa, consumption approx. 0.6 m³/h
- Floor Requirements: Level, no significant vibration, load-bearing capacity >300 kg/m²
- Power Supply: Capacity >4kVA, 3-phase 5-wire, voltage 220/380 V, frequency 50 Hz. Live wires: Yellow, Green, Red; Neutral wire: Blue; Ground wire: Yellow-green
- Installation Space: 1000×2000×1000 mm (W×H×D), installation area >1 m²
