• High-performance 16-point digitally fused output module for ControlLogix systems
• Ideal for industrial automation applications
• Operating voltage range: 10-30 VDC (nominal 24 VDC)
• Maximum output current: 1 A per point at 60°C
• Features electronic keying for secure installation
• Fast switching with OFF-to-ON delay of 70 µs and ON-to-OFF delay of 360 µs
• Low backplane current consumption: 2 mA at 24 V, 250 mA at 5.1 V
• Thermal dissipation: 13.98 BTU/hr at 60°C
• Compact dimensions: 23.3 * 18.3 * 5.3 cm
• Weight: 0.35 kg
• Model number: 1756-OB16E (spare: 1756OB16E)
• Made in USA, shipped from Xiamen, China

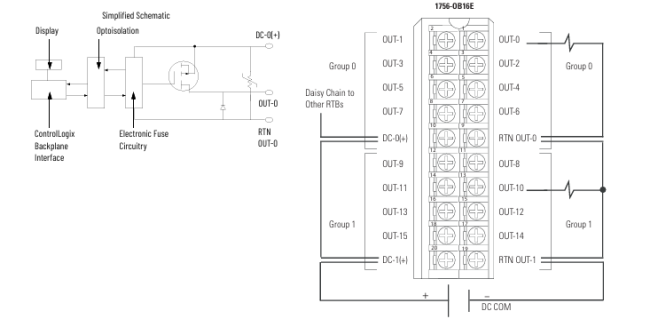

Output Module Status Indicators by Catalog Number

1756-OB16E, 1756-OB16EK  ControlLogix DC (10...31.2V) electronically fused output module
