Bently Nevada 330703-000-060-10-02-CN 11 mm Proximity Probe with M14 x 1.5 Metric Thread and CN Certification
Price:
66USD
MOQ:
1
Delivery Time:
2-3 work days
Brand:
Bently Nevada
Product Description
Bently Nevada 330703-000-060-10-02-CN 3300 XL 11 mm Proximity Probe
Product Specifications
 |
|
- Immediate Shipping (Minimize Your Downtime)
- Huge Stock of Bently Nevada Series
- 100% Inspected with 1-Year Warranty
- Global Shipping to 160+ Countries
Frequently Asked Questions
Q1: What are the exact dimensional and hardware specifications for the Bently Nevada part number 330703-000-060-10-02-CN?
A1: The 330703-000-060-10-02-CN is a 3300 XL 11mm probe, M14 x 1.5 thread type. Nothing unusual on mounting side. The “00” means no unthreaded section, fully threaded body. “60” refers to the case length, and the cable side is around 1.0 meter total length. It uses a standard fluid-film cable with ClickLoc connector, and the CN marking points to NEPSI hazardous area approval for China use.
Q2: Which machinery monitoring systems and proximitor sensors are compatible with the 330703-000-060-10-02-CN probe?
A2: It’s built for the Bently Nevada 3300 XL 11mm Proximitor Sensor. In most setups, it runs inside a 3300 XL + 3500 Monitoring System chain. Signal usually goes into the 3500/40M Proximitor Monitor module, depending on rack configuration. It’s API 670 compliant system type, so integration is pretty standard in machinery protection system projects.
Q3: What are the primary industrial applications and measurement functions of the 330703-000-060-10-02-CN non-contacting sensor?
A3: Mainly used for non-contact radial vibration measurement, also shaft eccentricity and thrust position monitoring. You’ll see it quite often in steam turbine monitoring, gas turbine protection, and centrifugal compressor monitor setups. In real field use, especially on fluid-film bearing machines, it sits in ESD-related protection systems where continuous condition monitoring is needed.
Q4: Can the 330703-000-060-10-02-CN proximity probe be used as a direct upgrade for legacy 7200 series transducer systems?
A4: Yes, it’s commonly used to replace older 7200 series 11mm / 14mm systems. Installation is mostly straightforward. The upgrade mainly improves stability and sealing at the ClickLoc joint, plus better signal consistency. Scale factor stays around 3.94 V/mm (100 mV/mil). In practice, it’s more about reliability upgrade than performance change.
Q5: What safety certifications are designated by the "CN" suffix in the model code 330703-000-060-10-02-CN?
A5: “CN” stands for NEPSI China certification. In many cases it also aligns with ATEX and IECEx intrinsic safety requirements, depending on configuration. So it’s suitable for hazardous environments like refineries and power plants where industrial rotating machinery protection standards are required.
Q6: How can I request a formal quotation or verify the stock availability for the 330703-000-060-10-02-CN proximity probe?
A6: You can contact AMIKON directly for stock and pricing. We usually respond based on availability and quantity requirement. For Bently Nevada 3500 system and 3300 XL probe series, lead time is normally confirmed quickly after inquiry. Email: sales@amikon.cn
Quality Assurance & Testing

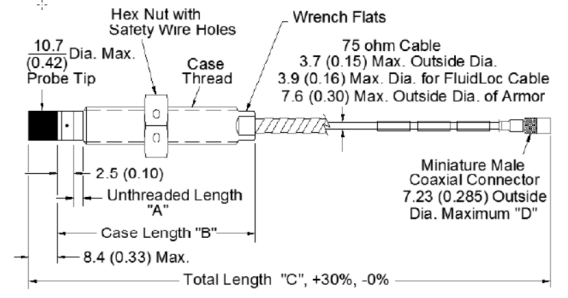

Dimensions: Verify M14x1.5 thread, 60mm case, and 1.0m ClickLoc cable
Electricals: Measure coil resistance and case isolation
Calibration: Test on TK-3 rig to ensure standard 3.94 V/mm output
Compliance: Validate oil-seal and CN/NEPSI explosion-proof markings
Compatible Parts & Accessories
| 330703-000-060-10-02-00 | 3500/92 |
| 106M1081-01 | 330103-00-05-10-02-00 |
| 3500/42M 176449-02 | 330703-000-060-10-02-00 |
| 3500/15 AC 127610-01 | 330103-00-09-10-02-00 |
| 128276-01E 131151-01 | 135813-01 |
| 18745-04 | 990-05-XX-01-00 |
| 330102-22-58-10-02-00 | 330180-X1-05 MOD:145004-02 |
| 330910-03-09-05-02-05 | 133323-01 |
| 330709-000-070-10-02-00 | 330905-00-08-10-02-00 |
| 3500/61 163179-02 | 990-04-50-01-00 |
| 1900/65A 172323-01/1900/65A 167699-02 | 330101-XX-XX-10-02-05 MOD:147773-00-12 |
| 3500/15 106M1079-01 | 330104-00-04-10-02-00 |
| 3500/65 145988-02 | 330104-00-06-10-02-00 |
| 3500/92 136180-01 | 330851-04-000-023-10-01-05 |
| 3500/94 145988-01 | 330910-05-10-02-00 |
| 330104-00-10-10-02-05 | 330101-00-16-10-02-00 |
| 330910-00-05-10-02-00 | 3300/12 |
| 3500/44M 176449-03 | 330850-50-05 |
| TK3-2E 14700-02A | 330730-080-00-00 |
| 3500/42M 140734-02 | 330930-040-01-00 |
