1000mm Gauge Passanger Coach 80km/H 10t Luggage Brake Van
Price:
discussible
MOQ:
1
Delivery Time:
depends on quantity
Brand:
Railteco
Product Description
RTK22 1000mm Gauge Passenger Coach Luggage Brake Van
Product Overview
This luggage van is designed for operation on 1000mm gauge railways in Bangladesh, primarily used for transporting ordinary baggage. The vehicle features both an escort room for baggage train attendants' work and rest, and a passenger compartment.
Key Components
- Car body structure
- Coupler & draft gear system
- Braking system
- Electrical devices
- Bogie assembly
Car Body Construction
The car body is an all-steel welded overall load-bearing structure consisting of:
- Underframe
- Side walls and end walls
- Roof structure
- Partition walls
- Sliding doors
- Luggage racks
- Ventilators
- Thermal insulation materials
- Vehicle interior decoration
Technical Specifications
| Component | Specification |
|---|---|
| Coupler System | MCA-PH coupler buffer device |
| Car End Configuration | A end: HOOK, B end: YOKE |
| Braking System | Dual pipe braking (vacuum and air braking) |
| Air Braking Standard | Knorr braking system conforming to UIC 540 standard |
| Bogie Type | Bombardier MD52-M type bogie |

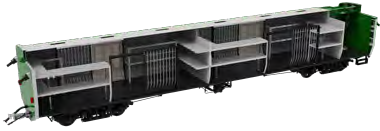

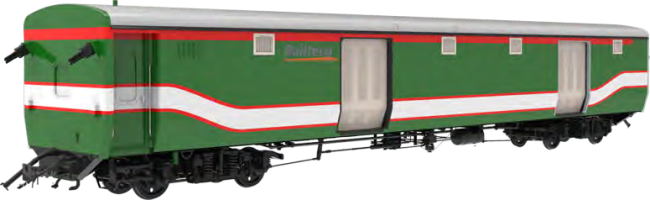

Reference photos
