39.6 Tonnes Goods Wagon 14t Underground Ore Transport Railway Goods Van

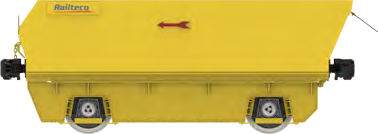

RTH14 Mine Wagon (20 m³) - A robust and highly efficient bottom-discharge wagon engineered for optimal productivity in underground mining operations. Designed to transport bulk ore smoothly through mine roadways, the RTH14 combines high-capacity design with rapid, gravity-assisted unloading for minimal downtime and maximum workflow efficiency.
- Innovative bottom-discharge mechanism for swift, clean unloading
- Gravity-assisted system with integrated unloading curved rails
- Complete payload discharge without complex machinery
- Exceptional agility with 50-meter minimum curve radius
- Optimized payload-to-weight ratio for maximum efficiency
- Durable construction for demanding underground environments
| Gauge | 1435mm |
| Volumetric Capacity | 20 m³ |
| Load Capacity | 39.6 tonnes |
| Tare Weight | ≤ 14 tonnes |
| Fixed Wheelbase | 5530 mm |
| Maximum Length | 6086 mm |
| Width | 2650 mm |
| Unloaded Height | 2430 mm |
| Minimum Curve Radius | 50 meters |
Q: How does the RTH14 Mine Wagon achieve efficient unloading?
A: It features an innovative bottom-discharge mechanism with gravity-assisted system and integrated unloading curved rails, enabling swift, complete payload discharge without complex machinery.
Q: What is the payload capacity and tare weight of this wagon?
A: The RTH14 offers a 39.6-tonne load capacity with a tare weight of ≤14 tonnes, providing an optimized payload-to-weight ratio for maximum hauling efficiency in underground operations.
Q: Can this wagon navigate tight underground mine roadways?
A: Yes, it is designed with exceptional agility and can negotiate curves as tight as 50 meters, making it highly maneuverable through confined mine passages.
Q: What are the key dimensions and volumetric capacity?
A: The wagon features a 20 m³ volumetric capacity, with overall dimensions of 6086 mm in length, 2650 mm in width, and 2430 mm in unloaded height, designed specifically for 1435mm gauge tracks.
