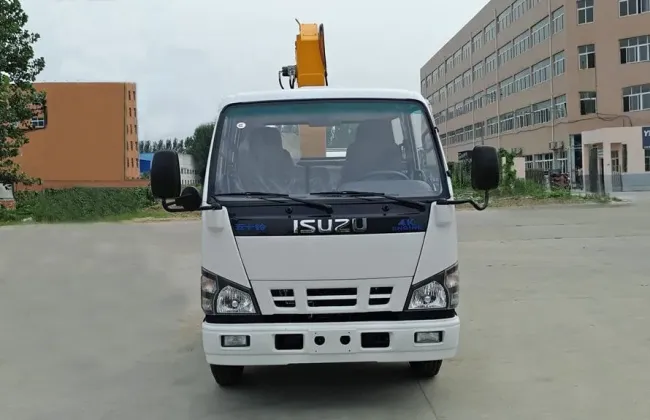

2ton 3tons Jmc/JAC Construction Equipment Straight Boom Crane Truck

Price Negotiable

Price: 15000-35000 per unit

MOQ: 1

Delivery Time: Negotiable

Brand: CLW

Product Description

1. Purpose: It's used for lifting and transporting all kinds of bulk cargo, and also applied in jetty and construction work.

2. Main parts: Crane. (Different lifting capacities match different chassis.)

3. Advantage: One truck combines the functions of crane and dump truck.

Product Specification

General Technical Parameters
Overall Dimension			5995×2060×2940 (mm)
Gross Vehicle Weight			4495(Kg)
Curb Weight			3255(Kg)
Chassis Specification
Chassis Brand
Drive model		4*2
Cabin		Double, Left Hand Driving, with air conditional
Number of Passengers		2-3
Engine	Model	4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGR
	Power	74KW/100HP
	Emission standard	EURO 3
	Displacement	2771(ml)
	Fuel type	Diesel
Gearbox		5Forwards & 1Reverse
Brake System		Air break
Wheel Base		3308mm
Front/Rear Axle Loading		1500/3000(Kg)
Approach/Departure Angle		23/12(°)
Overhang		1250/3545(mm)
Tire		7.00R16
Max Driving Speed		90(km/h)

Upperstructure Specification
Cargo Body	Dimension		2500×1880×380(mm)
	Material		Q235 carbon steel
	Cargo Thickness		Side 1.5mm, Bottom 2.5mm
Working System	Boom Type		Straight 3-Arm telescopic boom
	Crane	Crane Brand	CLW
		Range of Sprayer	30m
		Max Lifting Moment	25(T.M)
		Max Lifting Capacity	3000(kg)
		Max lifting height	12(m)
		Rotation angle	360(°)
		Installation space	1150(mm)
		Recommented power	30(kw)
		Maximum working pressure	26(Mpa)
		Max Flow	63(l/min)
		Crane weight	3800(kg)
	Oil tank capacity		160(L)
	Leg	Leg type	H type
	Leg	Leg Span	2.28-5.9(m)
	Hydraulic system	Pressure	18(M pa)
	Hydraulic system	Capacity	70(l)

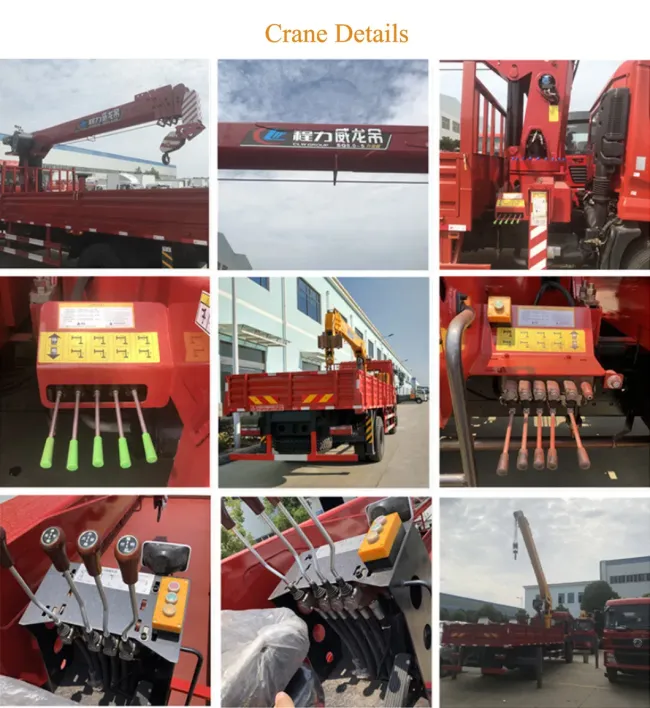

Other Configuration	Control system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.
Options	Caution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

Products Catalog:

LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

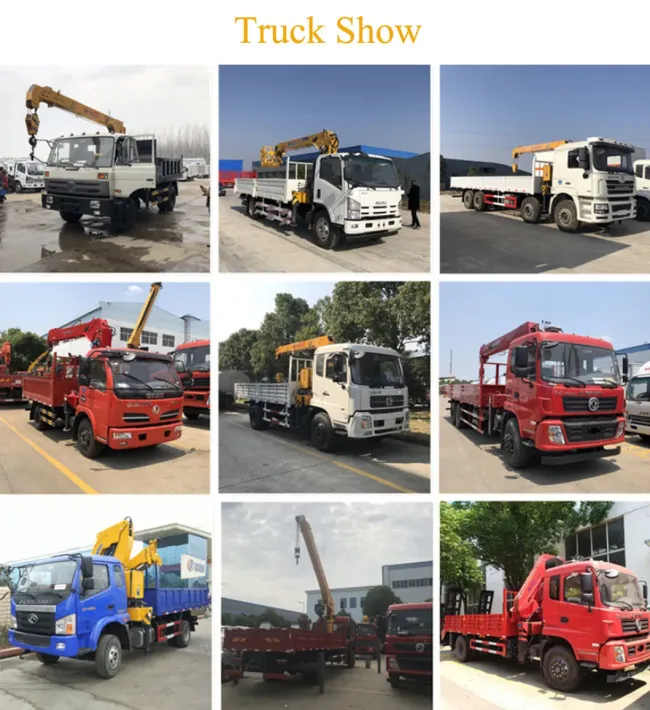

Truck with crane / Truck mounted crane
