Construction Dump Tipper for Minery Mining Construction Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
35 Days
Brand:
CLW
Product Description

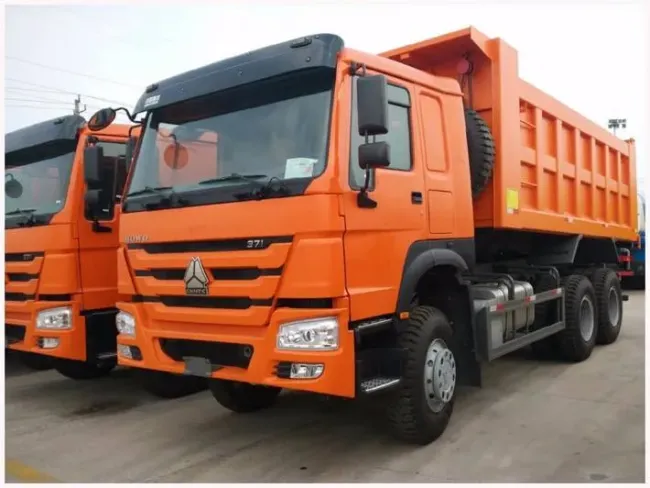

6X4 HOWO LHD 30tons 35tons 18cbm Construction Dump Tipper for Minery Mining Construction Truck
Product description:
Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,FOTON...
Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
Used in construction site for transportation of mineral,stone,sand and so on.
Specification of dump truck:
| Condition | New condition/Left hand drive/6x4 | ||
|
Chassis |
Brand | SINOTRUK | |
| Model | HOWO | ||
| Curb weight(kg) | 12400 kg | ||
| Axle loading(Front/Rear)(kg) | 7000/16000/16000kg | ||
| Wheelbase(mm) | 3800+1350 mm | ||
| Dimensions(mm) | 8560*2490*3430 mm | ||
| Wheel track (front/rear) (mm) | 2036/1860/1860 mm | ||
| Front/Rear overhang(mm) | 1525/1660 mm | ||
| Approach/Departure angle(°) | 28/18 | ||
| Max. driving speed(km/h) | 95 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Fuel tank volume(L) | 300 L | ||
| Brakes |
Service brake: dual circuit compressed air brake. |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 10pcs with one spare tire | |
| Specifications | 12R22.5 | ||
| Transmission | Manual type, 10 Forwards and 2 reverses | ||
| Cabin | It can accommodate three people, With Air conditioner. | ||
|
Engine |
Brand | SINOTRUK | |
| Fuel type | Diesel | ||
| Displacement(ml) | 9726 ml | ||
| Power(kw) | 235 kw | ||
| Horsepower(HP) | 310-385 HP | ||
| Cylinder number | 6 | ||
| Emission standard | Euro 2 | ||
|
Upper |
Size(mm) | 5400*2300*1600 mm | |
| Max. Loading weight(kg) | 35 tons | ||
| Button Thickness(mm) | 8.0 mm | ||
| Side plate Thickness(mm) | 6.0 mm | ||
| Material | Q235 Carbon steel | ||
| Tipping type | Middle Tipping | ||
| Oil cylinder brand | China local brand | ||
| Oil cylinder size(mm) | 220 mm | ||
| Remarks | 1. Color is optional | ||
