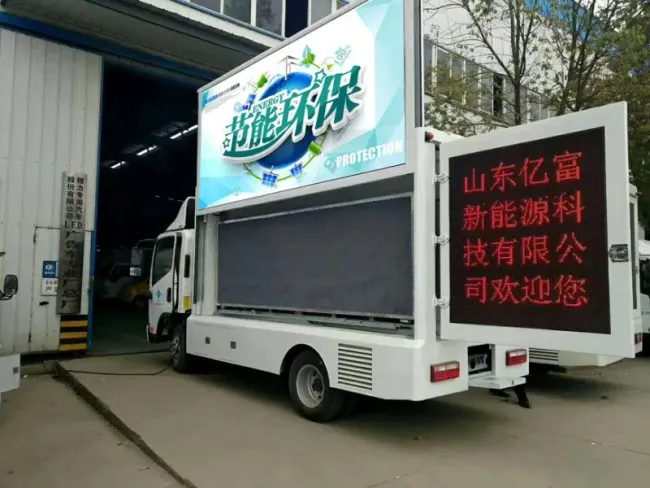

Outdoor Broadcasting Vehicle , LED Screen Billboard Advertising Truck
1. Purpose of LED screen billboard truck: For advertising, product promotion, brand promotion, draft activities, live shows sales, sporting events, vocal concerts, concerts, etc.
2. Main parts of LED screen billboard truck: LED screen, Generator set, Computer, Control system etc.
3. Optional items of LED screen billboard truck: Mobile stage, Scrolling light box.
4. LED screen of LED screen billboard truck: SMD P4 P5 P6 P8 for optional.
5. Generator brand of LED screen billboard truck: China famous brand and Internation brand for optional.
| General Technical Parameters | |||
| Overall Dimension | 5995×2040×2990(mm) | ||
| Gross Vehicle Weight | 4495(Kg) | ||
| Curb Weight | 4365(Kg) | ||
| Chassis Specification | |||
|
Chassis parameters |

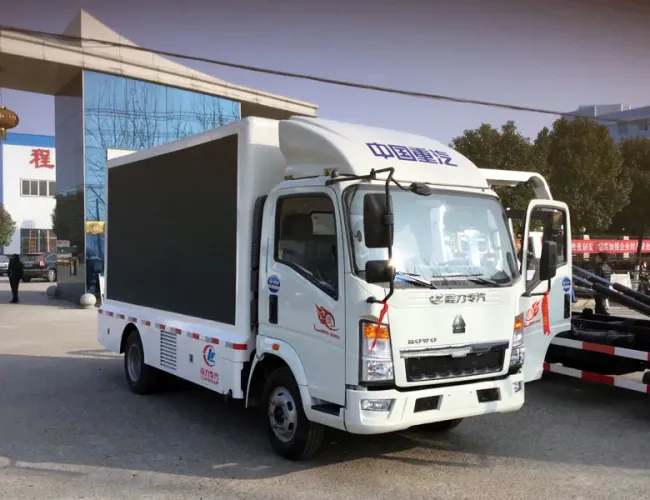

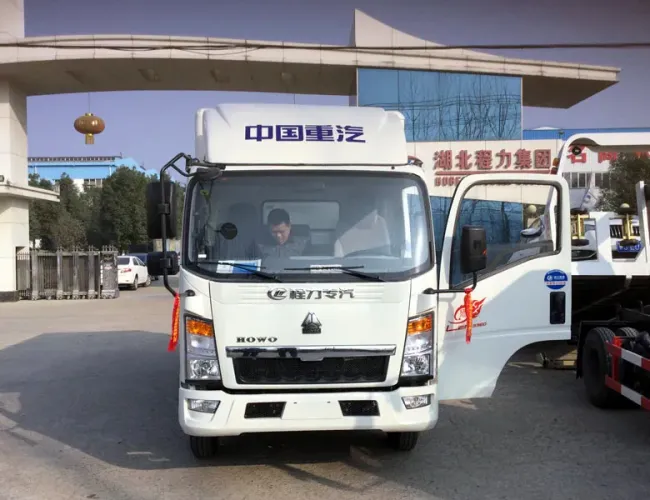

Chassis Brand | HOWO | |
| Cabin | Single, Left Hand Driving, with A/C | ||
|
Engine |
Model | 4 Cylinders | |
| Power | 72KW/98HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 2.771L | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle load | 2.5T/4.8T | ||
| Wheel base | 3360(mm) | ||
| Overhang( Front/Rear) | 1015/1620(mm) | ||
| Angle(Approach/departure) | 24/12 (°) | ||
| Brake System | Oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 700-15, 6 Pieces with 1 Spare Tire | ||
| Maximum speed | 98(km/h) | ||
| Superstructure | |||
|
LED Screen |
Pixel |
Outdoor full colour display screen P6 |
|
| Dimension(LxW)(mm) |

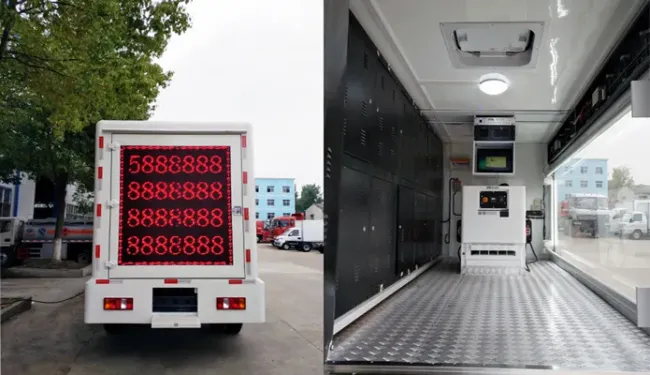

Both side: 3840*1792 Rear:1280*1440 |
||
| Description |
Screen lift on both sides Waterproof, shake-proof, high brightness, long life |
||
|
General configuration |

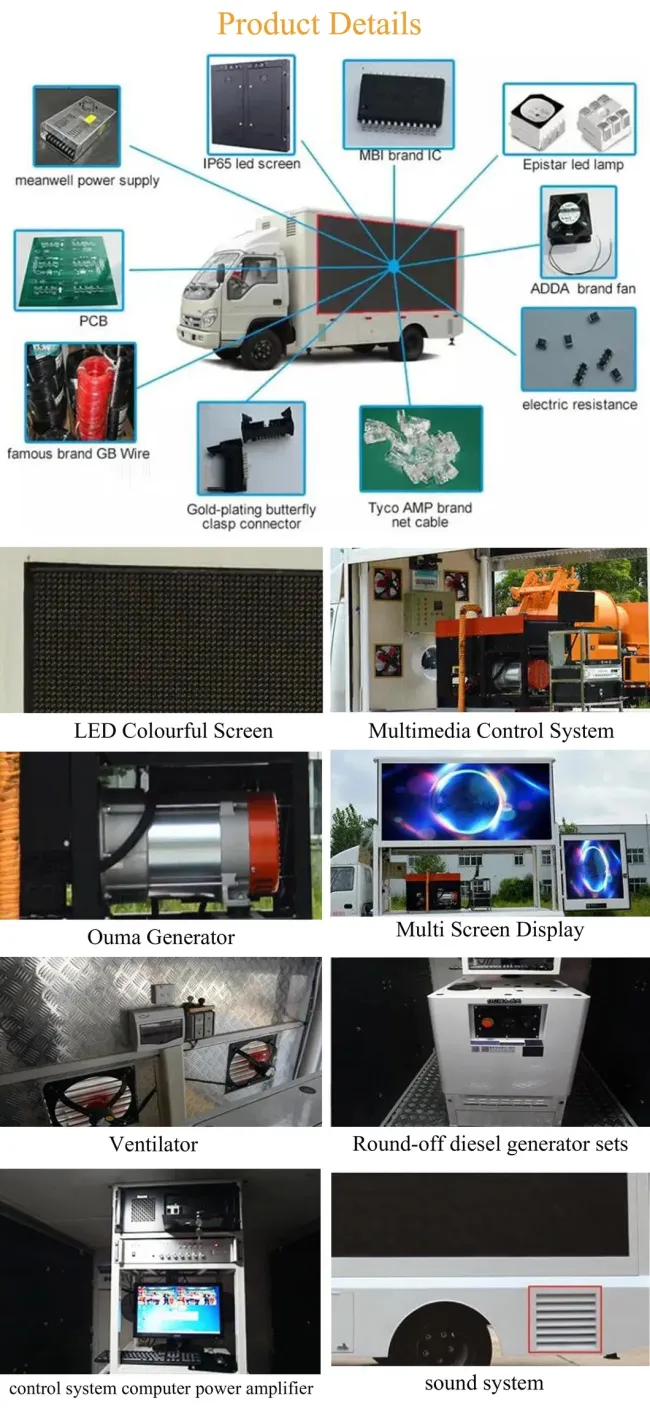

1. OUMA brand,Silent diesel generator, 15KW 2. One set industrial computer with control system 3. Sound system: Loudspeaker 4pcs, amplifier 1pc 4. Internal and external electrical distribution box. 5. Circulating ventilation and cooling systems. 6. 5CM composite steel frame body 7. Aluminum patterned floor |
||
| Remarks |

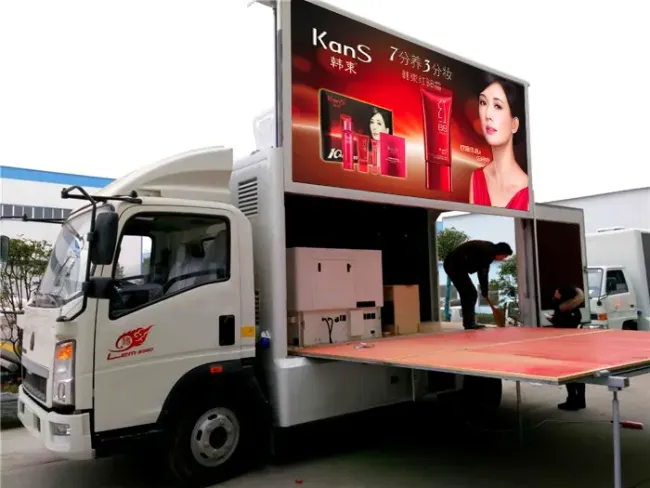

Equipped with Hydraulic stage The color of the superstructure is oprional. |
||
