Dongfeng Dust Suction 5cbm Garbage Sweeper Truck , Vacuum Cleaning Sweeper Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30days
Brand:
CLW
Product Description

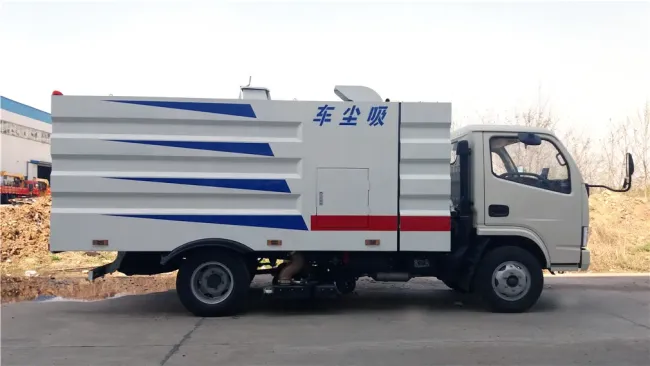

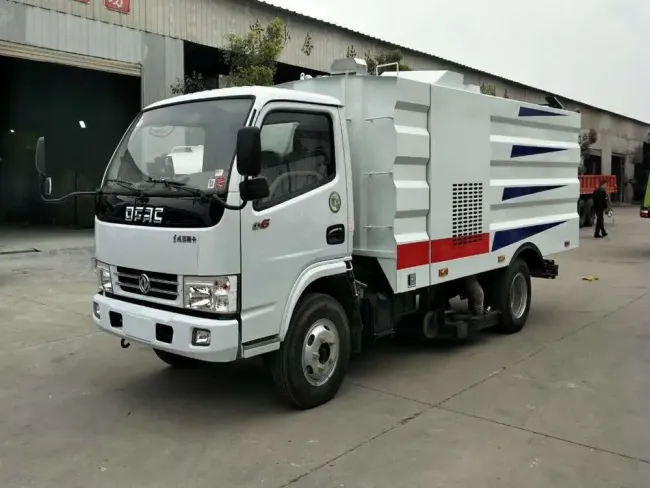

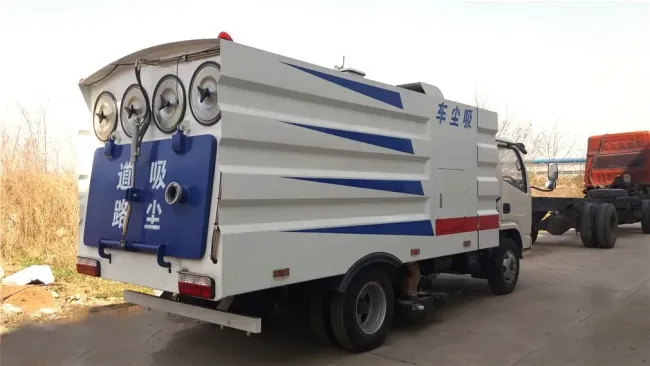

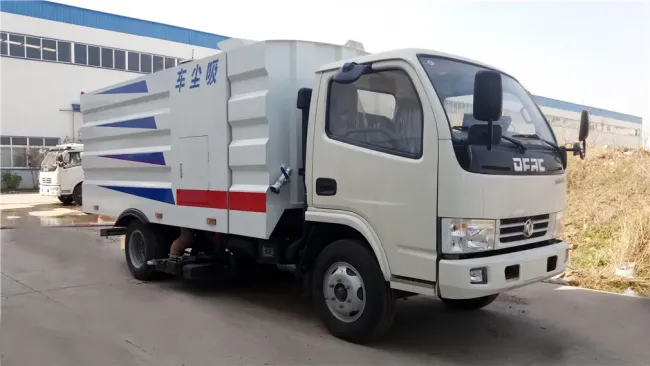

China Dongfeng dust suction 5cbm garbege vacuum sweeper cleaner collector truck
Product Description
We can supply all brands of special trucks, such as Dongfeng, , Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
Certification: ASM, ISO, BV, SGS, CCC etc.
Advantage:
- Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
- The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
- With efficient filtration system.
- Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
- Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
Product Details:
| Chassis | |||||
| Drive Model | 4X2, Left hand drive | ||||
|
Vehicle Main Dimensions |
Dimensions(L x W x H)(mm) | 6200x2000x2590 | |||
| Wheel base (mm) | 3308 | ||||
| Overhang (front/rear) (mm) | 1015/1815 | ||||
| Wheel track (front/rear) (mm) | 1504/1425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 5040 | |||
| Front/Rear axle loading(kg) | 2500/4000 | ||||
| Max. driving speed(km/h) | 110 | ||||
|
Engine |
Brand | CHAOCHAI | |||
| Horse Power(HP) | 102 | ||||
| Displacement (ml) | 3860 | ||||
| Emission standard | Euro III | ||||
| Gearbox | 5 forwarder & 1 reverse | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Brakes | Air brake | ||||
| Tire | 7.00R16, 6 tires with 1 spare tire | ||||
| Upper & Equipment | |||||
|
Tank |
Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 4.0 cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 1.0 cbm | ||||
| Operation detail | Max. Operation ability(m2/h) | 40000 | |||
| Max. Sucking dimension(mm) | 50 | ||||
|
Auxiliary engine |
Model | IS UZU Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kw/hp) | 55/75 | ||||
|
Blower |
Quantity(No.) | 1 | |||
| Brand | China famous brand | ||||
| Power(kw) | 18 | ||||
| Speed(r/min) | 2900 | ||||
|
Vacuum cleaner |
Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1800 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working width(mm) | 3000 | ||||
| Sucking Nozzle wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
|
Remarks |
Rear LED pilot lamp Self unloading box body The color will be designed on basis of your requirements. |
||||
