China Dongfeng 4X2 10m3 Vacuum Road Sweeper Truck Euro IV Diesel Engine for sale

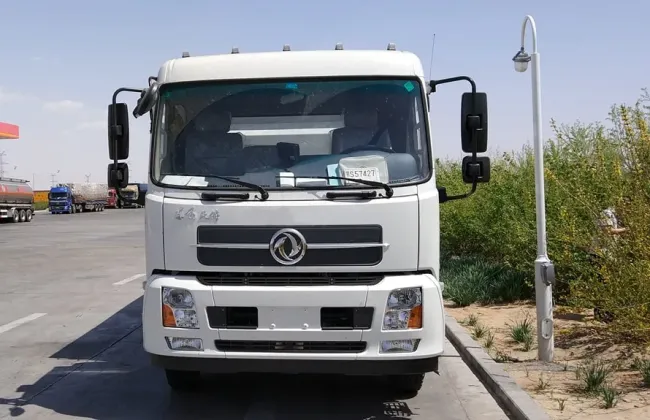

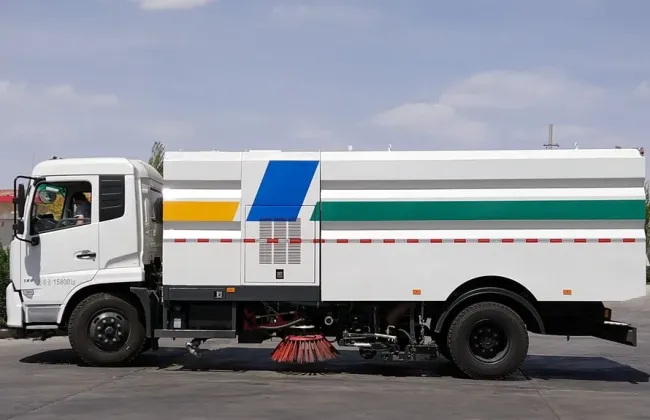

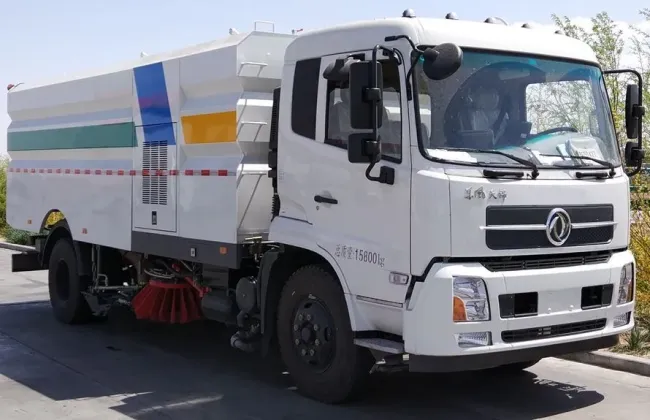

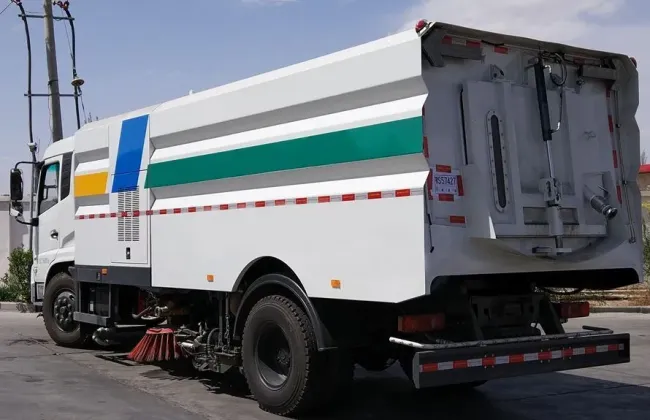

Dongfeng 4X2 10m3 Vacuum Road Sweeper Truck Euro IV Diesel Engine

Price Negotiable

Price: 15000-35000 per unit

MOQ: 1

Delivery Time: 30 Days

Brand: CLW

Product Description

DONGFENG 4x2 10m3 Vacuum Sweeper Truck Euro IV Diesel Engine

Description:

1. We can supply all brands of special trucks, such as Dongfeng, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.

Advantage:

Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
With efficient filtration system.
Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.

Chassis
Drive Model	4X2, Left hand drive
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)		845025003100
	Wheel base (mm)		4700
	Overhang (front/rear) (mm)		1015/1815
	Wheel track (front/rear) (mm)		1504/1425
	Approach/Departure angle(°)		24/13
Weight in KGS	Curb Weight (kg)		10000
	Front/Rear axle loading(kg)		4500/9000
Max. driving speed(km/h)			110
Engine	Brand
	Horse Power(HP)		180
	Displacement (ml)		6700
	Emission standard		Euro IV
Gearbox	5 forwards & 1 reverse
Steering Gear	Power steering, hydraulic steering with power assistance
Brakes	Air brake
Tire	900R20 tire , 6 + 1(spare tire)
Upper & Equipment
Tank	Garbage tank	Tank material			Stainless steel 304
		Tank volume(cbm)			8.0 cbm
	Water tank	Tank material			Stainless steel 304
		Tank volume(cbm)			2.0 cbm
Operation detail	Max. Operation ability(m2/h)	70000
	Max. Sucking dimension(mm)	50
Auxiliary engine	Quantity(No.)	1
	Power(kw)	68
Blower	Quantity(No.)	1
	Brand	China famous brand
	Power(kw)	18
	Speed(r/min)	2900
Vacuum cleaner	Main Vacuum cleaner	Quantity(No.)		1
		Width(mm)		1800
	Side Vacuum cleaner	Quantity(No.)		2
		Width(mm)		600
	Max. Working width(mm)	3500
	Sucking Nozzle wheel	Quantity(No.)		4
		Height		Adjustable
Remarks	Rear LED pilot lamp Self unloading box body The color will be designed on basis of your requirements.
