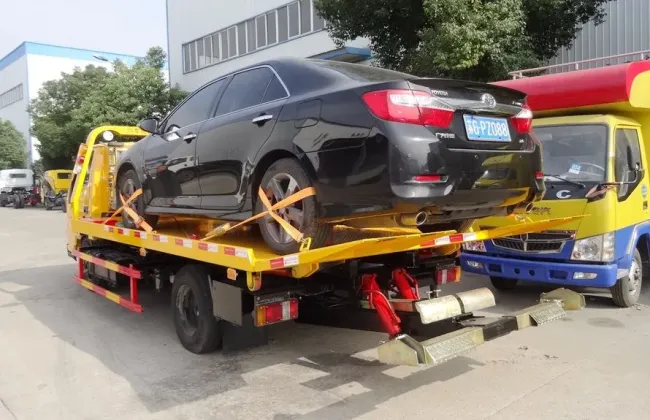

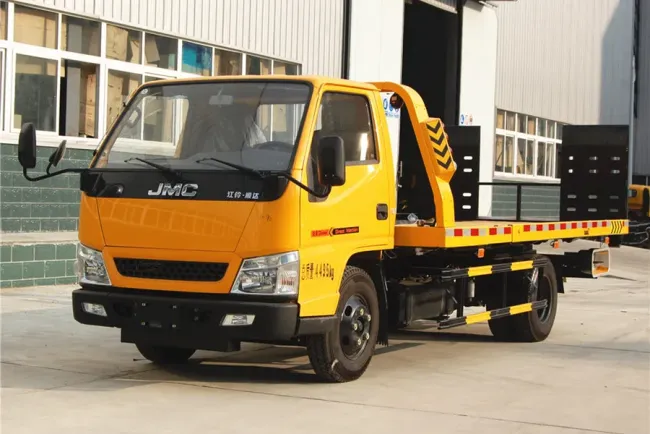

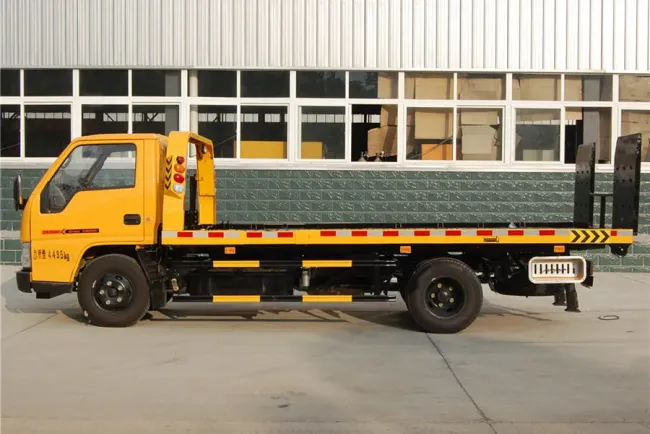

Jmc 3tons 4tons New Light Duty Wrecker Recovery Tow Truck
1. Purpose of flatbed tow truck: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of flatbed tow truc:howo,Dongfen,JAC,JMC,Foton,Shacman.
3. Spare parts of flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.
| JMC brand 4x2 hydraulic winch 4 ton towing car flat bed wrecker truck with wheel lift ( half landing or full landing) | ||
|---|---|---|
|
Basic information |
Gross Vehicle Weight (kg) | 8210 |
| Curb Weight (kg) | 4870 | |
| Rated Payload(kg) | 3340 | |
| Overall Dimension(mm) | 7440x2400x2400 | |
| Axle No. | 2 | |
| Cab Allowed Persons | 3 | |
| Wheelbase (mm) | 3815 | |
| F/R Suspension(mm) | 1155/2470 | |
| Max Speed(km/h) | 100 | |
| Appr/Dep Angle(º) | 12/20 | |
| Air condition | YES | |
|
Chassis Specifications |
Chassis Model | JX1083TK25 |
| Drive Type | 4x2 | |
| Axle Load(kg) | 3310/4965 | |
| Tyre Spec. | 7.50R16 | |
| Tyre No. | 6+ 1 spare | |
| Leaf Spring No. | 8/7+7 | |
| Front/Rear Track (mm) | 1680/1640 | |
| Service brake type | Compressed air brake | |
|
Parking brake type |
Spring energy, compressed air operating | |
| on rear wheels | ||
|
Superstructure of upper platform |
Platform material |
5mm stamping steel plate or |
| 3mm punching steel plate can be choosed | ||
| Platform size (L X W mm) | 5600 x 2300 | |
| Platform max lifting capacity (kg) | 3500 | |
| Platform landing gradient Angle(º) | <= 11 | |
| Hydraulic capstan winch- steel string length (m) | 21 meters , or 30 meters can be choosed | |
| Hydraulic capstain winch- steel string tension | can afford 4 tons | |
| Rear towing Max afford (kg) | 3000kg | |
| Auxiliary wheel | 1 set | |
|
Engine & Transmission specifications |
Engine Model | JX4D30A5H |
| Engine Brand | JMC automobile Co., Ltd | |
| Fuel type | Diesel | |
| Displacement (ml) / Power | 2892 / 112kw (152HP) | |
|
Engine Type |
Turbocharged inter-cooled, 4 cylinder | |
| in-line, water colling. | ||
| Emission Standard | Euro V or III, IV can be selected | |
| Rated speed | 2800rpm | |
| Max Torque | 382N.m | |
| Max torque(N.m/rpm) | 1800-2800rpm | |
| Driving type | Manual | |
| No of transmission gears | 6 Forward, 1 Reverse | |
|
Remark |
1. With power assisted steering, auxiliary wheels, emergency rotation | |
| lamp, spare tyre, hydrlic telescopic jack, wheel brace etc tools. | ||
