2m 2tons Water Tank Emergency Fire Truck 4×2 Diesel Fuel
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description

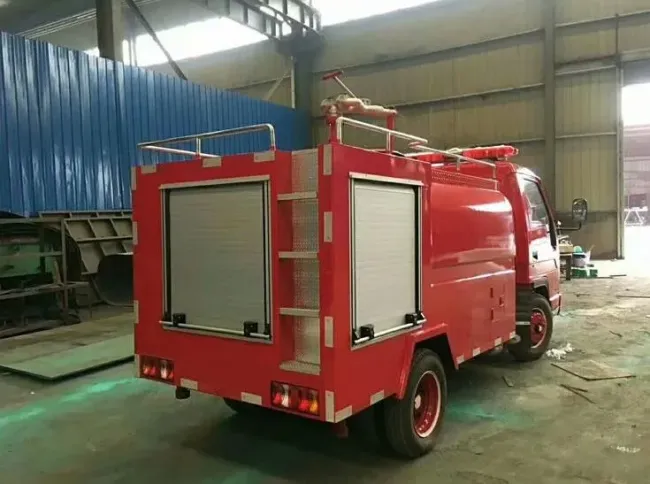

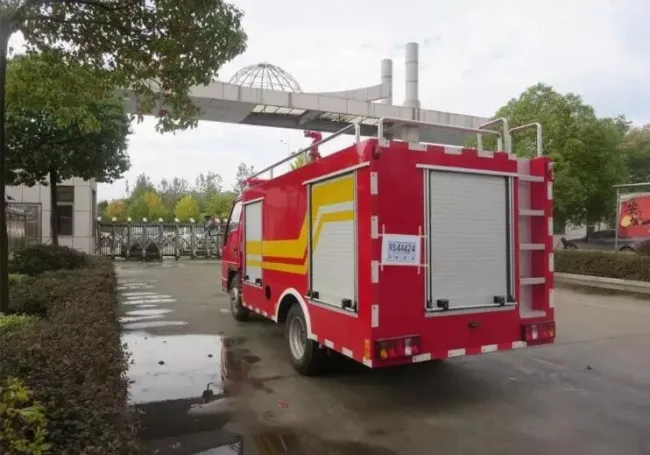

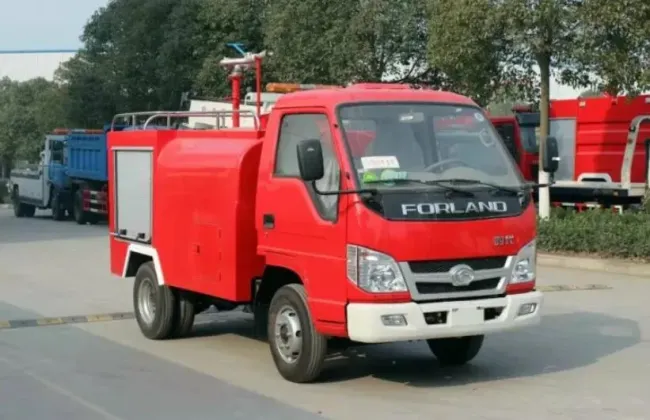

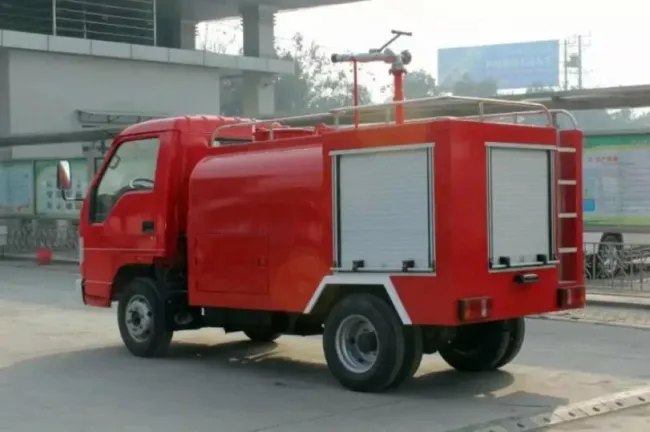

2mt 2 Ton China Water Tank Emergency Fire Fighting Truck
| FOTON Forland 4x2 small mini 3CBM fire engine water tank truck,fire fighting truck | |
| Overview | |
| Name | 3000 liters Fire Engine |
| Overall Dimension(LxWxH) | 5990X1960X2380(mm) |
| Total Mass | 8050Kg |
| Rated Payload | 5000Kg |
| Kerb Weight | 3050Kg |
| Cab | Double Cab |
| Passenger | 6 |
| Approach/Departure Angle | 19/15 |
| The Parameters of Chassis | |
| Manufacture/Model | Forland |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 3300 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1506/1466(mm) |
| Tyre | 7.00-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/ Rear Suspension | 1032/1658(mm) |
| Leaf Spring Number | 8/9+5, 6/8+4 |
| The Paremeters of Engine | |
| Manufacturer/Model | Yunei |
| Rated Power | 98hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 3856ml |
| Emission Standard | Euro 3 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 450N.m |
| Velocity | 3200rpm |
| The Parameters of Equipment | |
| Fire Monitor Range | 50-55 m |
| Pressure | 1.0-2.0 Mpa |
| Rotation Speed | 3200r/min |
| Flow Capacity | 15-60L/S |
| Division Time | 25S |
| Vertical Suction Range | 7m |
| Material of Tank | Carbon steel |
| Tank Thickness | 4mm |
| Water | 3000 L |
| Color | Fire Engine Red, or customizable |
|

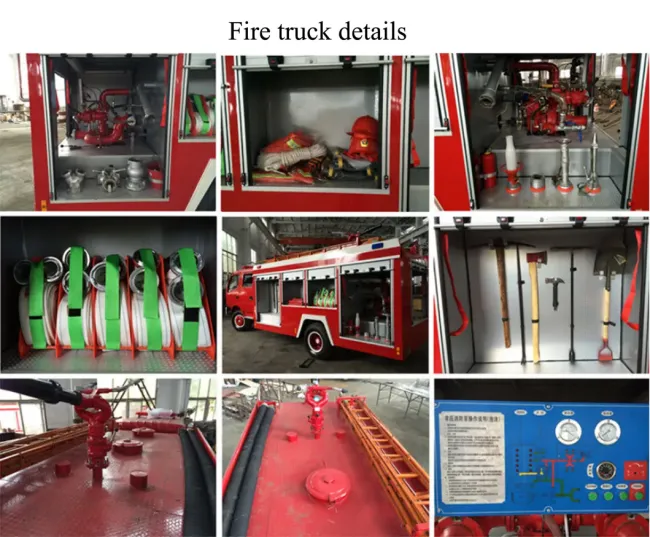

Common Accessories |
2 Φ100×4m fire suction hose; 1 Φ100 water filter; 6 Φ65×20m firehose; 2 Φ80×20m firehose; 4 hose strap; 4 hose bandage; 2 Φ65-80 hose adapter; 1 Φ100 same adaptor; 1 Φ65 water stream branch; 1 multi-jet squirt; 1 DC switch water; 1 pick; 1 ground wrench; 1 fireman's axe; 1 fire tricks; 1 spade; 1 crow bar. |
