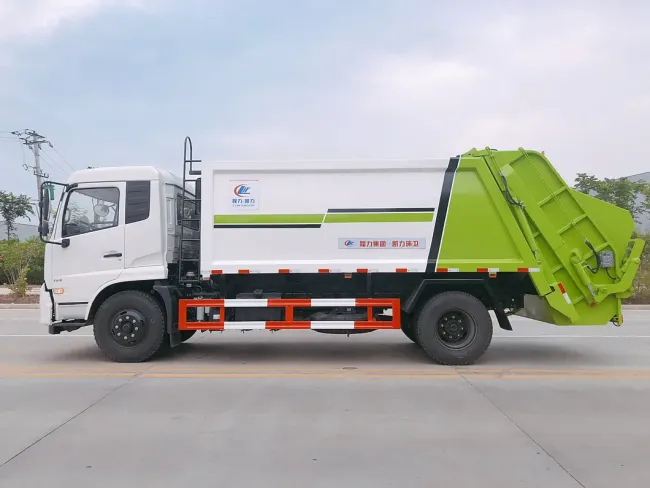

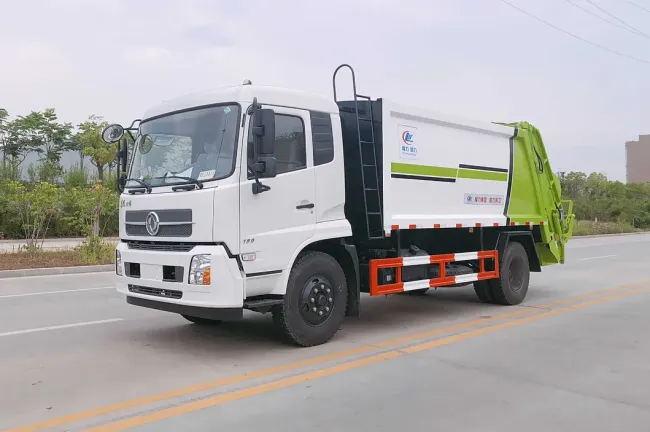

14m3 10m3 4X2 Refuse Collector Truck Transport Garbage Compactor Compressed Trucks
The collection garbage truck usually called garbage compactor truck, compression garbage truck, waste compactor truck, compactor garbage truck,etc.
The garbage compactor truck is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to municipal applications where large amounts of mixed industrial and domestic waste is to be collected.

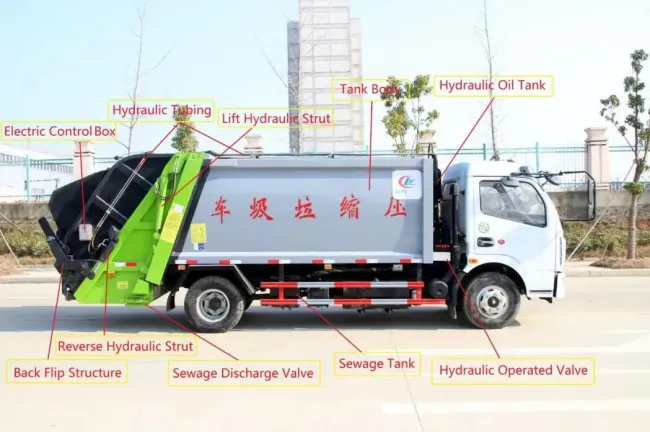

Our garbage compactor truck for sale is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed It can compact and dump the garbage automatically. Sewage will flow in the compartment completely to avoid re-pollute during transportation. As a professional special vehicle manufacturer in China, the garbage compression truck we produce is from 4cbm to 25cbm.
| Cabin | Driving type 4x2 | ||
| with A/C. Left Hand Drive. | |||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm | 8350*2490*3250mm | |
| Wheel base (mm) | 4700 | ||
| Approach/Departure angle(°) | 24/16 | ||
|
Weight in KGS |
Tare Weight | 9850 | |
| Front axles loading capacity | 4500kg | ||
| Rear axles loading capacity | 9000kg | ||
| Max. driving speed(km/h) | 95 | ||
|
Engine |
Brand | ||
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 180 HP | ||
| Emission standard | Euro V | ||
| Gearbox | 6 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Tire | 9.00R20 All radial tires with one spare, 7 pieces | ||
| Compression garbage box body system | |||
| Body Volume | 14m3 | ||
| Material Thickness | 5mm | ||
| Cycle Time of Filling(S) | ≤40 | ||

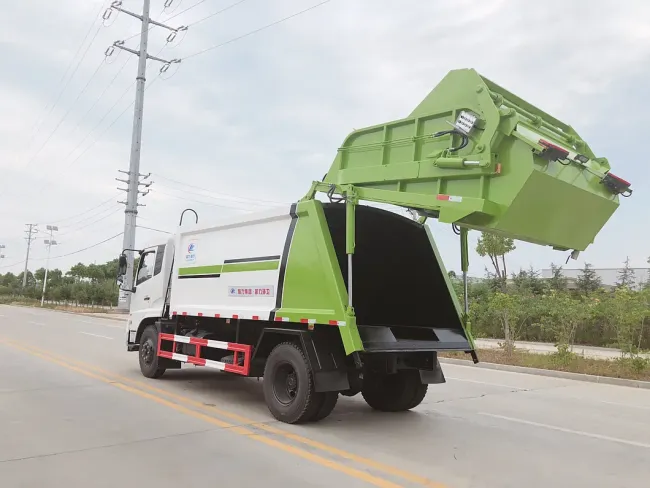

| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤60 | ||
| Working Pressure(MPA) | 16 | ||

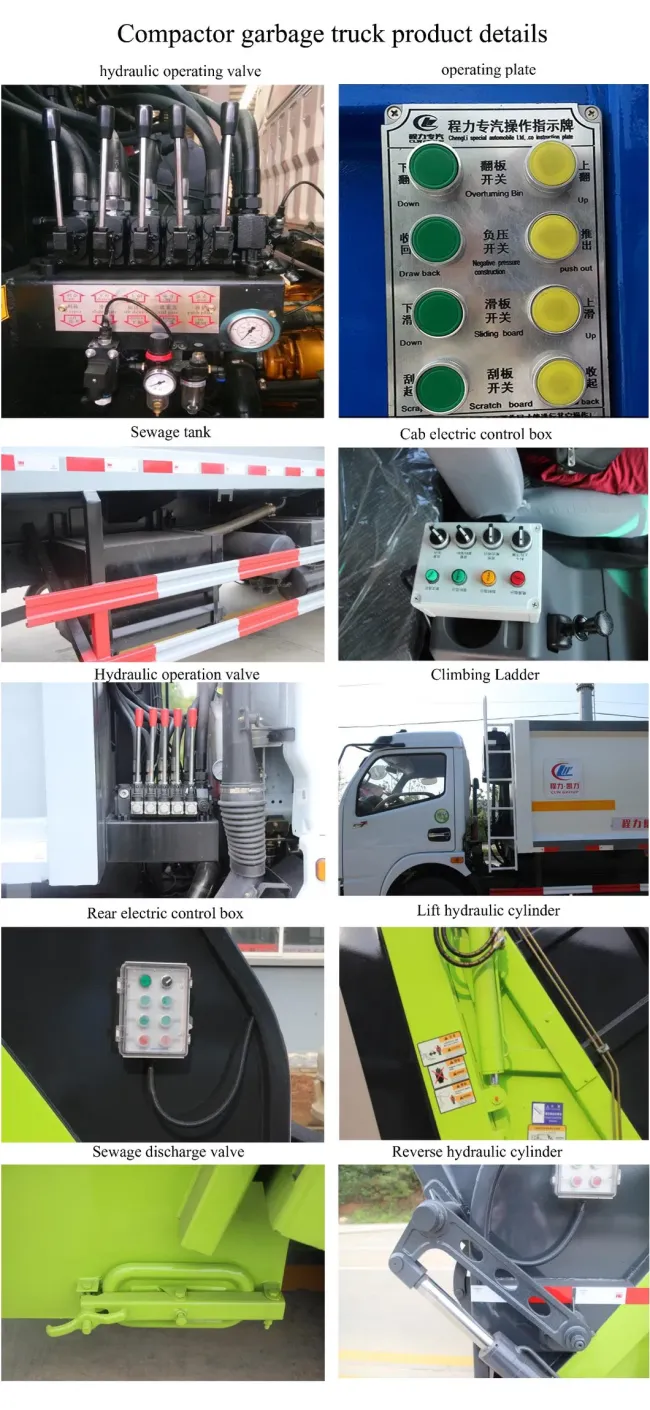

| Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. | |||
