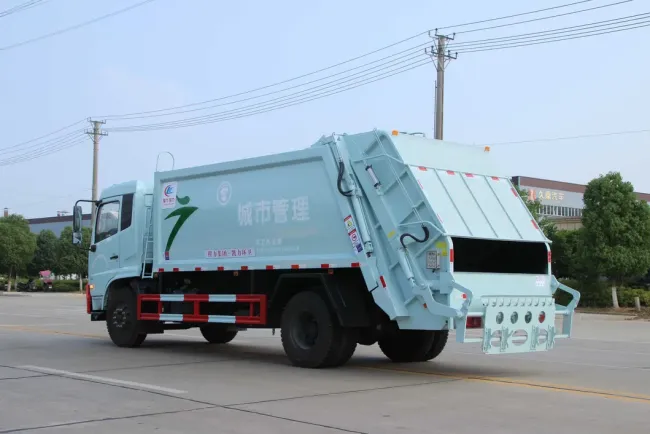

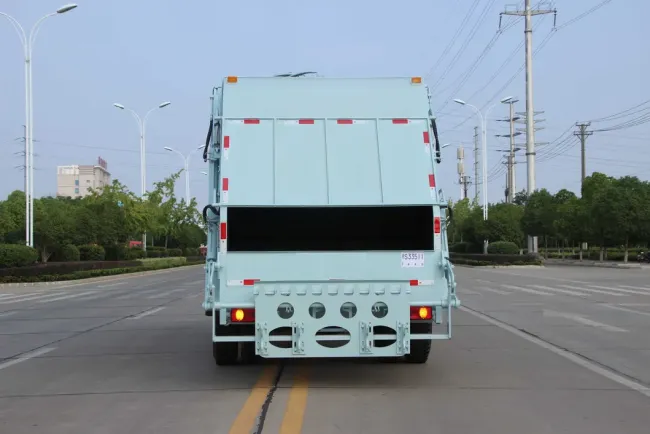

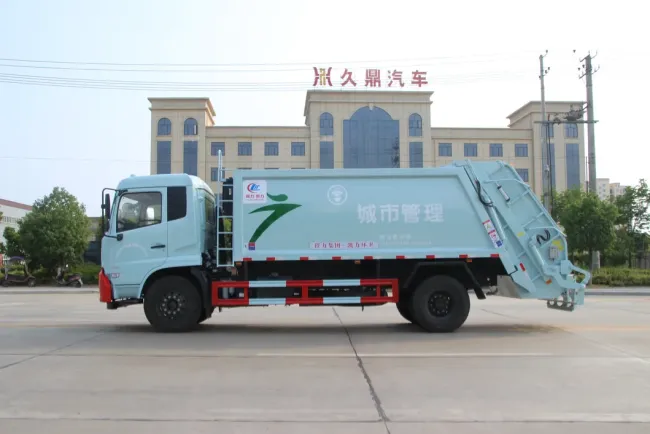

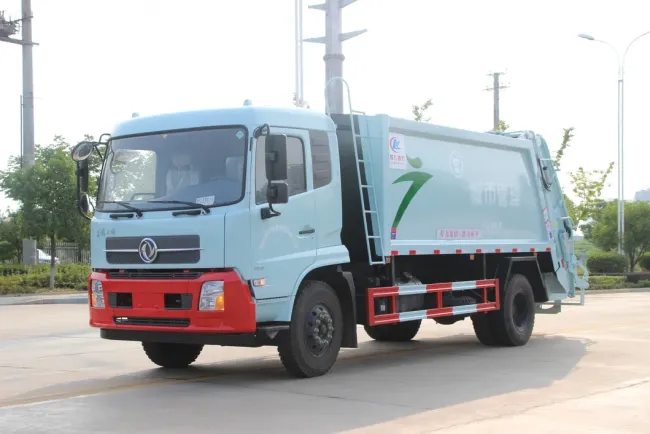

4X2 12000liters Refuse Collector Truck Compressed Garbage Compactor Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Factory Supply 4X2 12000liters Refuse Collector Compressed Garbage Compactor Truck
Product Description
- Compressed Garbage Truck change the dirty appearance of the city and eliminate the secondary pollution
- High compression ratio and large load, maximum crushing pressure is 12 tons, loading capacity is 2 times largeer than usual garbage truck.
- Easy Full Automatic Operation: computer control system for loading and unloading operations.
- One Person Operation: Reducing sanitation working, greatly improves the working environment.
- Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
Specifications of 12CBM Garbage Compactor Truck
| Dongfeng 12CBM Garbage Compactor Truck | |||||
| Overall Dimension | 8000×2500×3250 mm | Gross Vehicle Weight | 15955 kg | ||
| Curb Weight | 9700 kg | Loading Weight | 6100 kg | ||
| Wheel Base | 4500 mm | Front / Rear Axle | 5000 kg / 10000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | |||||
| Engine horsepower | 190HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 6 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 10.00 (6 pieces with one spare) | ||||
| Capacity | 12CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||

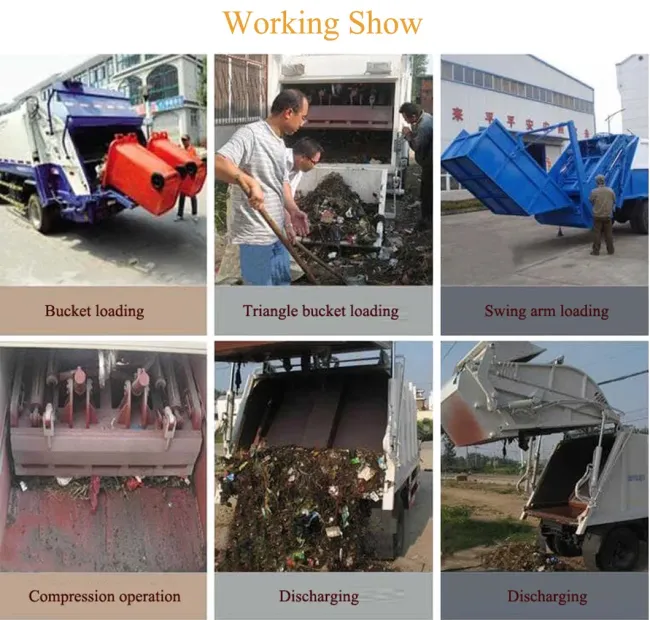

| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||

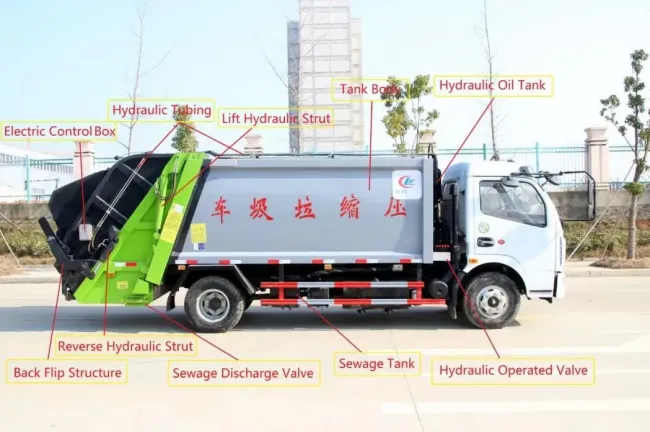

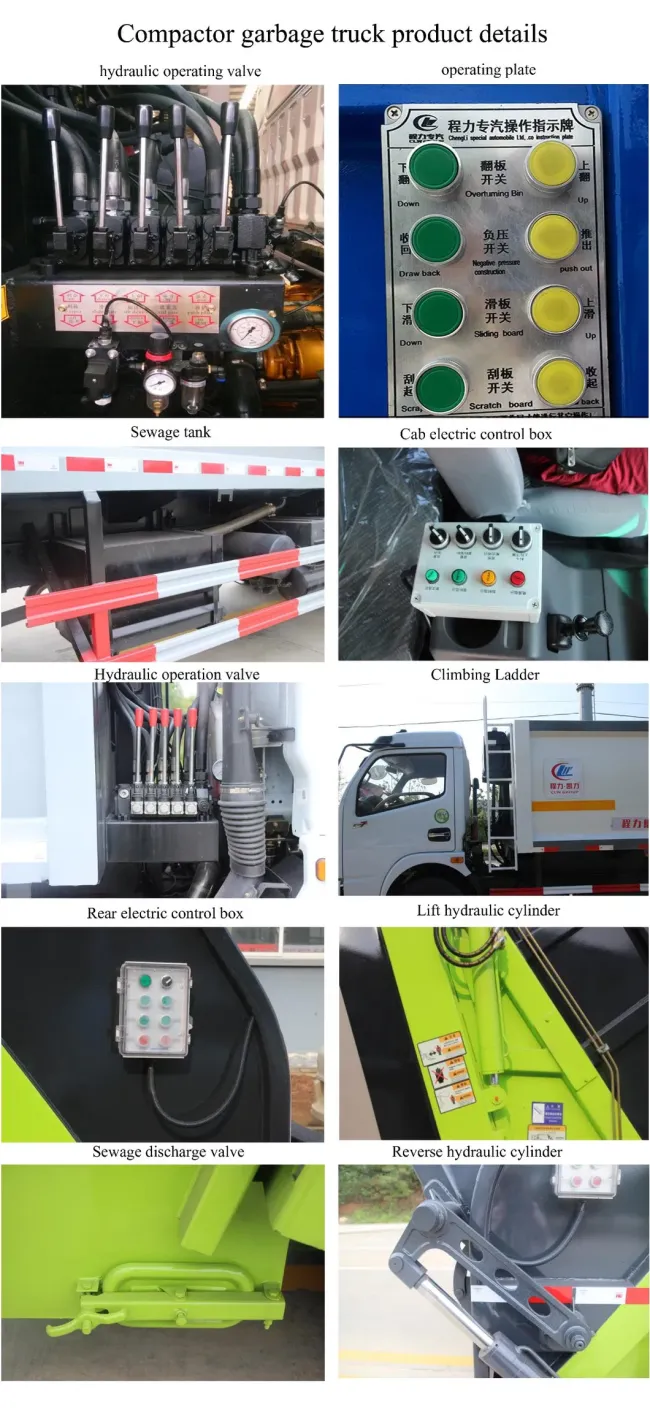

| 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2.Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
