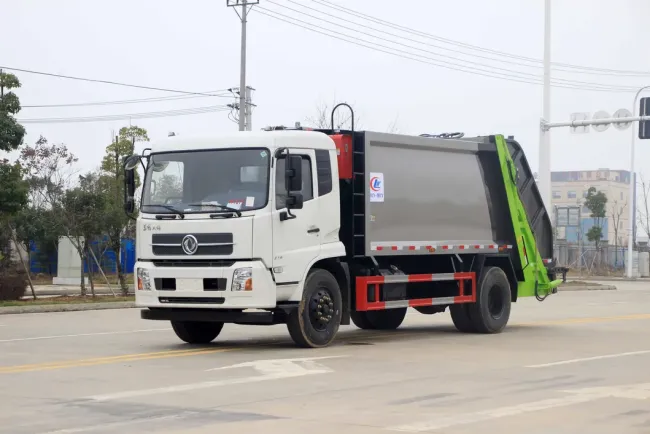

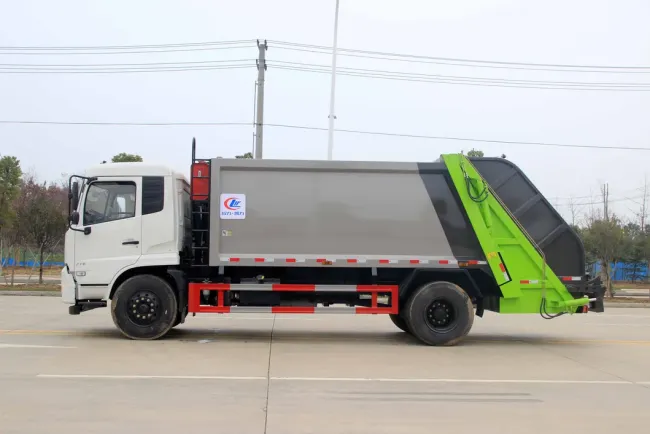

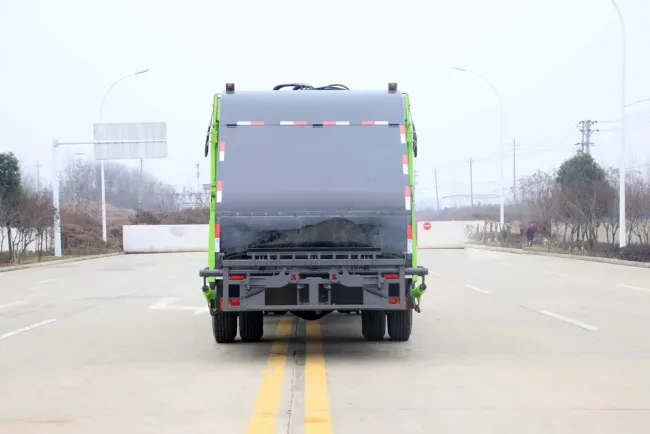

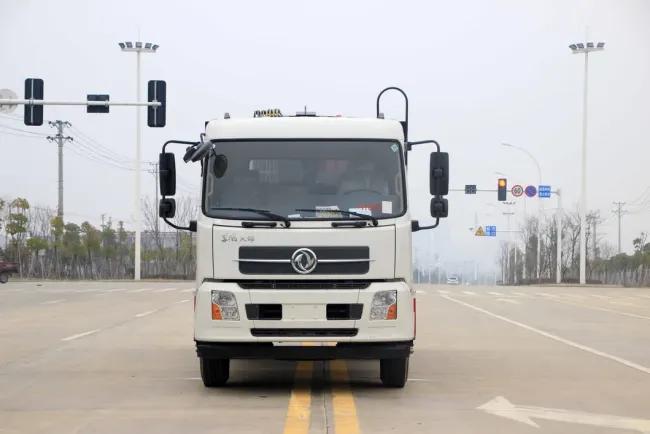

14m3 Dongfeng Garbage Compactor Truck High Pressure Compressed Rubbish Collector truck

Price Negotiable

Price: 15000-35000 per unit

MOQ: 1

Delivery Time: Negotiable

Brand: CLW

Product Description

14m3/8tons/10tons Dongfeng Garbage Compactor Truck High Pressure Compressed Rubbish Collector

Product Description:

Garbage Compactor Truck change the dirty appearance of the city and eliminate the secondary pollution

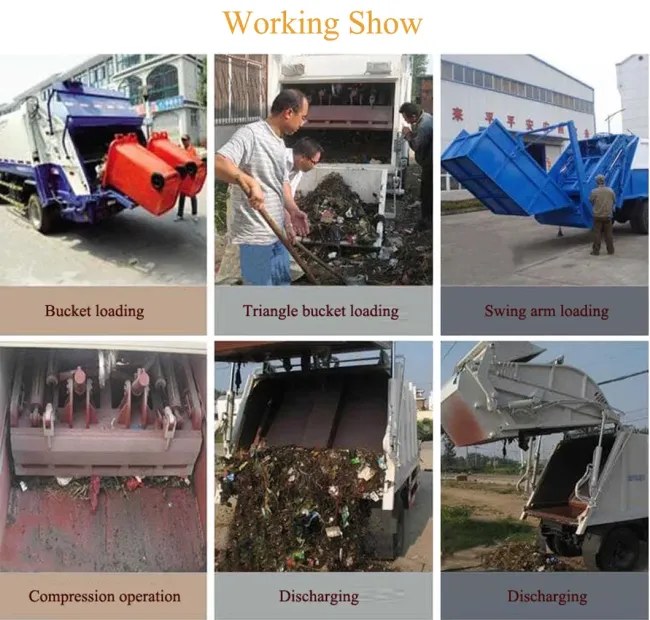

Easy Full Automatic Operation: Computer control system for loading and unloading operations.
One Person Operation: Reducing sanitation working, greatly improves the working environment.
Double Operation System: Computer control system and manual operation greatly improves the vehicle usage rate.

Specifications:

Cabin	Driving type 4x2
	With A/C. Left Hand Drive.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		835024903250mm
	Wheel base (mm)		4700
	Wheel track (front/rear) (mm)		1504/1425
	Approach/Departure angle(°)		24/16
Weight in KGS	Tare Weight		9850
	Front axles loading capacity		4500kg
	Rear axles loading capacity		9000kg
Max. driving speed(km/h)			110
Engine	Brand		Cummis
	Type		4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		180 HP
	Emission standard		Euro III/IV/V
Gearbox	6 forwards &1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Tire	9.00R20 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume		14m3
Material Thickness		5mm
Cycle Time of Filling(S)		≤40
Lifting Time of Filler(S)		8-10
Time of Discharging		≤60
Working Pressure(MPA)		16

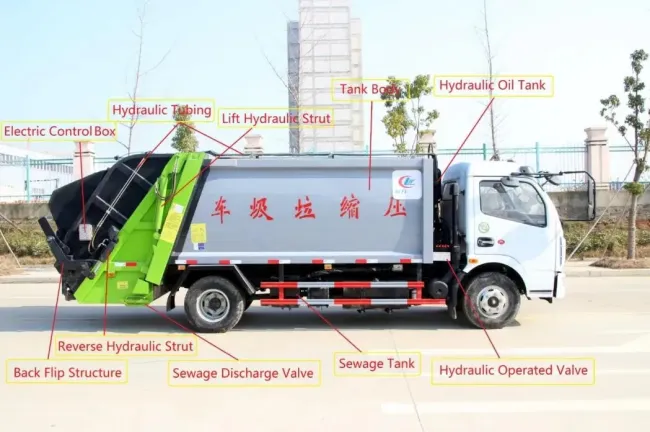

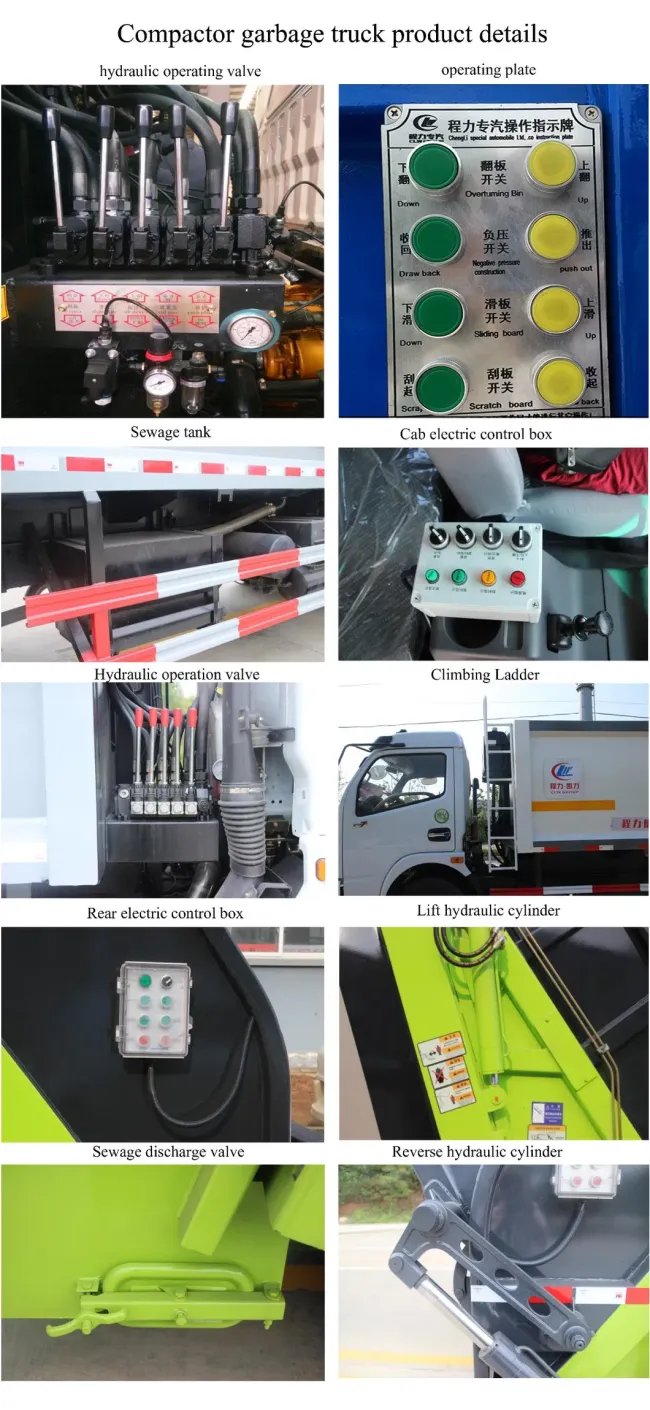

Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage, and the sewage generated in the process of the compression all go into the sewage tank.

Products Catalog:

LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
Truck with crane / Truck mounted crane
Dump Truck / Tipper Truck/Side Tipper/End Tipper
Fire Fighting Truck / Fire Truck / Fire Vehicle
Concrete Mixer Truck
Van truck /Refrigerated truck
Fecal suction truck / Sewage suction truck,
Cement Powder Tank truck/ Bulk cement truck
High-altitude operation truck,

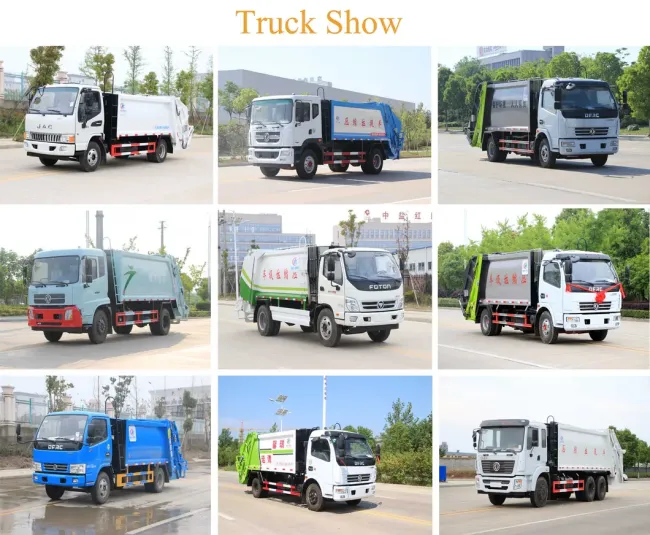

Self-loading garbage truck, garbage compactor truck, sealed garbage truck
