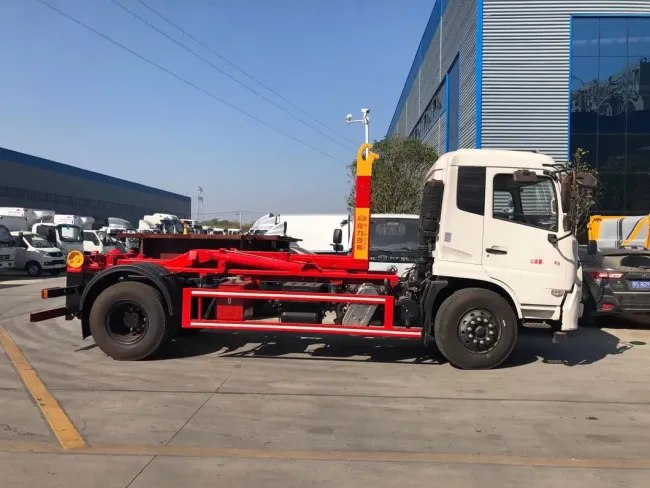

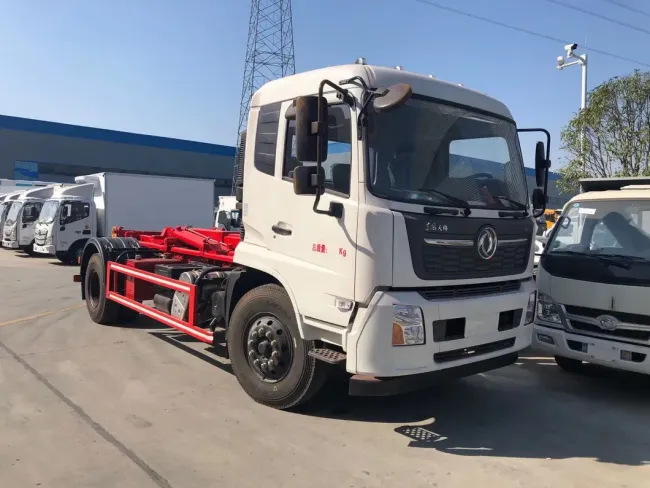

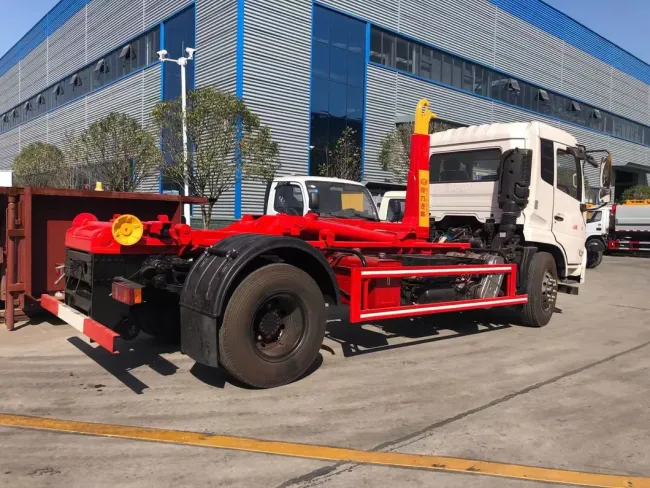

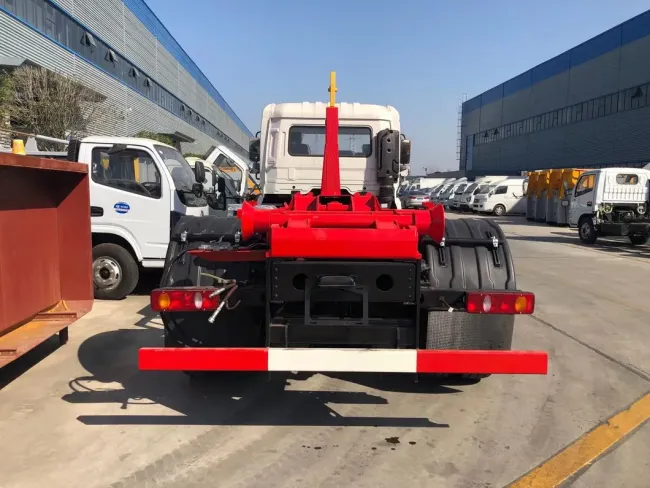

8-10 Cubic Meters Hook Swing Arm Garbage Truck
The 8-10 cubic meters hook arm garbage truck is a versatile and efficient waste management vehicle designed for urban and rural garbage collection. It features a hydraulic hook arm system that can lift, transport, and unload large waste containers (typically 2-8 cubic meters) with ease.
-
Capacity: The truck carries 8-10 m³ of waste, making it suitable for medium to large-scale operations.
-
Hook Arm Mechanism: The automated arm securely grips standardized containers, reducing manual labor and improving efficiency.
-
Hydraulic System: Ensures smooth lifting and dumping operations with minimal effort.
-
Durability: Built with high-strength steel for long-term use in harsh environments.
-
Eco-Friendly: Some models include compaction technology to increase load capacity and reduce trips.
Ideal for municipal waste collection, residential areas, industrial zones, and recycling centers. Its compact design allows easy maneuvering in narrow streets.
-
Time-Saving: Quick container loading/unloading.
-
Cost-Effective: Low operational and maintenance costs.
-
Safety: Reduces physical strain on workers.
This truck is a reliable solution for modern waste management, enhancing productivity and cleanliness in communities.
| Drive type | 4*2, New condition, LHD | ||
|
Vehicle Main Dimensions |
(L x W x H)mm | 7300×2470×3150 | |
| Wheel base (mm) | 4500,4700 | ||
| Track front/rear mm | 1880/1800 | ||
| F/R Axle-Load | 5800/10000 kg, | ||
| Approach/departure angle | 20/16 | ||
| Curb weight | 7945 kg | ||
| GVW | 15600 kg | ||
| Max. driving speed(km/h) | 95 | ||
|
Engine |
Brand | ||
| Model | B170 33,B180 33,B190 33 | ||
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling; | ||
| Horse Power(HP) | 170,180,190 | ||
| Emission standard | Euro III | ||
| Gearbox | 6 forwards& 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Tire | 9.00R20,10.00R20, 7 pc including 1 spare tire | ||
| Steering Gear | power steering, hydraulic steering with power assistance | ||
| Equipment for Garbage Compactor | |||
| Garbage Box Material | Carbon Steel Q235 | ||
| Garbage Box Volume | 8-10cbm | ||
| Hydraulic System | Chinese brand,consist of oil pump,oil cylinder,front valve,rear valve,pressure gauge,oil box,filter and pipelines.Front valve controls push panel and strike-off board. | ||
