JAC Oudoor LED Screen Mobile LED Advertising Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
JAC Oudoor LED Screen Mobile LED Advertising Truck
Description:
- Purpose of LED screen billboard truck: For advertising, product promotion, brand promotion, draft activities, live shows sales, sporting events, vocal concerts, concerts, etc.
- Main parts of LED screen billboard truck: LED screen, Generator set, Computer, Control system etc.
- Optional items of LED screen billboard truck: Mobile stage, Scrolling light box.
- LED screen of LED screen billboard truck: SMD P4 P5 P6 P8 for optional.
- Generator brand of LED screen billboard truck: China famous brand and Internation brand for optional.
Product Specification
| Item No. | Parameters |
| Overall Dimension | 5995*2020*3060 mm |
| Country of origin | China Mainland |
| Drive model | 4x2, 2017 new condition , LHD |
| Color | Any need as required. |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4365 kg |
| Wheel Base | 3360 mm |
| Front/rear Overhang | 1015/1620 mm |
| Front/rear Tread | 1377/1425 mm |
| Approach/Departure Angle | 24/14 degree |
| Engine | 4JB1CN, Diesel Engine, Four Stroke, 4 Cylinders in line. |
| Engine horsepower | 98 HP Euro4 |
| Engine power | 2771 CC |
| Max Driving Speed | 90 km/h |
| Gear Box | MS1 , 5 Forward Gear, 1 Backward Gear |
| Tire Size | 7.00R16, 6 pieces with 1 spare tire. |
| Upper part of truck | |
| Cargo Box | 4200*1980*2100 mm |
| Engine of the LED screen and stage | Diesel engine; 15KW power Engine ; 4 Cylinders |
| Material of LED screen | Both left and right side P6 LED outdoor full color display screen, size 3840*1760mm. Back side full color, P6 LED screen, size 1280*1440mm |
Other details of LED system |
|

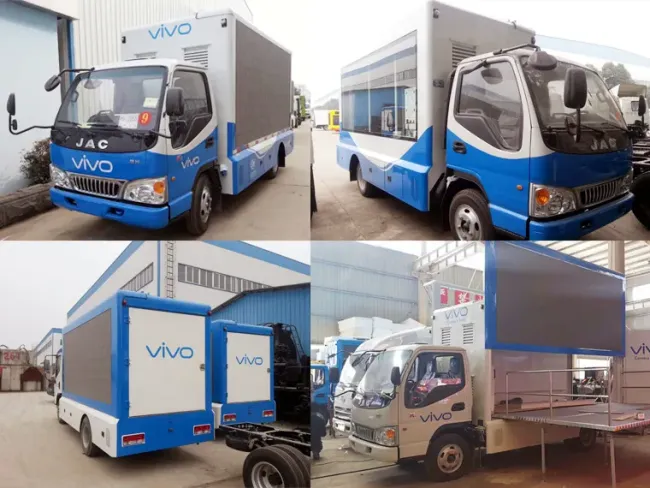

Reference Photos


Products Catalog:
- LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
- Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
- Truck with crane / Truck mounted crane
- Dump Truck / Tipper Truck/Side Tipper/End Tipper
- Fire Fighting Truck / Fire Truck / Fire Vehicle
- Concrete Mixer Truck
- Van truck /Refrigerated truck
- Fecal suction truck / Sewage suction truck,
- Cement Powder Tank truck/ Bulk cement truck
- High-altitude operation truck,
- Self-loading garbage truck, garbage compactor truck, sealed garbage truck
- Tractor
- High Pressure Cleaning Truck
- Sweeper Truck
- Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
