ISO11925-2 PLC Control Building Material Flammability Test Apparatus UP-5020
Product Overview
The flammability test furnace for building materials directly impacts a vertically placed sample with a small flame in a normal combustion environment to determine the flammability of building products. Using the German Kleinbrenner principle, this apparatus measures the combustion performance of Class B building materials under direct flame impact in the vertical direction for flame retardant grade B level assessment.
Compliance Standards
- ISO11925-2:2002 E "Test method for flammability of building materials"
- GB/T8626-2007 "Test method for flammability of building materials"
- DIN53483 DIN 4102-1
Technical Specifications
| Ambient Temperature | 15ºC~25ºC |
| Relative Humidity | ≤85% |
| Supply Voltage & Power | 220V 50HZ 100W |
| Gas Source | Liquefied petroleum gas |
| Burner Application Time | 15s |
| Control System | Single chip control, digital display |
| Burner Specifications | Φ0.17mm aperture, 20mm±2mm flame length, 45° tilt capability |
| Flame Application Range | 1s-99s (±0.5s), adjustable with ±0.2s accuracy |
| Combustible Gas | Propane with >95% purity |
| Combustion Box Dimensions | W835 × D400 × H815mm |
Key Features
- Ergonomic operation design
- 1.5mm thick brushed stainless steel plate construction
- Double-angle observation with tempered heat-resistant glass doors
- Modified hand-held igniter for durable combustion
- Ignition source adjustable to vertical or 45 degrees
- Precision regulating valve for flame height adjustment
- Sample holder with up/down and back/forth movement capability
- Equipped with two sample holders
- Includes flame measuring ruler
- High automation with accurate experimental data

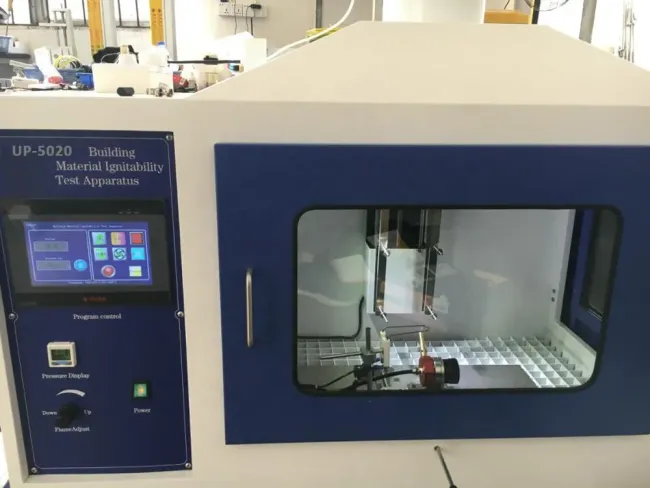

Product Images
Our Service Process
Customer Inquiry Process Discussing testing requirements and technical details, suggesting suitable products, and providing customized pricing.
Specifications Customization Creating drawings for customized requirements, providing reference photos, and confirming final solutions and pricing.
Production and Delivery Manufacturing according to confirmed requirements, providing production progress photos, conducting calibration, and arranging shipment.
Installation and After-Sales Field installation support and comprehensive after-sales service provision.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical issues, contact us via email or phone for diagnosis and solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent orders receive special arrangement.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin use. On-site installation assistance available when necessary.
