UP-2003 High Precision Universal Tensile Tester Machine Durable Tensile Strength Testing Machine
The UP-2003 testing machine features a newly designed microcomputer-type top pressure meter. This advanced instrument completely transforms traditional material test machines by eliminating heavy construction, complex operation, and single performance limitations. The structure utilizes high-grade baked paint processing with aluminum extrusion sealed boards, built-in high precision, low resistance, and zero-clearance roll strain screw rods with oriented columns. The control system offers high-speed data acquisition and operation, employing a double column and double screw rod structure that significantly increases testing capacity up to 20,000N maximum.
| Design Standards | GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986 GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ASTM E4, BS 1610, DIN 51221, ISO 7500, EN 10002, ISO 527, ASTM D628, ASTM D638, ASTM D412 |
|---|---|
| Model | UP-2003 |
| Range of Speed | 50-400mm/min |
| Motor | AV Servo Motor |
| Capacity Options | 5, 10, 20, 50, 100, 200, 500KG optional |
| Resolution | 1/150,000 |
| Effective Testing Space | 400mm MAX |
| Accuracy | ±0.5% |
| Operation Method | Windows X P, Win7 operation, computer control |
| Standard Accessories | Computer, printer, system operation manual |

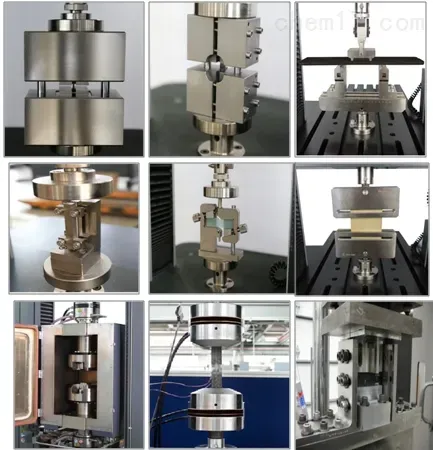

| Optional Accessories | Customized clamps by appointment, force sensors, printer, operation manual |
| Weight | 400KG |
| Dimensions (W×D×H) | 80×50×150CM |
| Power | 1PH, AC220V, 50/60Hz |
| Stroke Protection | Upper and lower protection, prevent over preset |
| Force Protection | System setting |
| Emergency Stop Device | Handling emergencies |
This materials testing machine is applicable for testing tensile, compression, bending, peel, shearing force, peeling force, modulus of elasticity, and elongation of materials, components, and finished products for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, packaging, tape, film, solar cell, and various other materials.
- Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
- Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solution
- Production and Delivery: Manufacture according to confirmed PO requirements, provide production photos, conduct calibration, and arrange shipping
- Installation and After-Sales: Provide field installation and ongoing after-sales support
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, with an additional 2 months extension considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. Urgent requirements receive special arrangements.
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
We provide English operation manuals or videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
