Industrial Disk Fertilizer Mixers Blending Equipment 220V ODM for dry powder
Price:
Negotiable
MOQ:
1
Delivery Time:
30 work days
Product Description

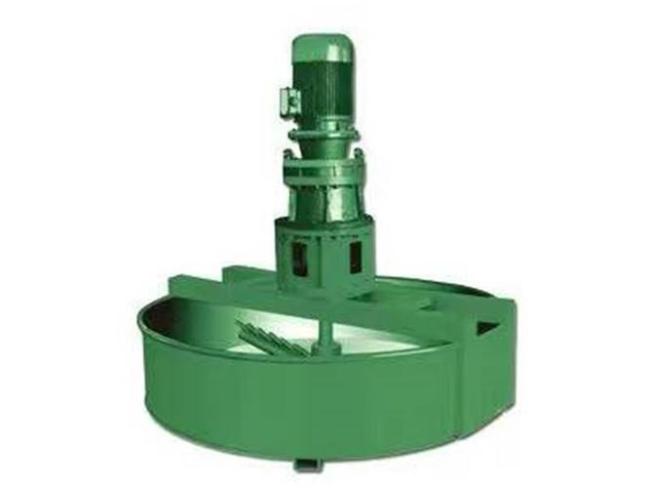

Disk Mixer
High-performance disk mixer engineered for efficient and consistent mixing operations across various industrial applications.
Product Description
The High-Efficiency Disk Mixer is a specialized industrial blending equipment designed for large-volume mixing of dry powders, granules, and powder-granule mixtures. It features a fixed circular mixing disk with a sloped bottom and a set of high-performance mixing arms equipped with adjustable blades. During operation, the mixing arms rotate at a constant speed, driving the blades to push materials along the disk wall for circular movement, while the sloped disk bottom promotes material turnover from the edge to the center. This dual-direction material flow ensures thorough cross-mixing of all components, eliminating localized segregation and achieving high uniformity in a short time. The machine is built with a sealed disk cover to prevent dust leakage, and its large-diameter discharge port enables fast, residue-free material unloading. With a robust structure and low energy consumption, it is an ideal choice for industries requiring large-batch, high-efficiency blending of bulk materials.
Application Scope
Specialized in bulk material mixing, it is widely applied in:
- Building Materials Industry: Mixing of cement, fly ash, sand, and additives for dry-mixed mortar and concrete premixes
- Fertilizer Industry: Blending of compound fertilizer granules, organic fertilizer powders, and trace element additives
- Mining & Metallurgy Industry: Mixing of mineral powders, ore concentrates, and flux materials for smelting processes
- Chemical Industry: Blending of industrial salt powders, pigment particles, and filler materials for chemical production
- Feed Industry: Mixing of grain powders, protein meal, and mineral supplements for compound feed production
Product Highlights
- High Uniformity Blending: The combination of rotating mixing arms and sloped disk bottom creates dual-direction material flow, ensuring full cross-mixing with uniformity rate up to high standards.
- Large Batch Capacity: The spacious circular mixing disk accommodates large volumes of materials, meeting the demand for high-output bulk production.
- Fast Discharging Performance: Large-diameter discharge port with a quick-opening valve enables rapid unloading, minimizing downtime between batches.
- Dust-Free Sealed Operation: Sealed disk cover and dust-proof feeding port prevent material leakage and dust pollution, maintaining a clean workshop environment.
- Adjustable Blade Design: Mixing blades can be adjusted for angle and height to adapt to different material properties and mixing requirements.
- Durable & Low-Maintenance: Wear-resistant blade materials and heavy-duty drive system ensure long-term stable operation; modular components facilitate easy maintenance and replacement.
| Item | Value |
|---|---|
| Model | PJ1600 |
| Mixer Diameter | 1600 mm |
| Mixer Wall Height | 400 mm |
| Rotation Speed | 12 r/min |
| Power | 5.5 kW |
| Production Capacity | 3-5 t/h |
| Overall Dimension | 1612×1612×1368 mm |
| Weight | 1200 kg |
