Semi Automatic Organic Fertilizer Production Line Manufacturing Machine 10T/H 22rpm
Price:
Negotiable
MOQ:
1
Delivery Time:
30 work days
Product Description
10 T/H Capacity Organic Fertilizer Production Line with Uniform 2-6mm Granules and Semi-Automatic Control

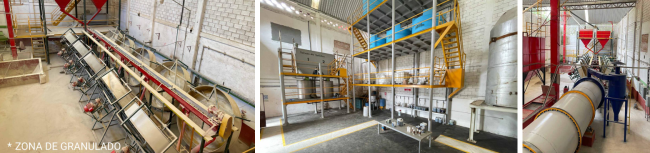

Production Process Overview
Fermented raw materials (55-70℃, moisture 32-38%) undergo two-stage crushing and precision screening, then enter the large-scale disc granulator. With intelligent atomized binder spraying, adjustable disc rotation (15-22 rpm) and angle (36-50°), materials form uniform granules. After high-efficiency drying, cooling, and double-layer screening, qualified granules are conveyed to automatic packaging (20-50kg/bag), complying with GB/T 19524.1-2017.
Application Scope
Designed for large-scale breeding bases, industrial organic fertilizer enterprises, and urban-rural solid waste treatment projects. Processes livestock manure, crop straw, urban sludge, and other organic wastes into high-grade granule fertilizer for regional and inter-regional market supply.
Product Highlights
- 10T/H stable continuous output, annual capacity 70,000-90,000 tons, supporting 10-12 hours uninterrupted operation
- Large disc structure (diameter 4.5-5.2m), granulation rate ≥92%, granules uniform (2-6mm) with excellent fluidity
- Semi-automatic central control, labor saved 40% vs. traditional lines; energy-saving configuration reduces costs by 25%
- Closed conveying + efficient deodorization, meets GB 18595-2019 standards; easy maintenance with durable components
Technical Specifications
| Item | Specification |
|---|---|
| Capacity | 10 T/H (continuous) |
| Layout Space | 800㎡ |
| Granule Size | 2-6mm (customizable) |
| Disc Diameter | 4.5-5.2m (customizable) |
| Disc Rotation Speed | 15-22 rpm (adjustable) |
| Operation Mode | Semi-automatic (central control) |
| Voltage | 380V/3Ph/50Hz |
| Power Consumption | ≤150 kW/H |
| Labor Requirement | 5-7 operators/shift |
| Finished Moisture | ≤12% |
