Automatic Superhard Machine Tool Re-Innovation - Automatic Tool Setting
Price:
US $94,000 / Piece
MOQ:
1 Piece
Delivery Time:
Negotiable
Product Description
Product Description

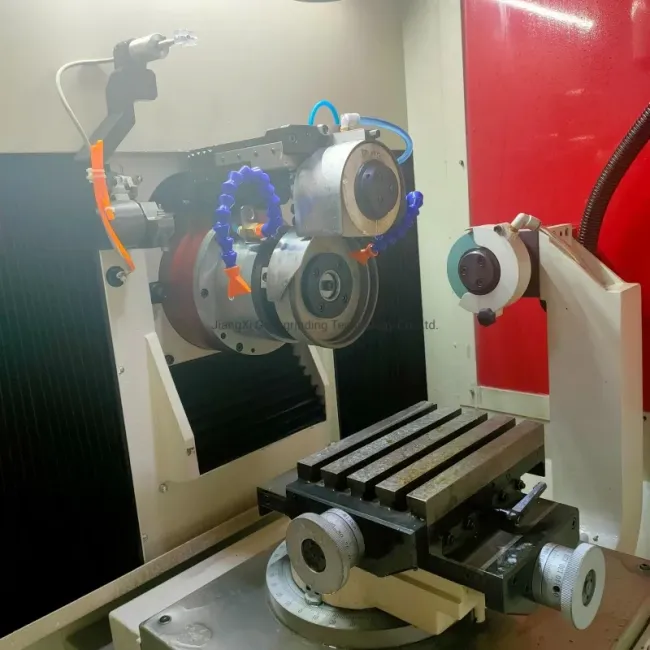

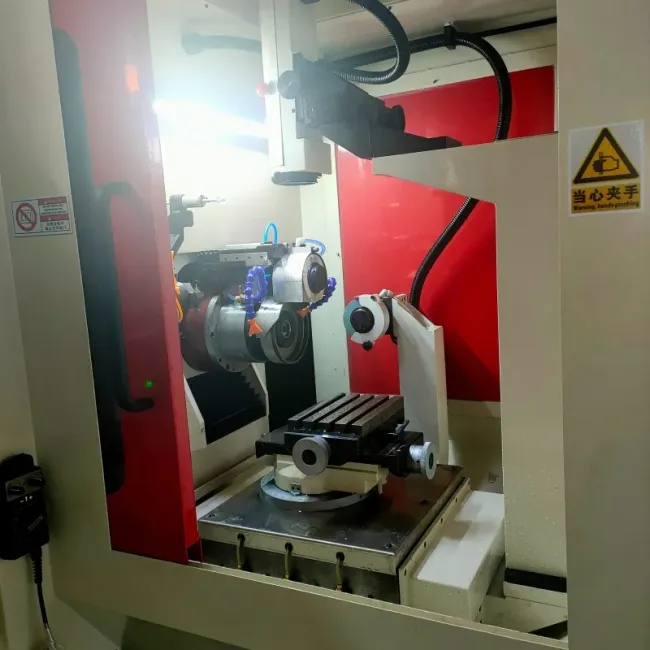

BT-150D is made of grinding wheel oscillation axis(X-axis), grinding wheel tilt angle axis (B-axis), rotation axis in the horizontal plane(C-axis), working piece feeding axis(Y-axis). working piece feeding axis(Y-axis) is equipped with raster rule, and the closed loop position feedback is used to ensure the precision of micron level grinding.
The tool grinder is reliable in performance and it is suitable for massive production of carbide inserts, PCD and CBN inserts. Once centering is finished, grinding will be done automatically, realizing constant pressure grinding and flexible feed. The even consumption of grinding wheel can be measured and compensated by the system, so production with long cycle time can be achieved.![]()
The tool grinder is reliable in performance and it is suitable for massive production of carbide inserts, PCD and CBN inserts. Once centering is finished, grinding will be done automatically, realizing constant pressure grinding and flexible feed. The even consumption of grinding wheel can be measured and compensated by the system, so production with long cycle time can be achieved.
| 1 |
Diameter of Grinding wheel
|
150mm
|
| 2 |
Grinding wheel center hole
|
40mm
|
| 3 |
Power of grinding spindle
|
5KW
|
| 4 |
Adjustable range of grinding speed(RPM)
|
5000~8000RPM
|
| 5 |
Servo motor swing frequency
|
0~50times/min
|
| 6 |
Grinding wheel movement range(X )
|
350mm
|
| 7 |
Changeable Clearance Angle
|
-5°~25°
|
| 8 |
Table movement range in feed direction(Y)
|
130mm
|
| 9 |
Work-piece rotation range in axial direction
|
360°
|
| 10 |
Linear scale resolution
|
0.001mm
|
| 11 |
Encoder resolution
|
1'
|
| 12 |
Max Magnification of Optical Microscope
|
0.7~4 times
|
| 13 |
Magnification of CCD Measuring System
|
80times
|
| 14 |
Coolant Tank with Filter Paper
|
About 70 L
|
| 15 |
Overall Dimensions L*W*H
|
1890*1650*1980mm
|
| 16 |
Weight With Coolant Tank
|
2400KG |
| 17 |
Electrical Supply
|
12Kw
|
| 18 |
Voltage Requested
|
380V/Three phase /50Hz
|
1. The warranty period of the whole machine is one year for life.
2. During the warranty period, all kinds of failures are repaired and free of charge in time, and all kinds of non-man-made damage to parts will be replaced free of charge in time.
3. Outside the warranty period, the supplier provides lifelong paid maintenance services. If the parts are replaced, the supplier supplies the demand side at a cost price.
