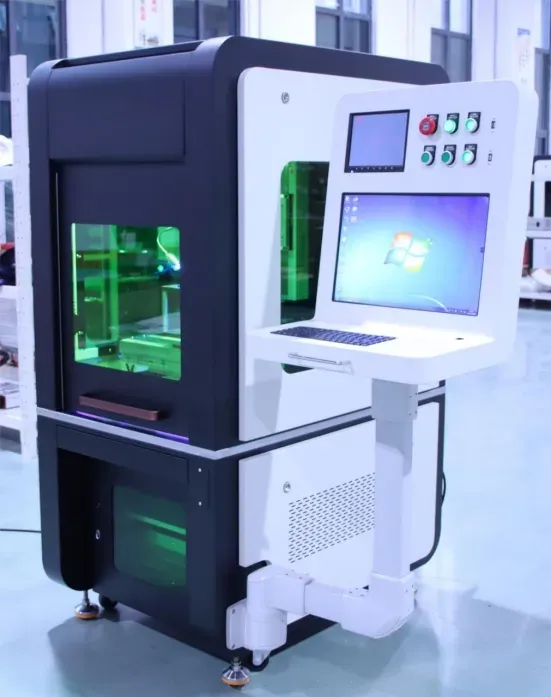

Fiber Laser Cutting Machine
Price:
US $42,000 / Piece
MOQ:
1 Piece
Delivery Time:
Negotiable
Product Description

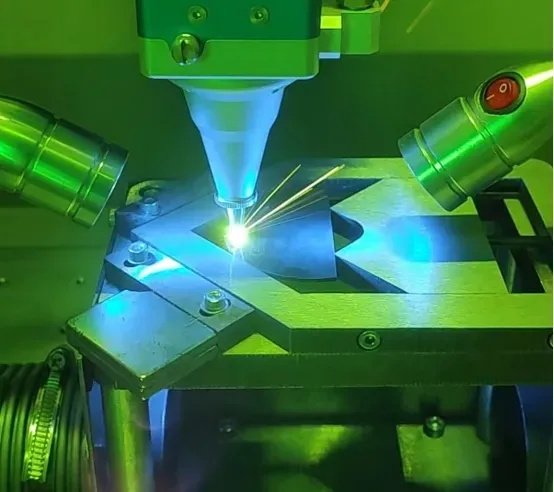

Laser cutting is a new type of cutting method, and also one of the important aspects of laser material processing technology. Fiber laser cutting machine is through the control of high precision fiber laser pulse width, pulse energy, peak power and repetition frequency and other parameters, so that it emits 1064nm wavelength infrared laser beam, after collimating focusing so that the laser focus spot diameter of 0.05 to 0.08mm, the temperature reached 1600 degrees Celsius, The superhard material is vaporized at high temperature and then is blown away by the high pressure gas coaxial with the laser to form a small hole, the use of precision numerical control software to control the movement platform to drive the workpiece and laser beam for relative motion to connect the laser hole into a line segment to achieve the purpose of cutting.
| Item | Parameter | |
Laser system |
Laser medium | Optical fiber |
| Central wavelength | 1080nm | |
| Average output power | 300w | |
| Maximum peak power | 3000w | |
| Maximum pulse energy | 30J | |
| Repetition frequency | 0.001~10kHz |
|
| Pulse width | 0.01~10ms |
|
| Bundle parametric product | ≤2@50μm | |
| Cooling mode | Air cooling | |
Machinability |
Maximum cutting thickness | 6mm |
| Operating stroke | Standard200*200mm | |
| Positioning/repeat positioning accuracy | ±0.01mm | |
| Minimum cut gap | 0.06mm | |
| Operating environment |
Operating voltage/frequency | Signal 220 (AC)±10%/50HzV |
| Operating temperature range | 10 ~ 40ºC | |
| Complete machine | Net weight | 400kg |
| Dimension(W×D×H) | 1350× 1450× 1730mm | |
