China Papular 5-Axis CNC Tool Grinder for sale

Papular 5-Axis CNC Tool Grinder

Price Negotiable

Price: US $99,800 / Piece

MOQ: 1 Piece

Delivery Time: Negotiable

Product Description

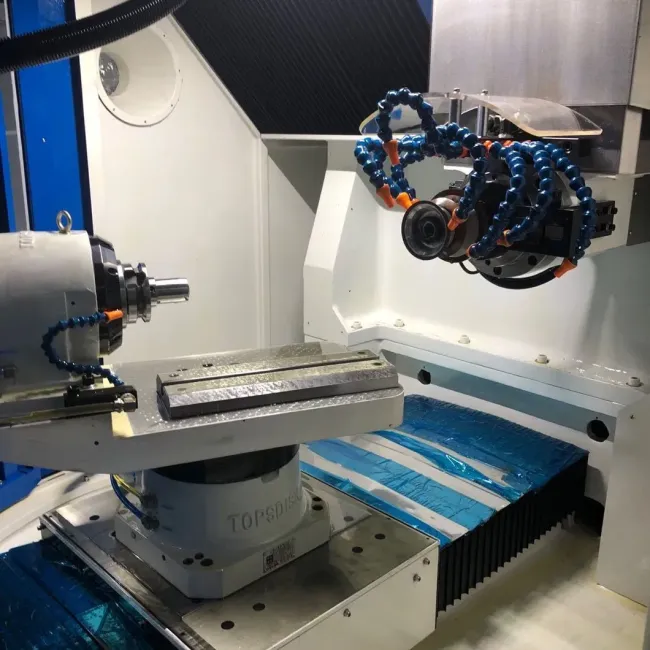

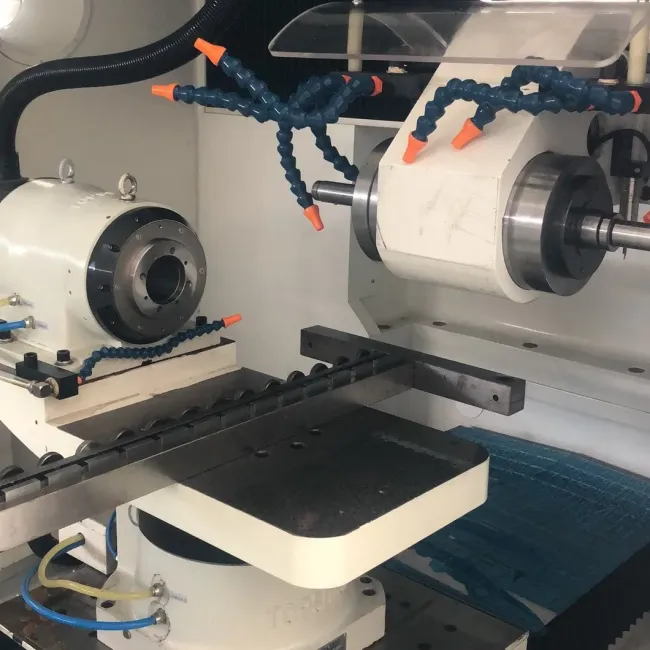

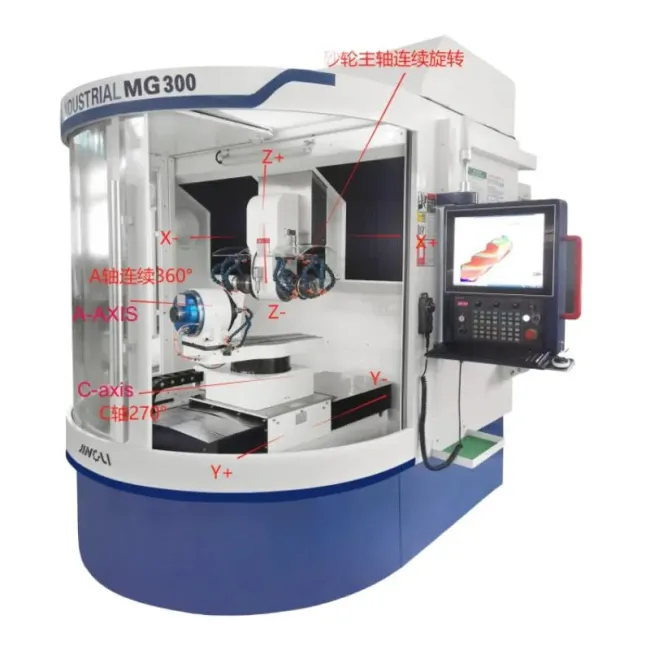

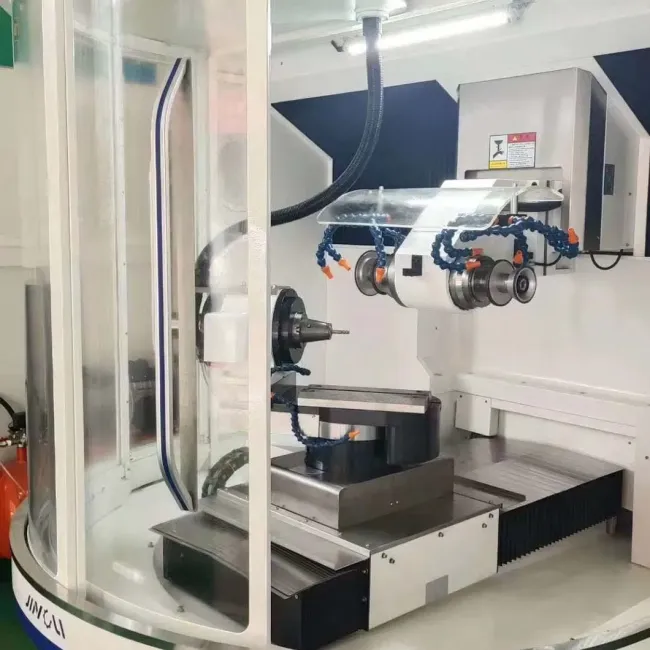

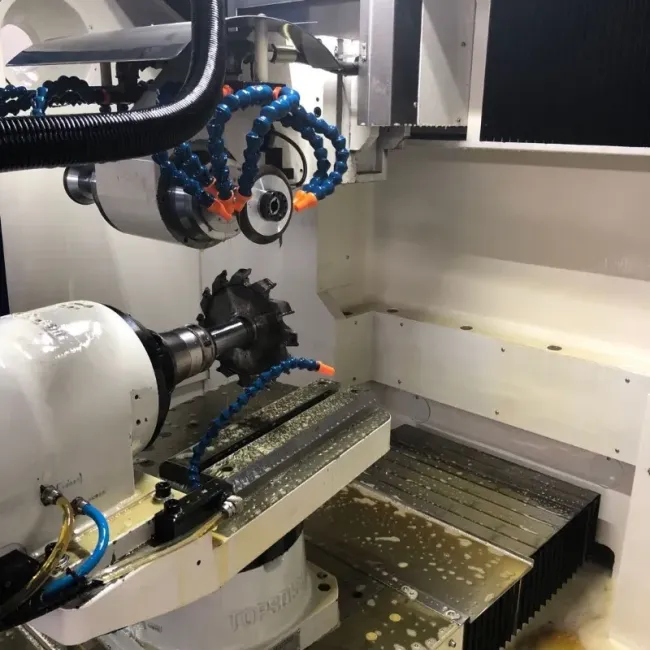

DM300 five- axis CNC tool grinder is a CNC tool production machine developed for full grinding tools. It is a five-axis and five-link machine, in which the X,Y,Z is a linear servo shaft and the A,C two axes are rotating shafts. It is specialized in grinding standard milling cutters, drill bits, reamers, non-standard cutters, molding knives and other cutting tools.It is a CNC tool production equipment with low consumption, high efficiency and high accuracy.It has extraordinary advantages in grinding high-speed steel, cemented carbide milling cutters and other material cutters.

Technical parameter of DM 300
1	X axis travel	950mm
2	Y axis travel	520mm
3	Z axis travel	280mm
4	A axis travel	Consecutive 3 6 0 °
5	C axis travel	220°
6	X axis positioning accuracy	0.005mm
7	Y axis positioning accuracy	0.005mm
8	Z axis positioning accuracy	0 005mm
9	A axis positioning accuracy	0.005°
10	C axis positioning accuracy	0.005°
11	Repeat positioning accuracy	± 0 . 00 2 mm
12	Minimum units	0.01°
13	Spindle rated power	1 8 KW; torque 3 0 NM; ( double extension spindle)
14	Speed of main shaft	0 - 10000 RPM/min
15	Number of grinding wheels installed	6-8 pieces
16	Maximum wheel diameter	Φ150mm
17	Diameter of Grinding Wheel Rod	HSK50E
18	Taper of work-piece shank	BT50
19	Maximum grinding length	Blade length: 2 6 0 mm; total Length: 3 0 0 mm
20	Minimum handle diameter	Φ3mm
21	Maximum work-piece shank diameter	Φ32mm
22	Maximum length of work-piece	Φ200mm
23	Working pressure	0 6~0 8 MPa
24	Cooling fluid flow	85L/min
25	Total rated power of equipment	3 2 kw ( three- phase AC3 8 0 V)
26	Dimensions of equipment	270023002800
27	Total equipment weight	6000kg
