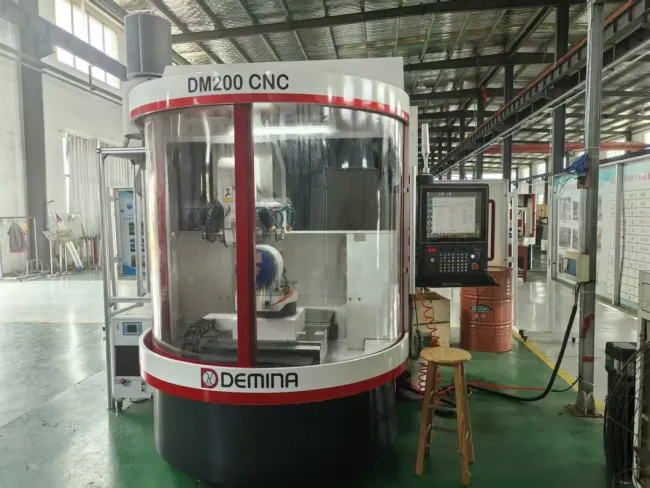

CNC Tool Grinding Machine Dm-200

Price Negotiable

Price: US $89,000 / Piece

MOQ: 1 Piece

Delivery Time: Negotiable

Product Description

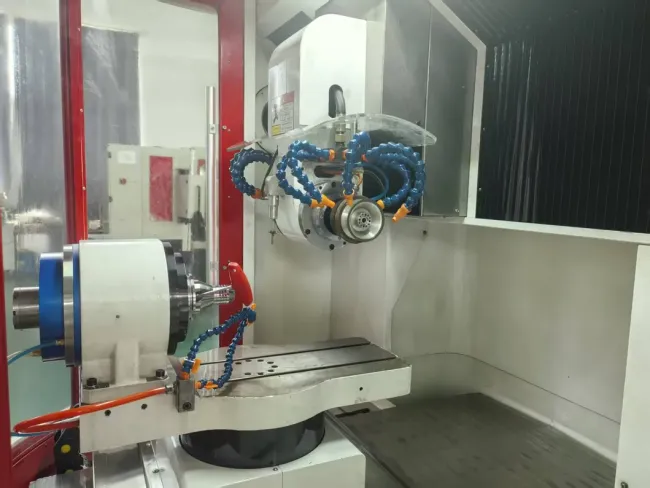

DM 200 five- axis CNC tool grinder is developed for tool production as well as resharpening. The machine tool is a iron casting based and rigid machine,in which the X ,Y ,Z is linear axis and the A ,C are rotating axis with the application of GSYun. It is specialized in the production of standard mills varied, drill bits, reamers, non- standard cutters, and other cutting tools, with high efficiency, high precision. In high- speed steel, cemented carbide tool manufacturing field it has extraordinary advantages.

processing materials: high- speed steel, cemented carbide and stainless steel with the diameter of 3-20mm;
Tool category: drill bit, reamer, tap and mill, include square and radius conner and ball nose. conicala mill, conical end mill, peofile cutter.

	Model	DM-200
1	X axis travel	800mm
2	Y axis travel	400mm
3	Z axis travel	220mm
4	A axis travel	Consecutive 3 6 0 Â°
5	C axis travel	220Â°
6	X axis positioning accuracy	0.005mm
7	Y axis positioning accuracy	0.005mm
8	Z axis positioning accuracy	0 005mm
9	A axis positioning accuracy	0.005Â°
10	C axis positioning accuracy	0.005Â°
11	Repeat positioning accuracy	Â± 0 . 00 2 mm
12	Minimum units	0.01Â°

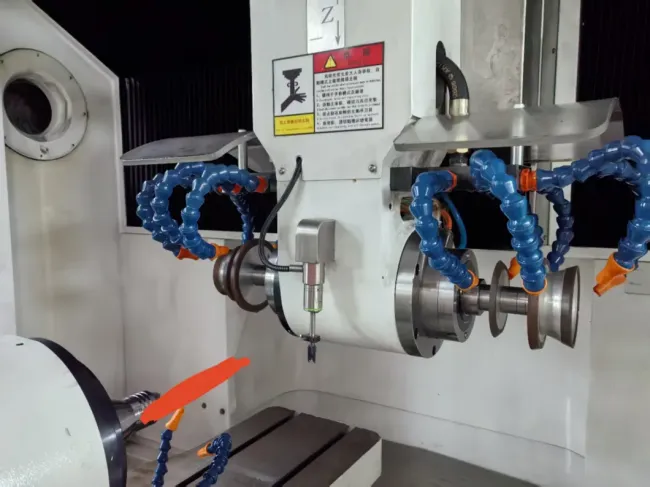

13	Spindle rated power	1 2 KW; torque 2 0 NM; ( doubl e extension spindle)
14	Speed of main shaft	0 - 8000 RPM/min
15	Number ofgrind wheels installed	6-8 pieces
16	Maximum wheel diameter	Î¦150mm
17	Diameter of Grinding Wheel Rod	HSK5 0 E
18	Taper ofworkpiece shank	BT50
19	Maximum grinding length	Blade length: 1 6 0 mm; total Length: 2 0 0 mm
20	Minimum handle diameter	Î¦3mm
21	Maximum workpiece shank diameter	Î¦20mm
22	Maximum l ength of workpiece	Î¦200mm
23	Working pressure	0 6~0 8 MPa

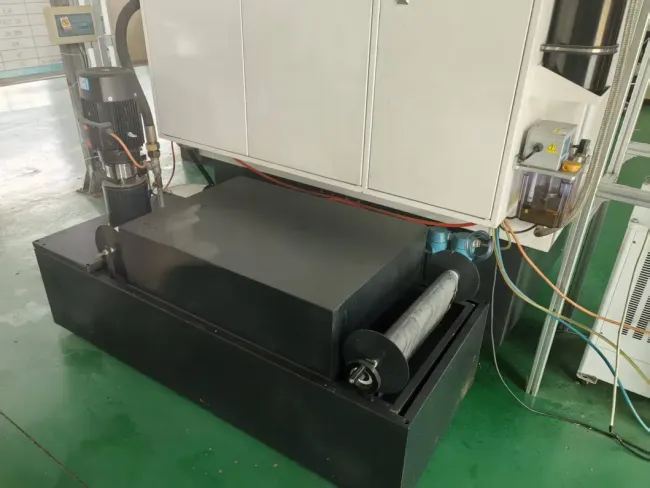

24	Cooling fluid flow	85L/min
25	Total rated power of equipment	22 kw ( three- phase AC3 8 0 V)
26	Total equipment weight	5000 kg
