BSC – LED Screen Panels
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
BSC – LED Screen Panels

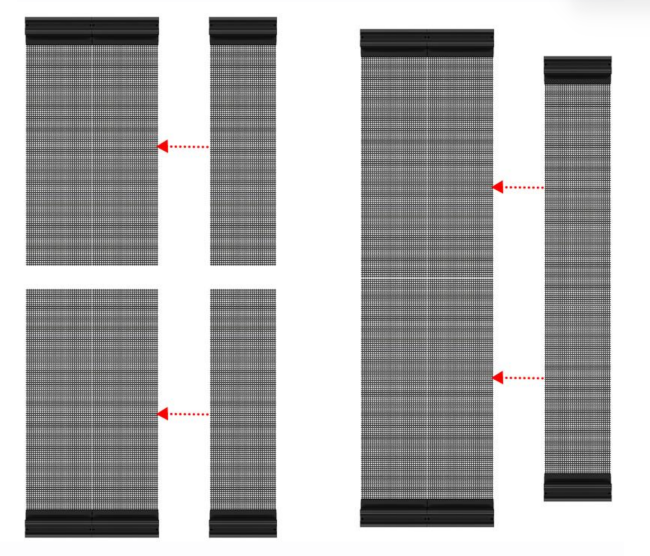

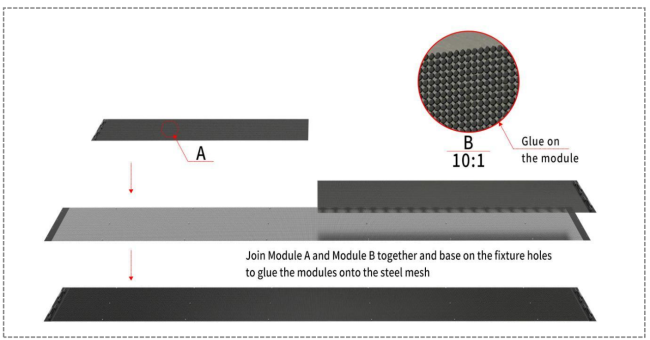

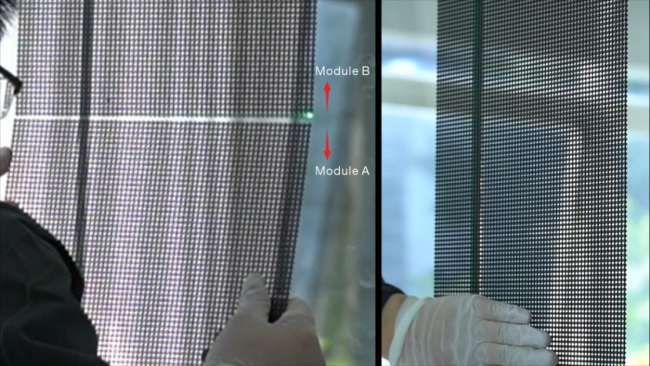

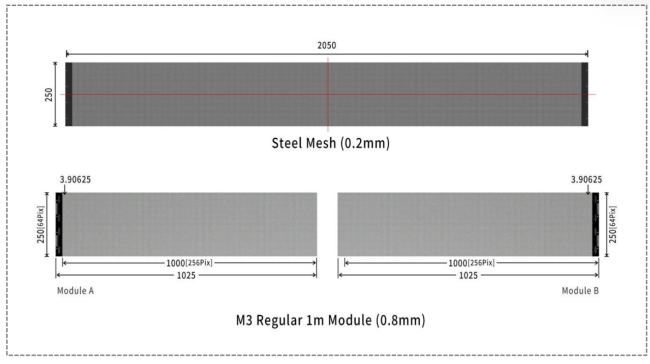

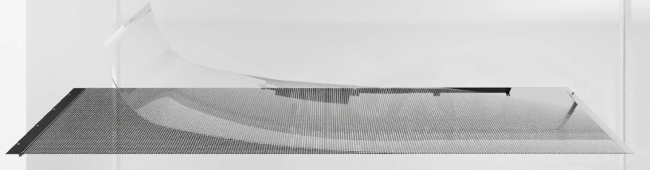

The module weighs only 6 kg/m² with a slim 1.8 mm profile. Standard modules support flexible size combinations for seamless splicing and are the preferred choice for direct glass mounting, suitable for both single-sided and double-sided display applications.
LED Screen Panael for clothes store
LED Screen Panael for company reception
LED Screen Panael for POP MART
LED Screen Panale for company lobby
LED screen panael aging test in manufacutre
Product Attributes
| Parameter | 125x1000/125x1175/125x1475 | 250x1000/250x1172250x1469/250x1969 | 250x1000/250x1175/250x1475/250x1975 |
| Display Dimension (mm) (w*h) |
125x1000/125x1175/125x1475 | 250x1000/250x1172/250x1469/250x1969 | 250x1000/250x1175/250x1475/250x1975 |
| Profile Dimension (mm) (w*h) |
125x1025/125x1200/125x1500 | 250x1025/250x1197/250x1500/250x2000 | 250x1025/250x1200/250x1500/250x2000 |
| Resolution (dot) (w*h) |
50x400/50x470/50x590 | 64x256/64x300/64x376/64x504 | 40x160/40x188/40x236/40x316 |
| LED Specification | 1515 | 2121 | 2121 |
| Pixel Pitch (mm) (horizontal / vertical) |
2.5-2.5 | 3.91-3.91 | 6.25-6.25 |
| Pixel Density (dot/m²) |
160000 | 65536 | 25600 |
| Transparency Rate | 85% | 92% | 95% |
| Brightness (cd/m²) |
≥1000(Black Body) | ≥4500/≥4500≥3000≥2550(White Body) | ≥5000/≥5000/≥4500/≥3000 |
| Maximum Power Consumption (w/m²) |
608 | 684/684 /526 /520 (Black Body) | 552/552/502/440 |
| Average Power Consumption (w/m²) |
244 | 274 /274 211 /211 (Black Body) | 221/221/201/176 |
| Weight (kg/pcs) |
0.2/0.25/0.3 | 0.4/0.5/0.6/0/8 | 0.4/0/5/0/6/1 |
| Power Box Weight (kg/pcs) |
Type B and D is 1.1kg | Type B and D is 1.1kg | Type B and D is 1.1kg |
| Color Temperature (K) |
3000~10000 | 3000~10000 | 3000~10000 |
| Scanning Mode | Light & Driver Integrated, Static Driving | Light & Driver Integrated, Static Driving | Light & Driver Integrated, Static Driving |
| Frame Rate (Hz) |
60~120 | 60~120 | 60~120 |
| Lifespan | ≥100,000.00 hours | ≥100,000.00 hours | ≥100,000.00 hours |
| Pixel Configuration | 16bit | 16bit | 16bit |
| Input Voltage | AC100~240V 50/60 Hz | AC100~240V 50/60 Hz | AC100~240V 50/60 Hz |
| Working Voltage for Module | DC 4.2V ± 0.2V | DC 4.2V ± 0.2V | DC 4.2V ± 0.2V |
| Working Temperature | Temperature -20℃~50℃ | Temperature -20℃~50℃ | Temperature -20℃~50℃ |
| Working Humidity | Humidity: 20%~85% (Without Condensation) | Humidity: 20%~85% (Without Condensation) | Humidity: 20%~85% (Without Condensation) |
| Storage Temperature | Temperature -20℃~60℃ | Temperature -20℃~60℃ | Temperature -20℃~60℃ |
| Storage Humidity | Humidity: 10%~85% (Without Condensation) | Humidity: 10%~85% (Without Condensation) | Humidity: 10%~85% (Without Condensation) |
| Protection Degree | IP 20 | IP 20 | IP 20 |

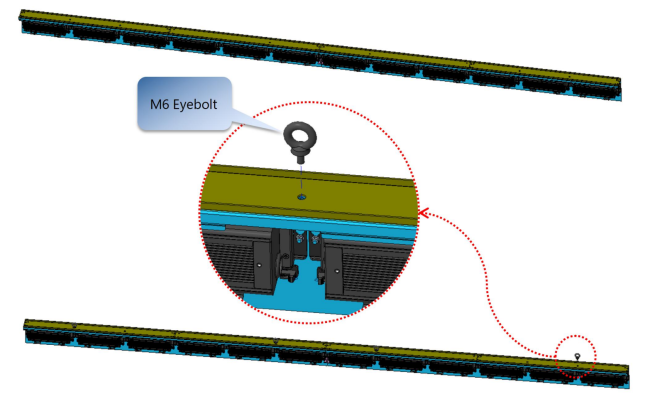

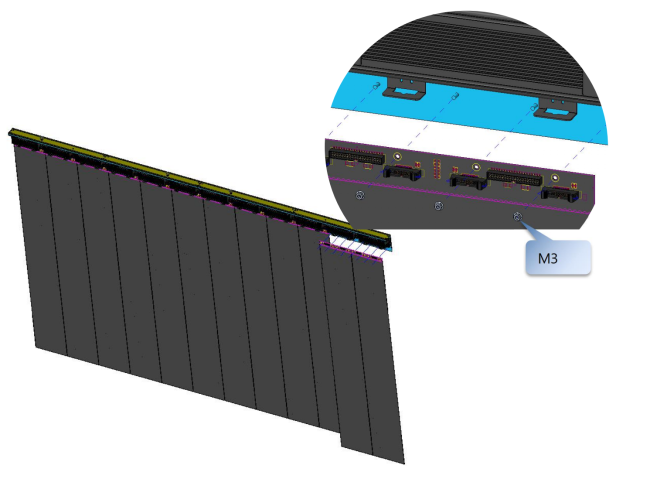

| Installation Method | PCB Side Glued | LED Side Glued, PCB Side Glued, Hanging Up | LED Side Glued, PCB Side Glued, Hanging Up |
| Installation Environment | Indoor | Indoor | Indoor |
