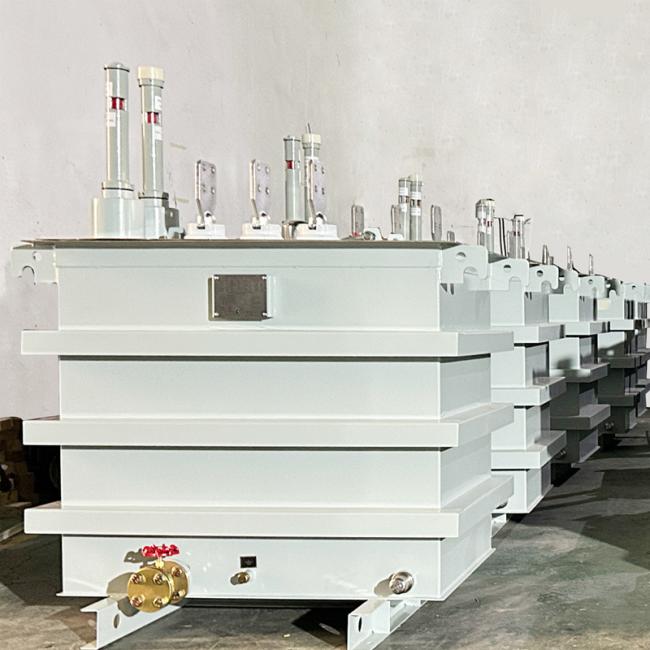

Ss304 Distribution Transformer Oil Type 167KVA 4160V Oil Immersed Transformer
Leilang Electric, a leading manufacturer of industrial power distribution equipment with over 15 years of expertise in transformer technology, presents our premium 167KVA single-phase submersible oil-immersed distribution transformer engineered for underground vault installation. This transformer is purpose-built to deliver reliable power in harsh underground environments, featuring a primary voltage of 4160GrdY/2400V and a secondary voltage of 240/120V (L-N) at 60Hz frequency.
- 304 Stainless Steel Construction: The entire tank, housing, and hardware are fabricated from marine-grade 304 stainless steel, providing exceptional resistance to soil corrosion, moisture, and floodwater damage. The fully sealed welded structure minimizes sealing points, ensuring safe operation even during extended flooding conditions.
- DOE 2016 Energy Efficiency Certified: Independently tested and verified to meet or exceed U.S. Department of Energy 2016 energy efficiency standards, achieving an impressive 99.33% full-load efficiency. This translates to significant long-term energy savings and reduced operational costs for utility and commercial applications.
- ANSI/IEEE Industry Compliant: Manufactured in strict accordance with ANSI/IEEE C57.12.00 and C57.12.20 standards, ensuring compatibility with North American power distribution systems and adherence to global safety regulations.
Equipped with high-conductivity copper windings, Class E insulation (120°C/248°F), and ONAN self-cooling technology, this transformer delivers stable performance with a 65°C temperature rise and a low 55 dBA sound level. It features a 2.75% impedance rating, K-1 harmonic mitigation capability, and a 30KV secondary BIL rating for enhanced electrical protection.
All Leilang Electric transformers undergo rigorous quality control processes, including performance testing at every production stage and comprehensive final inspection. We hold CE and ISO 9001 certifications, demonstrating our commitment to manufacturing excellence. We support sample orders for quality verification, offer full OEM/ODM customization services, and maintain a monthly production capacity of 1,000 units to meet project timelines. All products come with a 24-month warranty from the bill of lading date and lifetime technical support from our team of certified electrical engineers.
| Parameter | Specification |
|---|---|
| Rated Capacity | 167 KVA |
| Phase | Single Phase |
| Primary Voltage | 4160GrdY/2400V |
| Secondary Voltage | 240/120V (L-N) |
| Frequency | 60 Hz |
| Impedance | 2.75% |
| Temperature Rise | 65°C |
| Insulation Rating | Class E (120°C/248°F) |
| Cooling Class | ONAN (Self-Cooled) |
| Winding Material | 100% Copper |
| Tank/Housing/Hardware | 304 Stainless Steel |
| K-Factor Rating | K-1 (Standard) |
| Secondary BIL | 30 KV |
| Ambient Temperature Rating | 40°C |
| Sound Level | 55 dBA |
| Dimensions (W×D×H) | 39" × 49" × 50" |
| Dry Weight | 823.95 lb |
| Total Weight (Liquid Filled) | 1690.5 lb |
| Efficiency (Full Load) | 99.33% |
| Standards Compliance | DOE 2016, ANSI/IEEE, CE, ISO 9001 |
| Single phase Pole Mounted transformer | ||||||
| Rated Capacity | High Voltage |
Low Voltage |
Connection Symbol | Standard | Short-circuit impedance | Efficiency |
| (kVA) | (v) | (v) | (%) | (%) | ||
| 10 | 34500/19920V 13800/7957V 13200/7620V 12470/7200V or others |
120-240V 240-480V 347V 600V |
II0,II6 | IEEE/ANSI/ DOE | 1.8-4% | 98.7 |
| 15 | 98.82 | |||||
| 25 | 98.95 | |||||
| 37.5 | 99.05 | |||||
| 50 | 99.11 | |||||
| 75 | 99.19 | |||||
| 100 | 99.25 | |||||
| 167 | 99.33 | |||||
| 250 | 99.39 | |||||
| 333 | 99.43 | |||||
A: Our transformer features a fully sealed 304 stainless steel construction that resists corrosion from soil chemicals and floodwater. It is designed to operate safely in underground chambers subject to temporary or extended flooding, with all accessible components (terminals, fuses, arresters) operable from ground level.
A: DOE 2016 certification guarantees that our transformer meets the strictest U.S. energy efficiency requirements. With 99.33% full-load efficiency, it reduces energy losses by up to 30% compared to older non-compliant models, resulting in substantial annual energy cost savings and lower carbon emissions.
A: Yes, it is fully compliant with ANSI/IEEE C57.12.00 and C57.12.20 standards, the primary specifications for distribution transformers in North America. It features standard load break bushings and a 4160V primary/240V secondary voltage configuration commonly used in U.S. and Canadian utility systems.
A: We maintain ISO 9001 certified manufacturing facilities. Each transformer undergoes 12+ quality checks during production, including winding resistance tests, insulation resistance tests, impedance tests, and full-load efficiency testing. All products are CE certified and come with a detailed test report.
A: We offer a comprehensive 24-month warranty from the bill of lading date. For any manufacturing defects, we provide free replacement parts and technical support. Our team of certified electrical engineers is available 24/7 to assist with installation, troubleshooting, and maintenance questions.
A: Yes, we provide full OEM/ODM customization services. We can modify voltage ratings, connection types, impedance values, and add special features such as remote monitoring capabilities. We also offer custom packaging and branding options. All customizations are reviewed and approved by our engineering team before production.
